This ready-to-use antenna reference board is designed for system designers integrating M24LR64-R EEPROM chips into RFID applications. It provides a stable platform featuring two M24LR64-R ICs operating in parallel and connected to an etched 13.56 MHz inductive antenna. The board facilitates the comprehensive evaluation of a 128 Kbit multibank memory configuration, making it an essential tool for prototype development and testing.
Page 1 Text Content

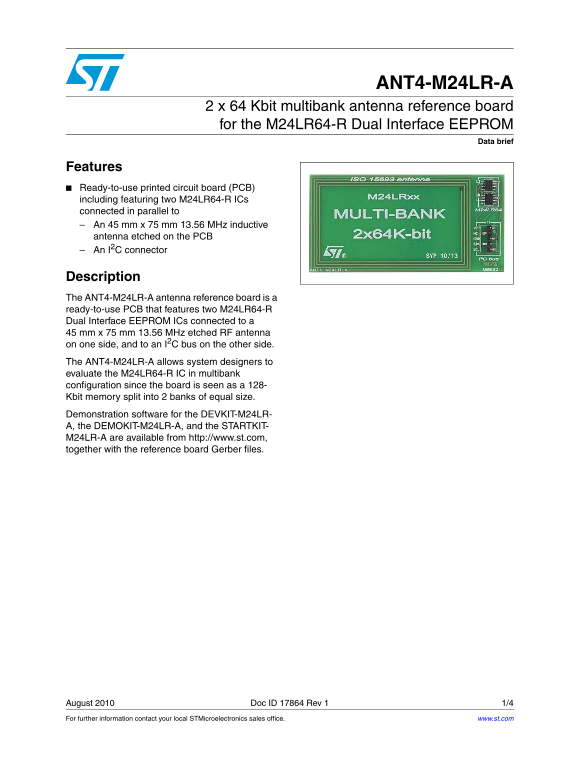

ANT4-M24LR-A
2 x 64 Kbit multibank antenna reference board for the M24LR64-R Dual Interface EEPROM
Data brief
Features Ready-to-use printed circuit board (PCB) including featuring two M24LR64-R ICs connected in parallel to An 45 mm x 75 mm 13.56 MHz inductive antenna etched on the PCB An I2C connector
Description The ANT4-M24LR-A antenna reference board is a ready-to-use PCB that features two M24LR64-R Dual Interface EEPROM ICs connected to a mm x 75 mm 13.56 MHz etched RF antenna on one side, and to an I2C bus on the other side. The ANT4-M24LR-A allows system designers to evaluate the M24LR64-R IC in multibank configuration since the board is seen as a 128- Kbit memory split into 2 banks of equal size. Demonstration software for the DEVKIT-M24LR- A, the DEMOKIT-M24LR-A, and the STARTKIT- M24LR-A are available from http://www.st.com, together with the reference board Gerber files.
August 2010 Doc ID 17864 Rev 1 1/4 For further information contact your local STMicroelectronics sales office. www.st.com
Page Summary Contents For Panasonic PT-EL592U User Guide
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 4 |
| File Size | 61.27 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical dimensions of the etched antenna?
The board features a 45 mm x 75 mm etched RF antenna operating at 13.56 MHz.
How is the memory capacity simulated on this reference board?
The two M24LR64-R ICs are connected in parallel, allowing system evaluation of a 128-Kbit memory split into 2 equal banks.
Where can users find the demonstration software and files for this setup?
Demonstration software and reference board Gerber files are available from http://www.st.com.
