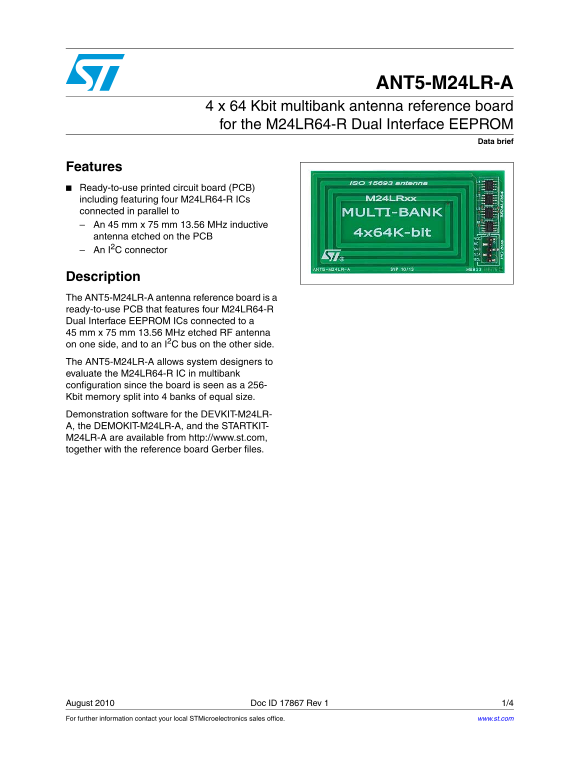

ANT5-M24LR-A
4 x 64 Kbit multibank antenna reference board for the M24LR64-R Dual Interface EEPROM
Data brief
Features Ready-to-use printed circuit board (PCB) including featuring four M24LR64-R ICs connected in parallel to An 45 mm x 75 mm 13.56 MHz inductive antenna etched on the PCB An I2C connector
Description The ANT5-M24LR-A antenna reference board is a ready-to-use PCB that features four M24LR64-R Dual Interface EEPROM ICs connected to a mm x 75 mm 13.56 MHz etched RF antenna on one side, and to an I2C bus on the other side. The ANT5-M24LR-A allows system designers to evaluate the M24LR64-R IC in multibank configuration since the board is seen as a 256- Kbit memory split into 4 banks of equal size. Demonstration software for the DEVKIT-M24LR- A, the DEMOKIT-M24LR-A, and the STARTKIT- M24LR-A are available from http://www.st.com, together with the reference board Gerber files.
August 2010 Doc ID 17867 Rev 1 1/4 For further information contact your local STMicroelectronics sales office. www.st.com
