The STEVAL-MKI097V1 is an essential adapter board designed for engineers rapidly prototyping and evaluating devices within the LPR430AL product family. Featuring a complete LPR430AL pinout in a standard DIL 24 socket, this board offers a straightforward solution for direct device evaluation in your application. Its primary benefit is compatibility; the full pinout ensures effortless switching between different sensors and adapter boards without costly redesigns. The included manual details the functionality and schematic diagram, making it an ideal resource for hands-on development and system integration testing.
Page 1 Text Content

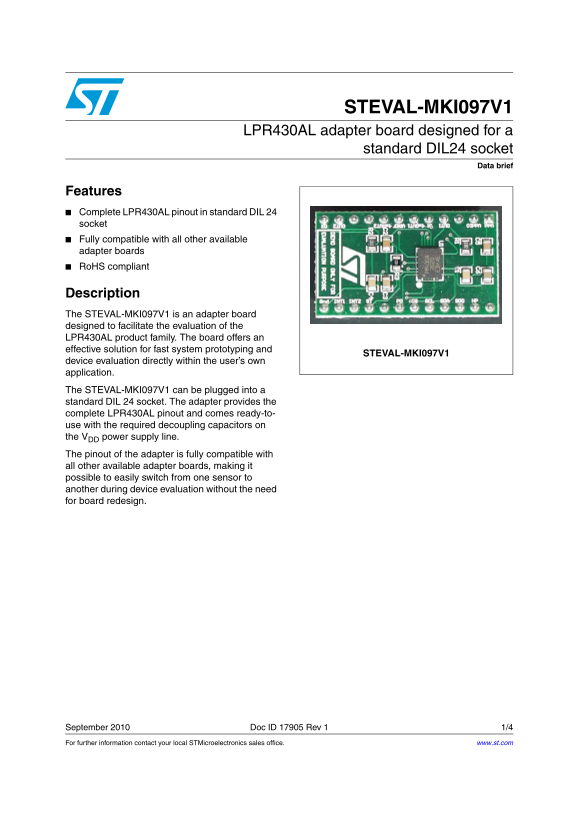

STEVAL-MKI097V1
LPR430AL adapter board designed for a
standard DIL24 socket
Data brief
Features Complete LPR430AL pinout in standard DIL 24 socket Fully compatible with all other available adapter boards Ro HS compliant
Description The STEVAL-MKI097V1 is an adapter board designed to facilitate the evaluation of the LPR430AL product family. The board offers an effective solution for fast system prototyping and
STEVAL-MKI097V1
device evaluation directly within the user’s own application. The STEVAL-MKI097V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LPR430AL pinout and comes ready-to- use with the required decoupling capacitors on the VDD power supply line.
The pinout of the adapter is fully compatible with all other available adapter boards, making it possible to easily switch from one sensor to another during device evaluation without the need for board redesign.
September 2010 Doc ID 17905 Rev 1 1/4 For further information contact your local STMicroelectronics sales office. www.st.com
Page Summary Contents For Panasonic PT-DZ6710U PT-DZ6700U PT-DW6300U PT-D6000U User Manual
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 4 |
| File Size | 84.14 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the purpose of the STEVAL-MKI097V1 board?
It is an adapter designed to evaluate the LPR430AL product family and allow for fast system prototyping.
How does the board accommodate different components during development?
Its pinout is fully compatible with all other available adapter boards, allowing easy switching between sensors without redesigning the main PCB.
Does this adapter require external power protection?
The adapter comes ready-to-use and includes required decoupling capacitors on the V power supply line.
