Operate your Panasonic LCD Projector flawlessly with this comprehensive user manual. Designed for new owners, it provides step-by-step instructions on setup, operation, and advanced features to ensure optimal picture quality every time. The guide covers necessary safety precautions, power requirements, controls (such as keystone adjustment and aspect ratio), and ideal usage scenarios for both home and business environments. Get reliable performance and expert guidance from this essential resource.

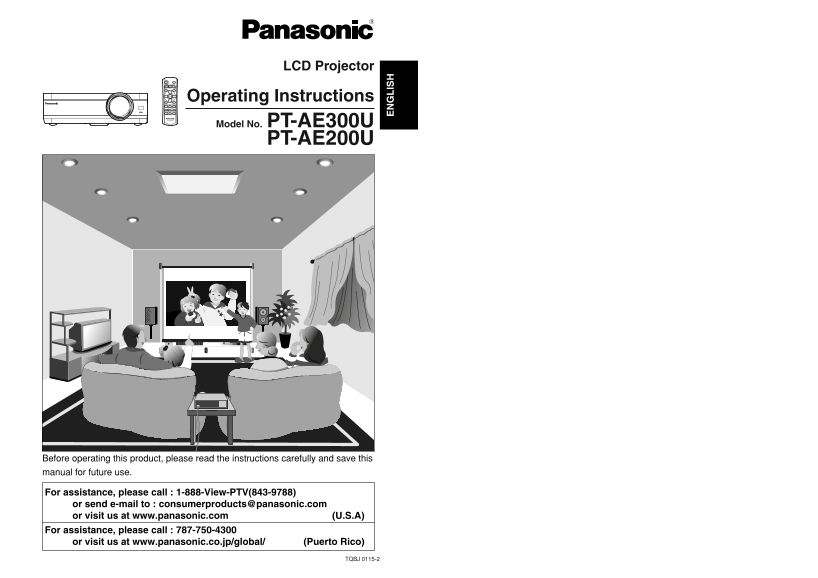

Page 1 Text Content
LCD Projector
POWER
LIGHT
INPUT
VIDEO COMPONENT CMPNT PC
MENU KEYSTONE
ENTER
FREEZENORMAL Operating Instructions ASPECT PICTURE MODE MEMORY USER
MUTE VOLUME
SD TIMEMENU
LCD PROJECTOR
Model No. PT-AE300U PT-AE200U
Before operating this product, please read the instructions carefully and save this manual for future use.
For assistance, please call : 1-888-View-PTV(843-9788) or send e-mail to : [email protected] or visit us at www.panasonic.com (U.S.A) For assistance, please call : 787-750-4300 or visit us at www.panasonic.co.jp/global/ (Puerto Rico)
TQBJ 0115-2
Page Summary Contents For Panasonic PT-AE300U User Guide
Page 1
LCD Projector POWER LIGHT INPUT VIDEO COMPONENT CMPNT PC MENU KEYSTONE ENTER FREEZENORMAL Operating Instructions ASPECT PICTURE MODE MEMORY USER MUTE VOLUME SD TIMEMENU LCD PROJECTOR Model No. PT-AE30...
Page 2
Dear Panasonic Customer: CAUTION: This equipment is equipped with a three-pin grounding-type power This instruction booklet provides all the necessary operating information that plug. Do not remove th...
Page 3
Contents Precautions with regard to safety Preparation Adjusting the position .....................38 WARNING HORIZONTAL POSITION ..............38 IMPORTANT SAFETY NOTICE..........2 If a problem occur...
Page 4
If not using the projector for an extended period of time, pull the power BHeated air comes out of the air outlet port. Do not bring your hands or cord plug out from the wall outlet. face, or objects ...
Page 5
Accessories Use only the specified battery. Check that all of the accessories shown below have been included with your If an incorrect battery is used, it may explode or leak, and fire, injury or proj...
Page 6
About the SD memory card slot Precautions on handling Make sure that there are no foreign objects inside the slot when inserting an optional SD memory card. Failure to observe it may damage the card a...
Page 7
Location and function of each part Projector <Top, right and front> Projector <Back and bottom> #Speaker -MAIN POWER switch #Air outlet port a small noise as it operates. (pages 22 and 23)...
Page 8
+KEYSTONE buttons 4SD button <Projector control panel and remote control unit> (pages 28 and 29) (page 43) This button is used to correct This button is to select the SD keystone distortion of t...
Page 9
<Connector panel> Using the remote control unit <PT-AE300U> Operating range #Open the cover. <PT-AE200U> Insert the batteries so that the polarities are correct, and then close the c...
Page 10
Connections Example of connecting to equipment compatible with YPBPR(CBCR) signals Notes on connections BRead the instruction manual for each system component carefully before DVD player connecting it...
Page 11
Example of connecting to computer Setting-up Projection methods Computer Computer The projector can be set up so that any one of the following four projection methods can be used. Select whichever pro...
Page 12
Starting to use )Turn the focus/zoom ring to adjust the projected image focus and size. Zoom Turning on the power Focus Please ensure that all preparations have been completed before turning on the po...
Page 13
PICTURE menu (page 34) On-screen menus When an S-VIDEO/VIDEO signal When a YPBPR signal is being is being input input or SD CARD is selected Menu screens PICTURE PICTURE The various settings and adj...
Page 14
Menu operation guide &Press the F or G buttons to Returning a setting to BWhen an individual adjustment select an item, and then press screen is being displayed #Press the MENU button. the factory...
Page 15
Correcting keystone distortion When either the projector or the screen is tilted, the keystone distortion will affect the image. You can correct the image proportions by the following procedure. For P...
Page 16
Setting the ASPECT ASPECT Input signal Projected Image 4:3 4:3 Input signal 4:3 This projector allows you to change the aspect ratio to match the type of input signal. Pressing the ASPECT button will ...
Page 17
Selecting the picture mode Using the shutter function You can select the appropriate picture mode for the type of projected image The shutter function can be used to momentarily turn off the picture a...
Page 18
Adjusting the picture TINT Color Hue Setting (color (NTSC/NTSC 4.43/YPBPR /SD temperature) When a PC/DVI signal is being input CARD only) Use the F and G buttons to select an COLOR TEMP. -2 This adjus...
Page 19
When adjusting the black or neutral Projecting s RGB- � MEMORY SAVE� color area of the picture, adjust it MEMORY 1 MEMORY 2 compatible pictures using BRIGHT R or BRIGHT B. MEMORY 3 s RGB is an int...
Page 20
ASPECT matched to the input signal and are Adjusting the position automatically adjusted. Refer page 30. When the input signal is from a VERTICAL POSITION NOTE: AUTO SETUP PC, first select AUTO SETUP ...
Page 21
4:3 H-POS elevations (above 1 400 m), set SD memory card FAN CONTROL to “HIGH”. (4:3 aspect mode only) 4:3 H-POS CENTER What is the SD memory card (option)? LAMP POWER The SD memory card is a semicond...
Page 22
Inserting and removing the SD memory card About the SD menu The still image data and moving image data that is stored on SD memory Inserting the SD Removing the SD cards can be played back using the S...
Page 23
Playing back still images Slide playback of still images The PICTURE option lets you play back still image data. “SLIDE SHOW” lets you play back still images in a certain order using one of three avai...
Page 24
SETTING Editing user settings %Use the F, G, I and H buttons AUTO MODE You can use the user setting edit to move the cursor (|) to the The still images are played back screen that is displayed when yo...
Page 25
SETUP will be played back at the interval set Playing back moving images This describes how to set the playback for automatic playback on page 46. interval and angle of rotation for still BThe setting...
Page 26
Error displays Indicators Errors may be displayed while using an SD memory card. If an error occurs, There are two indicators on the control panel of the projector which give check the following table...
Page 27
LAMP indicator Cleaning and replacing the air filter If the air filter becomes clogged with dust, the internal temperature of the Indicator Illuminated (red) Flashing (red) projector will rise, the TE...
Page 28
On-screen display Lamp indicator warning Replacing the lamp unit light NOTE: If you need the lamp replacement, please purchase the lamp unit from our customer service. Displayed for 30 Lamp unit produ...
Page 29
Install the lamp unit cover, and +Press the ENTER button to Before calling for service then use a Phillips screwdriver display the OPTION screen, to securely tighten the lamp and then use the F and G ...
Page 30
Problem Possible cause Specifications Remote control unit BThe battery may be weak. Power supply: 100 V–240 V ~, 50 Hz/60 Hz does not operate. BThe battery may not be inserted correctly. (Refer to Pow...
Page 31
plus/minus polarity compatible Appendix COMPONENT IN: Y: 1.0 V [p-p], 75 Ω PB,PR (CB,CR): 0.7 V [p-p], 75 Ω List of compatible signals DVI-D IN (PT-AE300U only): Single-line, DVI-D, 24-pin Scanning Pi...
Page 32
Connector pin wiring BThe pin assignments on the DVI-D input connector are as follows BThe pin layout and signal names for the S2 VIDEO input connector are (interface with TMDS connector on a personal...
Page 33
DCF standard Projection dimensions calculation methods The following methods will allow you to calculate dimensions such as screen This projector can only play back image files which comply with the D...
Page 34
Trademark acknowledgements BThe SD logo is a trademark. BVGA and XGA are trademarks of International Business Machines Corporation. BMacintosh is a registered trademark of Apple Computer, Inc. BS-VGA ...
