TCI KLR/KDR line reactor installation and safety manual for VFD output applications. Covers safety warnings, installation guidelines, wiring, and performance considerations for output-side reactors. Recommends 1.5% impedance reactors, mounting near VFD terminals, and sizing by motor full load amps. Includes NEC compliance. For electricians and automation engineers.

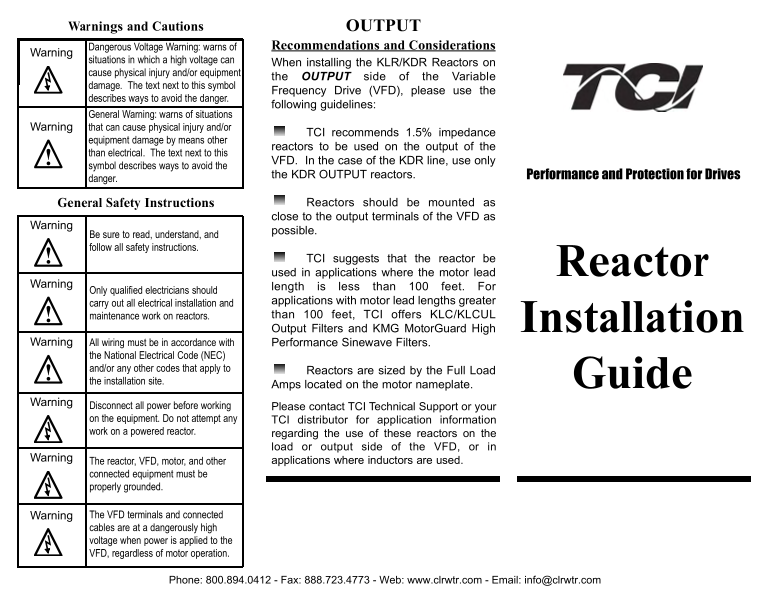

Page 1 Text Content
Warnings and Cautions OUTPUT
Dangerous Voltage Warning: warns of Recommendations and Considerations
Warning
situations in which a high voltage can
When installing the KLR/KDR Reactors on
cause physical injury and/or equipment
the OUTPUT side of the Variable
damage. The text next to this symbol
Frequency Drive (VFD), please use the
describes ways to avoid the danger.
following guidelines:
General Warning: warns of situations
Warning that can cause physical injury and/or
TCI recommends 1.5% impedance
equipment damage by means other
reactors to be used on the output of the
than electrical. The text next to this
VFD. In the case of the KDR line, use only
symbol describes ways to avoid the
the KDR OUTPUT reactors. Performance and Protection for Drives
danger.
General Safety Instructions Reactors should be mounted as close to the output terminals of the VFD as
Warning
possible.
Be sure to read, understand, and follow all safety instructions.
TCI suggests that the reactor be
used in applications where the motor lead Reactor
Warning length is less than 100 feet. For
Only qualified electricians should
carry out all electrical installation and applications with motor lead lengths greater maintenance work on reactors. than 100 feet, TCI offers KLC/KLCUL
Output Filters and KMG Motor Guard High Installation
Warning All wiring must be in accordance with Performance Sinewave Filters.
the National Electrical Code (NEC) and/or any other codes that apply to Reactors are sized by the Full Load the installation site. Guide
Amps located on the motor nameplate.
Warning
Disconnect all power before working Please contact TCI Technical Support or your on the equipment. Do not attempt any TCI distributor for application information work on a powered reactor. regarding the use of these reactors on the
load or output side of the VFD, or in
Warning applications where inductors are used.
The reactor, VFD, motor, and other connected equipment must be properly grounded.
Warning The VFD terminals and connected cables are at a dangerously high voltage when power is applied to the VFD, regardless of motor operation.
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: [email protected]
Page Summary Contents For Panasonic PT-D5600U PT-D5600UL PT-DW5000U PT-DW5000UL User Manual (1)
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 2 |
| File Size | 84.65 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Where should output KDR reactors be mounted?
Mount them as close to the output terminals of the VFD as possible.
What is the max ambient temperature for these reactors?
The maximum ambient temperature is 40° C.
Who should perform electrical work on reactors?
Only qualified electricians should carry out all electrical installation and maintenance work.
What impedance does TCI recommend for VFD output reactors?
TCI recommends 1.5% impedance reactors to be used on the output of the VFD.
