The KX-TGA290 is an expandable cordless handset designed as an accessory for high-performance communication with Panasonic's base unit (KX-TG2970). This comprehensive manual guides users through every stage of setup, covering battery installation, charging procedures, and essential system registration. It provides detailed instructions for hands-free operation using optional headsets and includes tips on mounting the charger unit for a seamless home or office setup. Ideal for existing users seeking reliable extension connectivity and modern communication features.

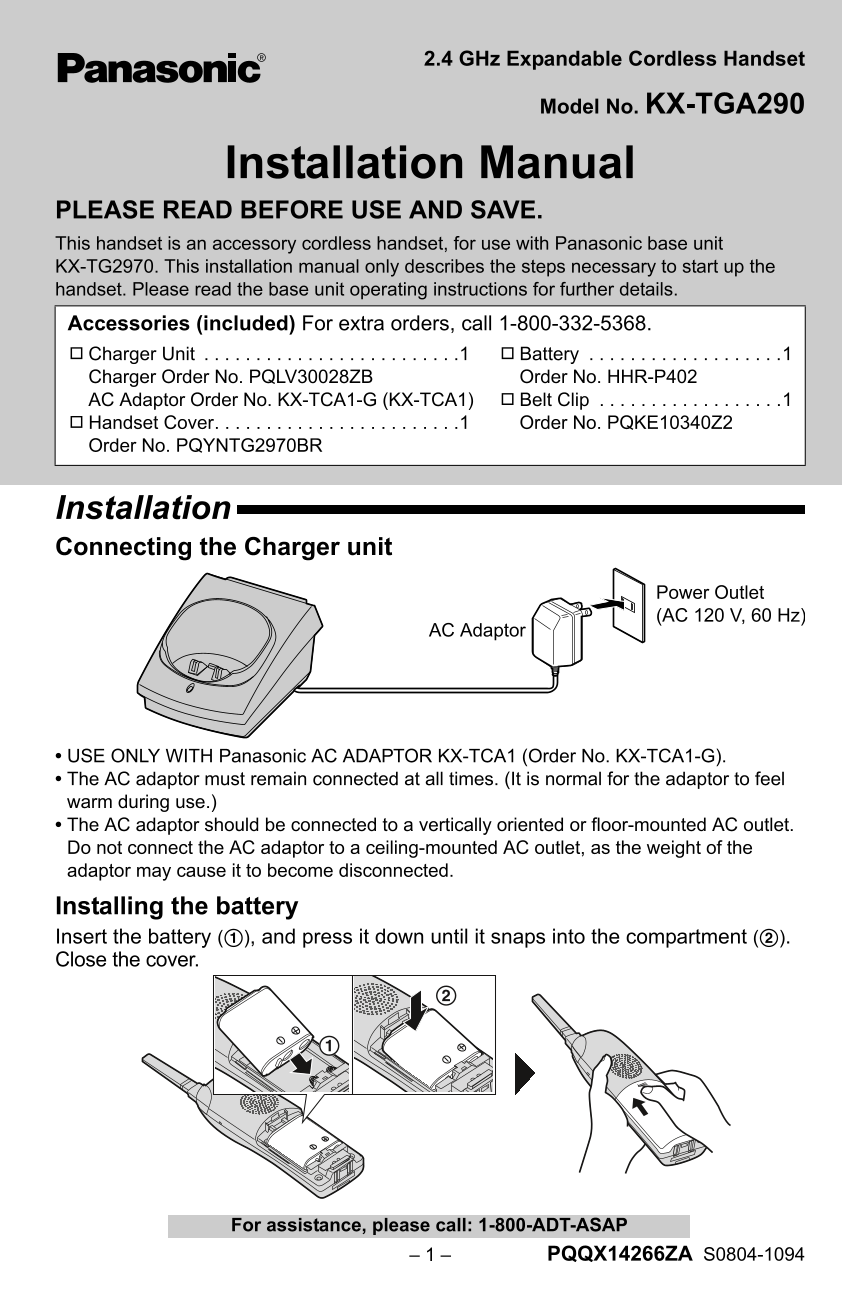

Page 1 Text Content
TGA290_OI_ENGSPA_ZA.fm Page 1 Friday, October 8, 2004 10:01 AM
2.4 GHz Expandable Cordless Handset
Model No. KX-TGA290
Installation Manual PLEASE READ BEFORE USE AND SAVE.
This handset is an accessory cordless handset, for use with Panasonic base unit KX-TG2970. This installation manual only describes the steps necessary to start up the handset. Please read the base unit operating instructions for further details. Accessories (included) For extra orders, call 1-800-332-5368. ACharger Unit . . . . . . . . . . . . . . . . . . . . . . . . .1 ABattery . . . . . . . . . . . . . . . . . . .1 Charger Order No. PQLV30028ZB Order No. HHR-P402
AC Adaptor Order No. KX-TCA1-G (KX-TCA1) ABelt Clip . . . . . . . . . . . . . . . . . .1
AHandset Cover. . . . . . . . . . . . . . . . . . . . . . . .1 Order No. PQKE10340Z2 Order No. PQYNTG2970BR
Installation Connecting the Charger unit
Power Outlet (AC 120 V, 60 Hz)
AC Adaptor
CHARGE
USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. KX-TCA1-G). The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected. Installing the battery Insert the battery (1), and press it down until it snaps into the compartment (2). Close the cover.
For assistance, please call: 1-800-ADT-ASAP
– 1 – PQQX14266ZA S0804-1094
Page Summary Contents For Panasonic KX-TGA290 Installation Manual
Manual Details
| Brand | Panasonic |
|---|---|
| Pages | 12 |
| File Size | 2.12 MB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Where should I connect the AC adaptor for safe operation?
It must be connected to a vertically oriented or floor-mounted outlet, never a ceiling-mounted one due to potential weight issues.
How long does the battery last if I'm not making calls?
In standby mode, you can expect the handset to maintain operation for up to 14 days on a full charge.
What is recommended for keeping charging contacts clean?
Clean both the charger and the cordless handset contacts with a soft, dry cloth once a month, or more often if exposed to dust or grease.
Which headsets are compatible with this cordless handset?
You must use one of the specified Panasonic models: KX-TCA60, KX-TCA86, KX-TCA88, etc.
