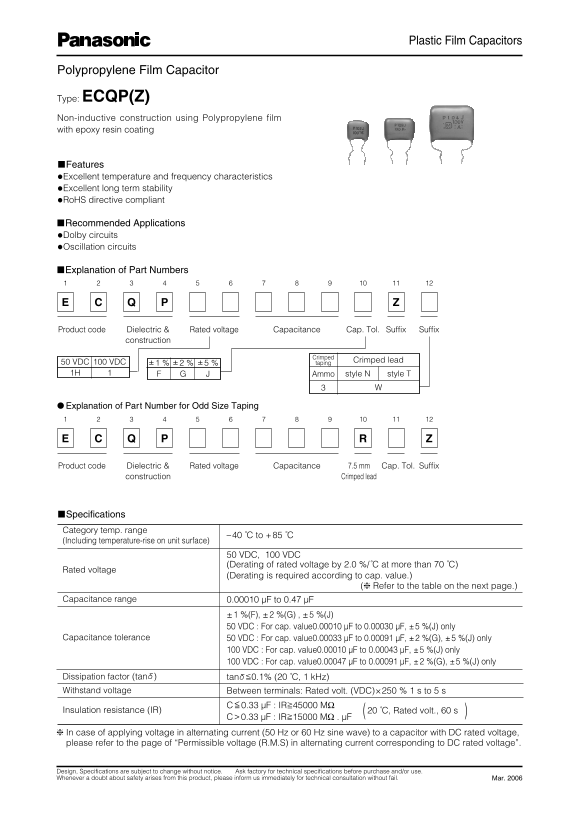

Page 1 Text Content
Plastic Film Capacitors
Polypropylene Film Capacitor
Type: ECQP(Z) Non-inductive construction using Polypropylene film with epoxy resin coating
Features •Excellent temperature and frequency characteristics •Excellent long term stability •Ro HS directive compliant Recommended Applications •Dolby circuits •Oscillation circuits Explanation of Part Numbers
Product code Dielectric & Rated voltage Capacitance Cap. Tol. Suffix Suffix
construction
Crimped
Crimped lead
50 VDC 100 VDC ±1 % ±2 % ±5 % taping 1H Ammo style N style T
Explanation of Part Number for Odd Size Taping
Product code Dielectric & Rated voltage Capacitance 7.5 mm Cap. Tol. Suffix
construction Crimped lead
Specifications Category temp. range
–40 ˚C to +85 ˚C
(Including temperature-rise on unit surface)
50 VDC, 100 VDC (Derating of rated voltage by 2.0 %/˚C at more than 70 ˚C)
Rated voltage
(Derating is required according to cap. value.)
(❈ Refer to the table on the next page.)
Capacitance range 0.00010 µF to 0.47 µF
±1 %(F), ±2 %(G) , ±5 %(J) 50 VDC : For cap. value0.00010 µF to 0.00030 µF, ±5 %(J) only
Capacitance tolerance 50 VDC : For cap. value0.00033 µF to 0.00091 µF, ±2 %(G), ±5 %(J) only
100 VDC : For cap. value0.00010 µF to 0.00043 µF, ±5 %(J) only 100 VDC : For cap. value0.00047 µF to 0.00091 µF, ±2 %(G), ±5 %(J) only Dissipation factor (tan <=0.1% tan (20 ˚C, 1 k Hz)
Withstand voltage Between terminals: Rated volt. (VDC)✕ 250 % 1 s to 5 s
C<=0.33 µF : IR>=45000 MΩ
Insulation resistance (IR) 20 ˚C, Rated volt., 60 s(
C>0.33 µF : IR>=15000 MΩ . µF
❈ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage, please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail. Mar. 2006
