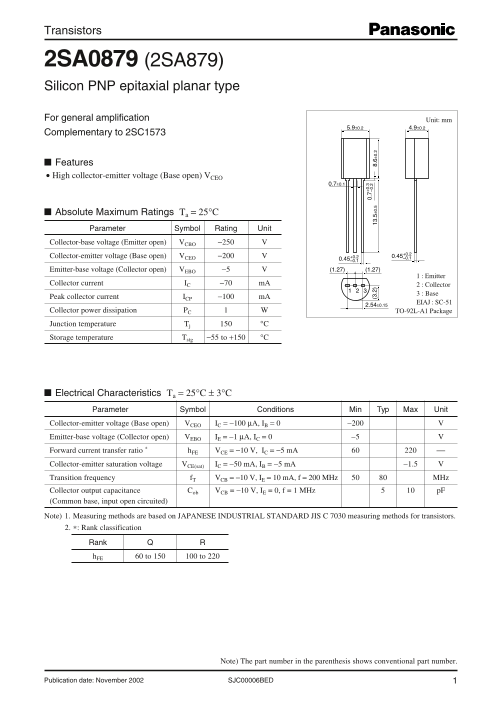

Page 1 Text Content
Transistors
2SA0879 (2SA879) Silicon PNP epitaxial planar type For general amplification Unit: mm
Complementary to 2SC1573
Features High collector-emitter voltage (Base open) VCEO
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage (Emitter open) VCBO −250
Collector-emitter voltage (Base open) VCEO −200 0.45+0.2 –0.1
Emitter-base voltage (Collector open) VEBO −5 (1.27)(1.27)
1 : Emitter
Collector current IC −70 m A 2 : Collector
3 : Base
Peak collector current ICP −100 m A
EIAJ : SC-51
Collector power dissipation PC TO-92L-A1 Package Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C
Electrical Characteristics Ta = 25°C ± 3°C Parameter Symbol Conditions Min Typ Max Unit Collector-emitter voltage (Base open) VCEO IC = −100 µA, IB = 0 −200 Emitter-base voltage (Collector open) VEBO IE = −1 µA, IC = 0 −5 Forward current transfer ratio * h FE VCE = −10 V, IC = −5 m A Collector-emitter saturation voltage VCE(sat) IC = −50 m A, IB = −5 m A −1.5 Transition frequency f T VCB = −10 V, IE = 10 m A, f = 200 MHz MHz Collector output capacitance Cob VCB = −10 V, IE = 0, f = 1 MHz p F (Common base, input open circuited) Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors. 2. Rank classification
Rank h FE 60 to 150 100 to 220
Note) The part number in the parenthesis shows conventional part number.
SJC00006BED 1Publication date: November 2002
