Heavy Duty Cassette/Weather Band Receiver
CQ-2130U
BANDPWR PRG
CQ-2130U ALM Operating Instructions CLK
VOL MUTE
PUSH TUNE SEL SEEK
BAL/FADER BASS/TREB SCAN
Please read these instructions carefully before using this product and keep this manual for future reference.
Page Summary Contents For Panasonic CQ2130 User Guide
Page 1

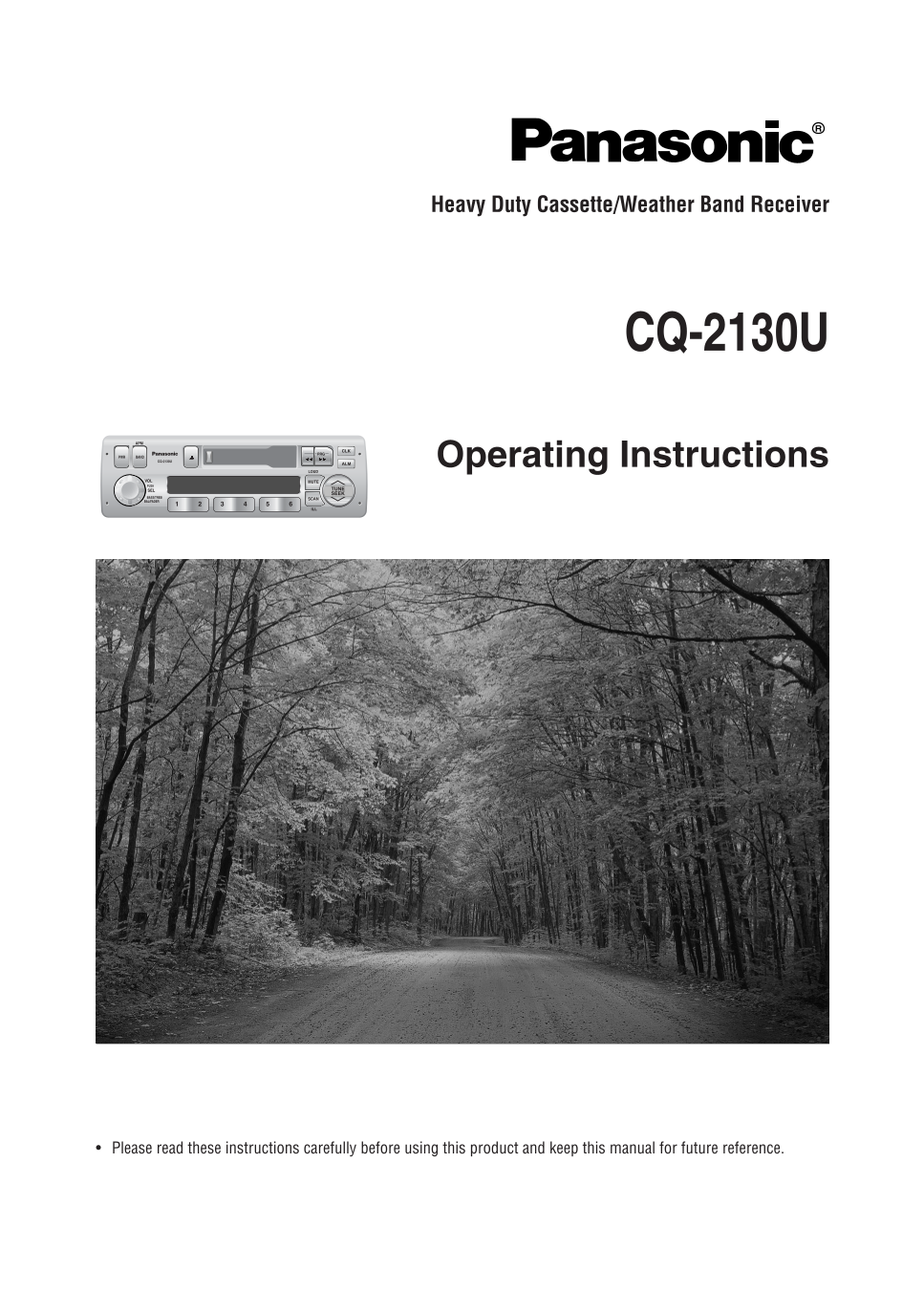

Heavy Duty Cassette/Weather Band Receiver CQ-2130U BANDPWR PRG CQ-2130U ALM Operating Instructions CLK VOL MUTE PUSH TUNE SEL SEEK BAL/FADER BASS/TREB SCAN Please read these instructions carefully bef...
Page 2
Safety Information The following applies only in the U.S.A. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC Part 15 of the FCC Rules SHOCK OR PRODUCT DAMAGE, DO NOT FCC Warning: EXPOSE THIS APPLIANCE ...
Page 3
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mech...
Page 4
Contents Safety Information (Part 15 of the FCC Rules) . . . . . . . . . . . . . . . . . . page 2 Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....
Page 5
Power and Sound Controls Power Turn the key in the ignition until the accesso- ry indicator lights. Power on: Press [PWR] (power). Power off: Press [PWR] (power) again. ACC ON BANDPWR CQ-2130U VOL MUT...
Page 6
Power and Sound Controls (Continued) Note: If no operation takes place for more than 5 Audio Modes seconds in audio mode (2 seconds in vol- (Bass/Treble/Balance/Fader) ume mode), the display returns t...
Page 7
Clock Setting The 12-hour system is used for the clock. Selecting the Clock Display Press [CLK] (clock) to switch clock and alarm time display both. Initial Time clock display Alarm time display “SET”...
Page 8
Alarm Time Setting The 12-hour system is used for the clock. Initial Alarm Time Press and hold [ALM] (Alarm) “AM 12:00” is displayed when the alarm is not adjusted. BANDPWR CQ-2130U VOL MUTE PUSH SEL ...
Page 9
Radio Change to the Radio mode Press [PWR] to change to the radio mode. CPlease press [u] (eject) to eject the tape when the cassette tape is playing. FM stereo indicator BANDPWR CQ-2130U VOL MUTE PUS...
Page 10
Radio (Continued) Preset Station Setting Up to 6 stations can be saved in each of the FM1, FM2 and AM preset station memories. Note: Existing saved stations are overwritten with new stations after fol...
Page 11
BANDPWR CQ-2130U VOL MUTE PUSH SEL TUNE SEEK BASS/TREB SCAN BAL/FADER Tuning in a Weather Band Station • Press [BAND] to select WB (Weather Band) (a page 9) • Press any of the buttons [1] to [6] to mo...
Page 12
Cassette Tape Player Loading a Cassette CQ-2130U Gently insert a cassette with the exposed tape side fac- ing to the right until the mechanism captures it, and VOL MUT playback starts. SEL BASS/TREB S...
Page 13
Play Side Change Press [a] and [f] at the same time to switch to the program on the other side of the tape. The display changes to indicate which program is playing. Top Side Playing Bottom Side Playi...
Page 14
Troubleshooting Preliminary Steps Cautions: Check and take steps as described in the tables below. • Do not use the unit if it malfunctions or if there is something wrong. • Do not use the unit in irr...
Page 15
Radio Trouble Cause/Step The antenna ground lead is not connected properly. Much noise in FM stereo Connect the antenna ground lead properly. and monaural broad- casts. The radio antenna is not extend...
Page 16
Speaker Connections Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers. <Right> • Use ungrounded speaker only. (White) • The maximum...
Page 17
Installation Guide WARNING This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential...
Page 18
Installation (Continued) Preparation Installation Hardware Warning: If your vehicle is equipped with air bag Diagram Q’ty Item No. and/or anti-theft systems, specific procedures may be required for co...
Page 19
Cautions: • We strongly recommend that you wear gloves for installation work to protect yourself from injuries. • When bending the mounting tab of the mounting collar with a screwdriver, be careful no...
Page 20
Installation (Continued) To Remove the Unit from the vehicle's dashboard Insert each Removal Tool i and pull. Removal Tool (U-shaped) Note: Do not lose Removal Tools. They will be needed to remove the...
Page 21
Electrical Connections Cautions: • This wiring information is for experienced technical individual, for safety reason, please your dealer wire this con- nection. • This product is designed to operate ...
Page 22
Specifications General Power Supply: 12 V DC (11 V-16 V) test Voltage 14.4 V, Negative ground Current consumption: Less than 2.5 A (tape mode, 0.5 W 4-speaker) Maximum Power Output: 37 W × 4 channels ...
Page 23
Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way, Secaucus, New Jersey 07094 YFM284C421ZA TAMACO0204-0 Printed in Taiwan
