AK-HDC930P(VQT0G78) 03.8.6 10:54 AM ページ1

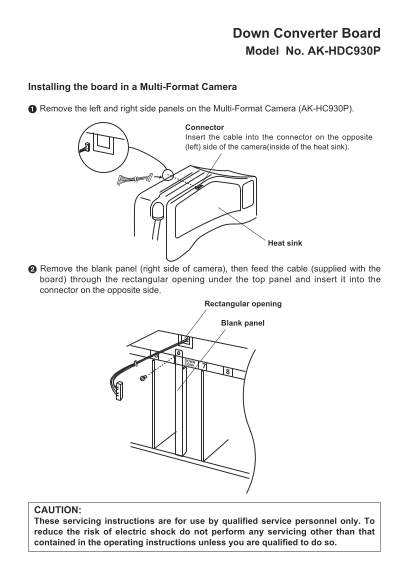

Down Converter Board Model No. AK-HDC930P
Installing the board in a Multi-Format Camera
Remove the left and right side panels on the Multi-Format Camera (AK-HC930P).
Connector Insert the cable into the connector on the opposite (left) side of the camera(inside of the heat sink).
Heat sink
Remove the blank panel (right side of camera), then feed the cable (supplied with the board) through the rectangular opening under the top panel and insert it into the connector on the opposite side.
Rectangular opening
Blank panel
DOWN CONV
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
