Panasonic AJCA910 User Guide

Summary

This manual describes the AJ-P Audio 4CH Camera Adapter, a device designed to expand audio recording capabilities on compatible Panasonic broadcast recorders like the AJ-D900WA series. It provides essential instructions for installation, configuration of audio levels, and usage of external microphones.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 9 ›

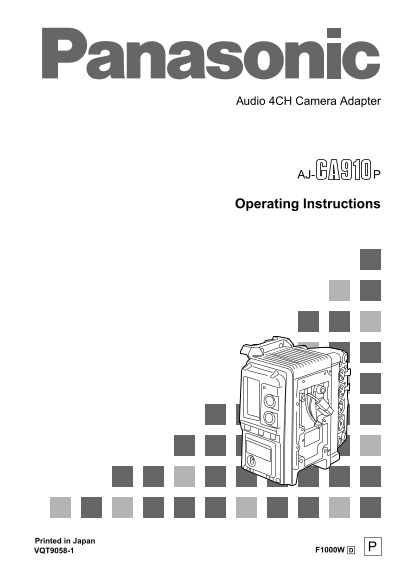

‹ Panasonic AJCA910 User Guide - Page 1 ›

Page 1 Text Content

Audio 4CH Camera Adapter

Operating Instructions

Printed in Japan

VQT9058-1 P F1000W @

Page Summary Contents For Panasonic AJCA910 User Guide

Page 1 Audio 4CH Camera Adapter Operating Instructions Printed in Japan VQT9058-1 P F1000W @
Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO SERVICING TO QUALIFIED SERVICE PERSO...
Page 3 FCC Note: This device complies with Part 15 of the FCC Rules. To assure continued compliance follow the attached installation instructions and do not make any unauthorized modifications. This equipmen...
Page 4 Contents Models Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Specifications . . . . . . . . . . . . . . . . . . . . . . ....
Page 5 Parts and Their Functions AUDIO SELECT CH 3/CH 4 (audio channel 3/4 automatic/manual level adjustment selector) switch This is used to select the method for adjusting the audio channel 3 and/or 4 reco...
Page 6 Parts and Their Functions AUDIO OUT connector This is connected to the audio component. The audio output channel is selected using the MONITOR SELECT switch 3. XLR, 3-pin, male +4 d Bu (can be changed...
Page 7 Attachment to Camera Consult with your dealer or a Panasonic Service Center representative before attaching this camera adapter. Take care not to make direct contact with the connector pins. Remove th...
Page 8 Attachment to Camera Use the 4 screws packed with the camera adapter to screw the camera adapter onto the camera. (M4a12mm) (M4a16mm) Connect the connectors on the battery mount to the connectors on t...
Page 9 PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY DIVISION OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA Executive Office: 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500 EASTERN ZONE: ...

Manual Details

Brand Panasonic
Pages 9
File Size 205.39 KB
Published June 15, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How do I attach the camera adapter to the camera?

Remove the battery mount, connect the adapter's connectors to the camera, screw the adapter on using the provided screws (M4), then reattach the battery mount and screw it onto the adapter.

Which camera models are supported?

Supported models: AJ-D910WA, AJ-D900W, AJ-D900WA, AJ-PD900W, and AJ-PD900WA.

What is the power consumption of the adapter?

Power consumption is 7 W, including the optional board.

What does the exclamation point symbol inside a triangle indicate?

It alerts the user to important operating and maintenance instructions in the accompanying literature.

How do I select the audio input source for channels 3 and 4?

Use the AUDIO IN CH 3/CH 4 switches: set to MIC for microphone input or LINE for audio component input.
