Panasonic 2SK0665 (2SK665) Data Manual

Summary

This small signal N-Channel Silicon MOS FET is engineered for reliable, high-speed switching applications that demand low drive currents and high input impedance. The accompanying technical datasheet provides comprehensive electrical specifications, including absolute maximum ratings, detailed on/off resistance metrics, and timing parameters essential for precise circuit design. It is the ideal component for professional electronics engineers building standard general electronic equipment requiring efficient power management and robust performance across diverse operational temperatures.

📄 Preview PAGE OF 3

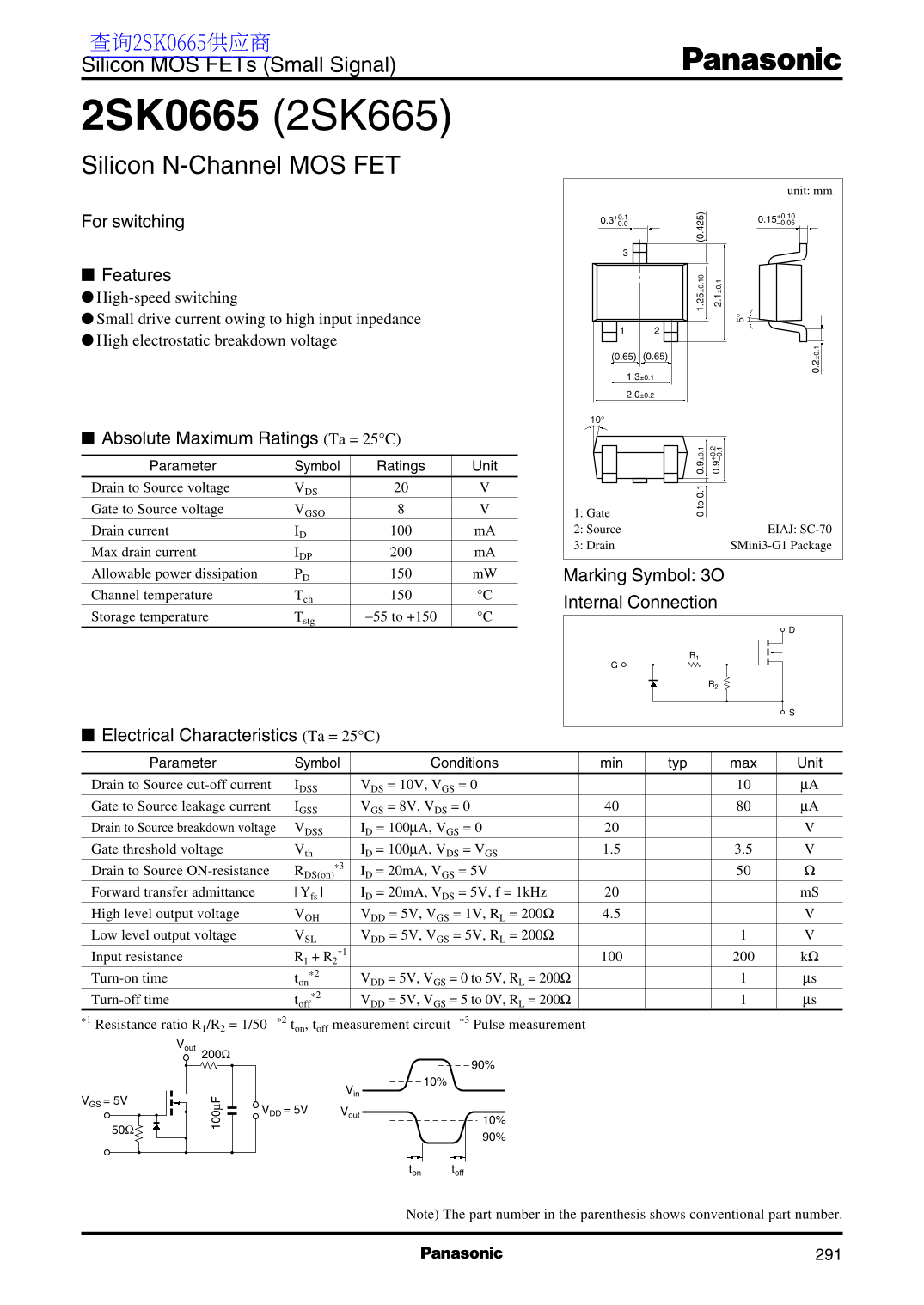

Page 1 Text Content

查询2SK0665供应商 Silicon MOS FETs (Small Signal)

2SK0665 (2SK665) Silicon N-Channel MOS FET

unit: mm

For switching –0.0 –0.05

Features High-speed switching Small drive current owing to high input inpedance High electrostatic breakdown voltage

Absolute Maximum Ratings (Ta = 25°C) Parameter Symbol Ratings Unit Drain to Source voltage VDS Gate to Source voltage VGSO 1: Gate

Drain current ID m A 2: Source EIAJ: SC-70 3: Drain SMini3-G1 Package

Max drain current IDP m A Allowable power dissipation PD m W Marking Symbol: 3O Channel temperature Tch °C

Internal Connection

Storage temperature Tstg −55 to +150 °C

to .1 0. 9± 0. 1. 0. (0 .4

Electrical Characteristics (Ta = 25°C) 5° Parameter Symbol Conditions min typ max Unit Drain to Source cut-off current IDSS VDS = 10V, VGS = 0 µA Gate to Source leakage current IGSS VGS = 8V, VDS = 0 µA

Drain to Source breakdown voltage VDSS ID = 100µA, VGS = 0 Gate threshold voltage Vth ID = 100µA, VDS = VGS 1.5 3.5

Drain to Source ON-resistance RDS(on) ID = 20m A, VGS = 5V Forward transfer admittance | Yfs | ID = 20m A, VDS = 5V, f = 1k Hz m S High level output voltage VOH VDD = 5V, VGS = 1V, RL = 200Ω 4.5 Low level output voltage VSL VDD = 5V, VGS = 5V, RL = 200Ω

Input resistance R1 + R2 kΩ

Turn-on time ton VDD = 5V, VGS = 0 to 5V, RL = 200Ω µs

Turn-off time toff VDD = 5V, VGS = 5 to 0V, RL = 200Ω µs *1 Resistance ratio R1/R2 = 1/50 *2 ton, toff measurement circuit *3 Pulse measurement

Vout 200Ω

VGS = 5V

VDD = 5V Vout

ton toff

Note) The part number in the parenthesis shows conventional part number.

Page Summary Contents For Panasonic 2SK0665 (2SK665) Data Manual

Page 1 查询2SK0665供应商 Silicon MOS FETs (Small Signal) 2SK0665 (2SK665) Silicon N-Channel MOS FET unit: mm For switching –0.0 –0.05 Features High-speed switching Small drive current owing to high input inpedanc...
Page 2 Silicon MOS FETs (Small Signal) 2SK0665 In pu t v ol ta ge or ar tr an sf er dm itt an ce |Y llo ab le ow er is si pa tio IN fs PD  Ta ID  VDS ID  VGS Ta=25˚C VDS=5V VGS=6.0V 5.5V Ta=–25˚C In pu t ...
Page 3 Request for your special attention and precautions in using the technical information and semiconductors described in this material (1) An export permit needs to be obtained from the competent authori...

Manual Details

Brand Panasonic
Pages 3
File Size 71.45 KB
Published July 16, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the maximum drain-to-source voltage (Vds) and gate-to-source voltage (Vgs) ratings?

The absolute maximum rating for Drain to Source voltage is 20V, and for Gate to Source voltage is 8V.

What is the typical on-resistance (Rds(on)) of the FET under normal conditions?

At a drain current of 20mA and V=5V, the typical drain-to-source ON-resistance is 50 ohm.

Are these microchips suitable for critical applications like automotive or aerospace?

No. Users must consult sales staff for special applications requiring exceptional quality and reliability, such as aviation or automobiles.

What are the turn-on and turn-off times for this component?

The typical turn-on time (t_on) is 1µs, and the typical turn-off time (t_off) is also 1µs.
