ON NCV8141 5.0V, 500mA Linear Regulator with ENABLE, RESET, and Watchdog User's Manual Data Sheet

Summary

The NCV8141 is a specialized linear regulator designed for powering microprocessors in demanding automotive and compute systems. It delivers stable 5.0V while integrating essential control functions—including watchdog, reset, and enable controls—to increase system reliability and save board space. This technical manual provides comprehensive details on the device's electrical performance, maximum ratings, pin configurations, and operating parameters necessary for confident design integration. Ideal for hardware engineers developing robust, reliable computer-based systems.

📄 Preview PAGE OF 12

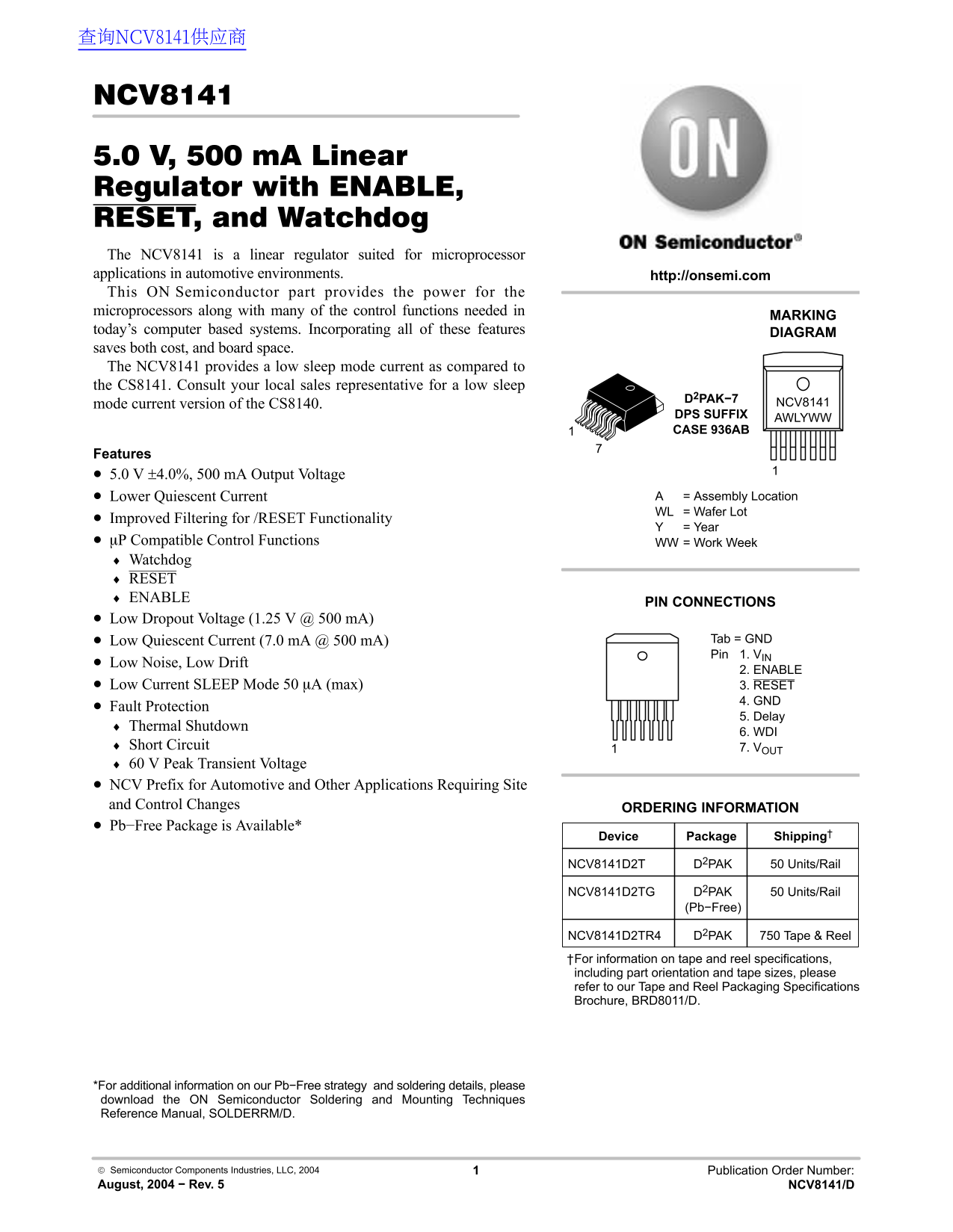

Page 1 Text Content

查询NCV8141供应商

NCV8141

5.0 V, 500 m A Linear Regulator with ENABLE, RESET, and Watchdog The NCV8141 is a linear regulator suited for microprocessor applications in automotive environments. http://onsemi.com This ON Semiconductor part provides the power for the microprocessors along with many of the control functions needed in

MARKING

today’s computer based systems. Incorporating all of these features DIAGRAM saves both cost, and board space. The NCV8141 provides a low sleep mode current as compared to the CS8141. Consult your local sales representative for a low sleep

D2PAK−7

mode current version of the CS8140. NCV8141

DPS SUFFIX

AWLYWW

CASE 936AB1

Features 5.0 V ±4.0%, 500 m A Output Voltage

Lower Quiescent Current = Assembly Location WL = Wafer Lot

Improved Filtering for /RESET Functionality

= Year

P Compatible Control Functions WW = Work Week Watchdog RESET ENABLE

PIN CONNECTIONS

Low Dropout Voltage (1.25 V @ 500 m A)

Low Quiescent Current (7.0 m A @ 500 m A) Tab = GND Pin 1. VIN

Low Noise, Low Drift

2. ENABLE

Low Current SLEEP Mode 50 A (max) 3. RESET

4. GND

Fault Protection

5. Delay

Thermal Shutdown

6. WDI

Short Circuit 7. VOUT 60 V Peak Transient Voltage NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes ORDERING INFORMATION Pb−Free Package is Available*

Device Package Shipping†

NCV8141D2T D2PAK 50 Units/Rail

NCV8141D2TG D2PAK 50 Units/Rail

(Pb−Free)

NCV8141D2TR4 D2PAK 750 Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

Semiconductor Components Industries, LLC, 2004 Publication Order Number: August, 2004 − Rev. 5 NCV8141/D

Page Summary Contents For ON NCV8141 5.0V, 500mA Linear Regulator with ENABLE, RESET, and Watchdog User's Manual Data Sheet

Page 1 查询NCV8141供应商 NCV8141 5.0 V, 500 m A Linear Regulator with ENABLE, RESET, and Watchdog The NCV8141 is a linear regulator suited for microprocessor applications in automotive environments. http://onsemi...
Page 2 NCV8141 Overvoltage Overtemperature Reference & Bias Regulation ENABLE Control Logic ENABLE RESET WDI Delay Short Circuit Undervoltage Sense Watchdog RESET Delay Figure 1. Block Diagram PIN FUNCTI...
Page 3 NCV8141 MAXIMUM RATINGS Rating Value Unit Input Operating Range −0.5 to 26 Peak Transient Voltage (46 V Load Dump @ 14 V VBAT) Electrostatic Discharge (Human Body Model) 4.0 k V WDI Input Signal Range...
Page 4 NCV8141 ELECTRICAL CHARACTERISTICS (continued) (7.0 ≤ VIN ≤ 26 V, 5.0 m A ≤ IOUT ≤ 500 m A, −40°C ≤ TJ ≤ 150°C, −40°C ≤ TA ≤ 125°C, unless otherwise noted.) (Note 4) Characteristic Test Conditions Min...
Page 5 NCV8141 DEFINITION OF TERMS Dropout Voltage: The input−output voltage differential such that the average chip temperature is not significantly at which the circuit ceases to regulate against further a...
Page 6 NCV8141 Using an emitter sense scheme, the amount of current The Watchdog monitors the frequency of an incoming through the NPN pass transistor is monitored. Feedback WDI signal. If the signal falls o...
Page 7 NCV8141 VIN Batt VOUT When Watchdog is Held ENABLE High and ENABLE = HIGH WDI 0 V RESET 0 V VOUT 0 V POR Normal Operation WDI held High VIN Batt ENABLE VOUT When Watchdog is Held Low WDI 0 V and ENABL...
Page 8 NCV8141 APPLICATION NOTES NCV8141 DESIGN EXAMPLE With a capacitor tolerance of ±10%: The NCV8141 with its unique integration of linear t WDI (1.3 105) 1.2 1.1 CDelay regulator and control features: RE...
Page 9 NCV8141 NCV8141 Switch R1 RESET 110 K ENABLE CDELAY GND Microprocessor RESET WATCHDOG PORT Figure 10. Application Diagram for NCV8141. The NCV8141 Provides a 5.0 V Tightly Regulated Supply and Control...
Page 10 NCV8141 VOUTVIN Battery NCV8141 VCC (optional) Ignition ENABLE RESET RESET DELAY WDI WATCHDOG GND PORT Microprocessor *C1 is required if regulator is located far from the power source filter. **C2 is ...
Page 11 NCV8141 IQ is the quiescent current the regulator consumes at In some cases, none of the packages will be sufficient to IOUT(max). dissipate the heat generated by the IC, and an external heatsink will...
Page 12 NCV8141 PACKAGE DIMENSIONS D2PAK−7 (SHORT LEAD) CASE 936AB−01 ISSUE O NOTES: 1. DIMENSIONS AND TOLERANCING PER ANSI Y14.5M, 1982. TERMINAL 8 2. CONTROLLING DIMENSION: INCH. MILLIMETERSINCHES DIM MIN M...

Manual Details

Brand Linear
Pages 12
File Size 89.85 KB
Published July 22, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What triggers a RESET signal from this regulator?

The reset pin goes low if the voltage drops below 4.5% of its typical OUT value for more than 2.0 seconds, or if the Watchdog Input (WDI) signal falls outside its limits.

What is the device's low-power consumption in sleep mode?

The quiescent current in sleep mode is very low, rated at a maximum of 50 µA.

What are the operating temperature ranges for this component?

Its junction temperature range (T) is from -40 to +150 °C, making it suitable for automotive environments.

How is the Watchdog function utilized in the system?

The Watchdog function monitors the falling edge of an incoming digital pulse train signal generated by the system microprocessor on pin 6.
