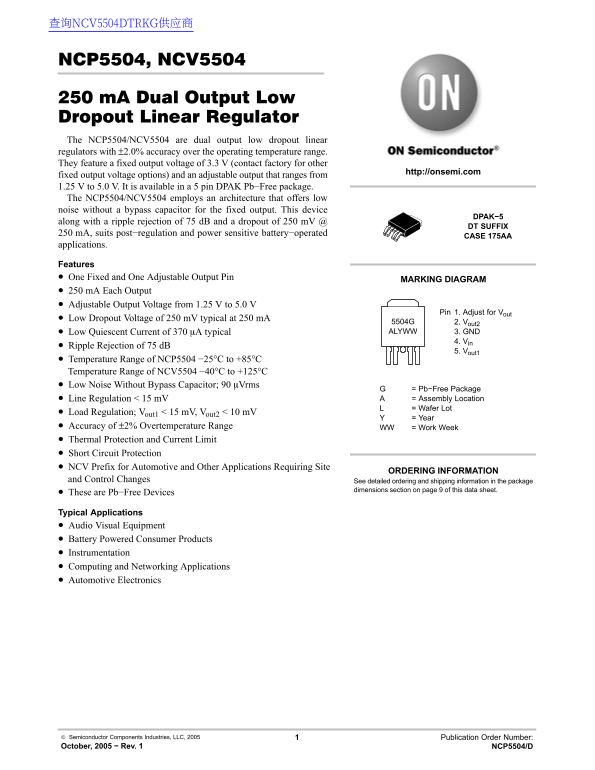

NCP5504, NCV5504

250 m A Dual Output Low Dropout Linear Regulator The NCP5504/NCV5504 are dual output low dropout linear regulators with ±2.0% accuracy over the operating temperature range. They feature a fixed output voltage of 3.3 V (contact factory for other

http://onsemi.com

fixed output voltage options) and an adjustable output that ranges from 1.25 V to 5.0 V. It is available in a 5 pin DPAK Pb−Free package. The NCP5504/NCV5504 employs an architecture that offers low noise without a bypass capacitor for the fixed output. This device

DPAK−5

along with a ripple rejection of 75 d B and a dropout of 250 m V @

DT SUFFIX

250 m A, suits post−regulation and power sensitive battery−operated

CASE 175AA

applications.

Features One Fixed and One Adjustable Output Pin

MARKING DIAGRAM

250 m A Each Output Adjustable Output Voltage from 1.25 V to 5.0 V

Pin 1. Adjust for Vout

Low Dropout Voltage of 250 m V typical at 250 m A

5504G 2. Vout2 Low Quiescent Current of 370 A typical ALYWW 3. GND

4. Vin

Ripple Rejection of 75 d B

5. Vout1

Temperature Range of NCP5504 −25°C to +85°C Temperature Range of NCV5504 −40°C to +125°C Low Noise Without Bypass Capacitor; 90 Vrms

= Pb−Free Package Line Regulation < 15 m V = Assembly Location = Wafer Lot

Load Regulation; Vout1 < 15 m V, Vout2 < 10 m V

= Year

Accuracy of ±2% Overtemperature Range WW = Work Week Thermal Protection and Current Limit Short Circuit Protection NCV Prefix for Automotive and Other Applications Requiring Site

ORDERING INFORMATION

and Control Changes See detailed ordering and shipping information in the package

dimensions section on page 9 of this data sheet.

These are Pb−Free Devices

Typical Applications Audio Visual Equipment Battery Powered Consumer Products Instrumentation Computing and Networking Applications Automotive Electronics

Semiconductor Components Industries, LLC, 2005 Publication Order Number: October, 2005 − Rev. 1 NCP5504/D
