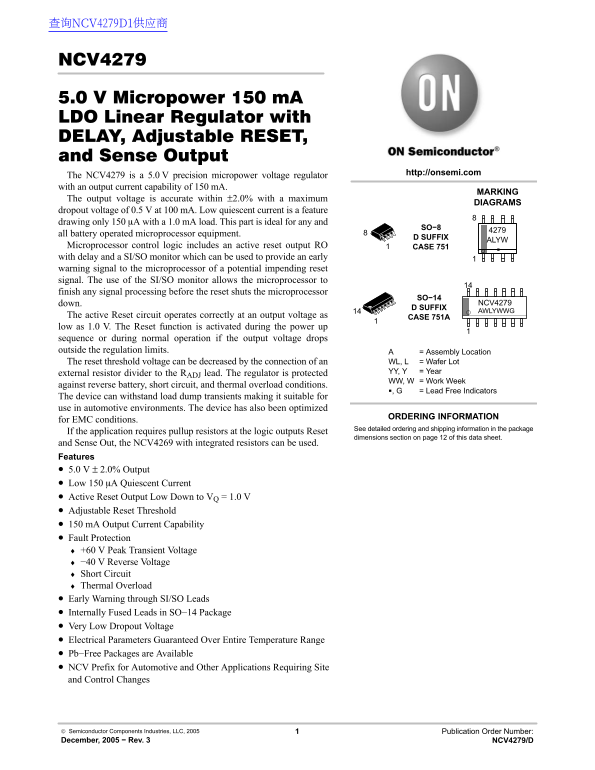

NCV4279

5.0 V Micropower 150 m A LDO Linear Regulator with DELAY, Adjustable RESET, and Sense Output

http://onsemi.com

The NCV4279 is a 5.0 V precision micropower voltage regulator with an output current capability of 150 m A.

MARKING

The output voltage is accurate within ±2.0% with a maximum

DIAGRAMS

dropout voltage of 0.5 V at 100 m A. Low quiescent current is a feature drawing only 150 A with a 1.0 m A load. This part is ideal for any and

all battery operated microprocessor equipment.

D SUFFIX

Microprocessor control logic includes an active reset output RO CASE 751 with delay and a SI/SO monitor which can be used to provide an early warning signal to the microprocessor of a potential impending reset signal. The use of the SI/SO monitor allows the microprocessor to finish any signal processing before the reset shuts the microprocessor

SO−14

down. NCV4279

D SUFFIX

AWLYWWG

The active Reset circuit operates correctly at an output voltage as CASE 751A1 low as 1.0 V. The Reset function is activated during the power up sequence or during normal operation if the output voltage drops outside the regulation limits. = Assembly Location

The reset threshold voltage can be decreased by the connection of an WL, L = Wafer Lot external resistor divider to the RADJ lead. The regulator is protected YY, Y = Year WW, W = Work Week

against reverse battery, short circuit, and thermal overload conditions.

, G = Lead Free Indicators

The device can withstand load dump transients making it suitable for use in automotive environments. The device has also been optimized

ORDERING INFORMATION

for EMC conditions.

See detailed ordering and shipping information in the package

If the application requires pullup resistors at the logic outputs Reset

dimensions section on page 12 of this data sheet.

and Sense Out, the NCV4269 with integrated resistors can be used. Features 5.0 V ± 2.0% Output Low 150 A Quiescent Current Active Reset Output Low Down to VQ = 1.0 V Adjustable Reset Threshold 150 m A Output Current Capability Fault Protection +60 V Peak Transient Voltage −40 V Reverse Voltage Short Circuit Thermal Overload Early Warning through SI/SO Leads Internally Fused Leads in SO−14 Package Very Low Dropout Voltage Electrical Parameters Guaranteed Over Entire Temperature Range Pb−Free Packages are Available NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes

Semiconductor Components Industries, LLC, 2005 Publication Order Number: December, 2005 − Rev. 3 NCV4279/D

Page Summary Contents For ON NCV4279 5.0V Micropower LDO Linear Regulator with Adjustable RESET, DELAY, and Sense Output Data Manual

Page 1 查询NCV4279D1供应商 NCV4279 5.0 V Micropower 150 m A LDO Linear Regulator with DELAY, Adjustable RESET, and Sense Output http://onsemi.com The NCV4279 is a 5.0 V precision micropower voltage regulator with...
Page 2 NCV4279 Error Amplifier Reference Current and and Trim Saturation Control Reference GNDSI Figure 1. Block Diagram PIN CONNECTIONS SIRADJ ID GNDGND GNDGND RORADJ GNDGND QGND SORO SO−8 SO−14 PACKAGE PIN...
Page 3 NCV4279 MAXIMUM RATINGS (TJ = −40°C to 150°C) Parameter Symbol Min Max Unit Input to Regulator VI −40 II Internally Limited Internally Limited Input Peak Transient Voltage VI Sense Input VSI −40 ISI −...
Page 4 NCV4279 ELECTRICAL CHARACTERISTICS (TJ = −40°C ≤ TJ ≤ 125°C, VI = 13.5 V unless otherwise specified) Characteristic Symbol Test Conditions Min Typ Max Unit REGULATOR Output Voltage VQ 1 m A  IQ  100...
Page 5 NCV4279 II IQ CQ 22 F 1000 F RADJ1 470 n F RRO RSO ISI IRADJ SI RADJ VI GND RO SO ID Iq VRO VSO VRADJ CD VD RADJ2 Figure 2. Measuring Circuit < t RR VQ VRT d V ID dt CD VUD VLD VRO,SAT Power−on−R...
Page 6 NCV4279 Sense Input Voltage VSLHIGH VSLLOW Sense Output Voltage t PDSOHLt PDSOLH Figure 4. Sense Timing Diagram http://onsemi.com
Page 7 NCV4279 TYPICAL PERFORMANCE CHARACTERISTICS VI = 13.5 V VI = 13.5 V VD = 1.0 V 2.0 VUD TJ (°C) TJ (°C) Figure 5. Charge Current ID,c vs. Temperature TJ Figure 6. Switching Voltage VUD and VLD vs. Temp...
Page 8 NCV4279 TYPICAL PERFORMANCE CHARACTERISTICS VI = 13.5 V VI = 13.5 V Sense Output High Sense Output Low TJ (°C) TJ (°C) Figure 11. Sense Threshold VSI vs. Temperature TJ Figure 12. Output Voltage VQ vs...
Page 9 NCV4279 TYPICAL PERFORMANCE CHARACTERISTICS VI = 13.5 V VI = 13.5 V 0.8 TJ = 25°C TJ = 25°C IQ (m A) IQ (m A) Figure 14. Current Consumption Iq vs. Figure 15. Current Consumption Iq vs. Output Current...
Page 10 NCV4279 APPLICATION DESCRIPTION OUTPUT REGULATOR If the reset adjust option is not needed, the RADJ pin The output is controlled by a precision trimmed reference. should be connected to GND causing th...
Page 11 NCV4279 SENSE INPUT (SI) / SENSE OUTPUT (SO) VOLTAGE expensive solution, but, if the circuit operates at low MONITOR temperatures (−25°C to −40°C), both the value and ESR of An on−chip comparator is a...
Page 12 NCV4279 ORDERING INFORMATION Device Output Voltage Package Shipping† NCV4279D1 SO−8 SO−8 98 Units/Rail NCV4279D1G (Pb−Free) NCV4279D1R2 SO−8 SO−8 2500 Tape & Reel NCV4279D1R2G (Pb−Free) NCV4279D2 ...
Page 13 NCV4279 PACKAGE DIMENSIONS SO−8 D SUFFIX CASE 751−07 ISSUE AF NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSION A AND B DO NOT INCLUDE MO...
Page 14 NCV4279 PACKAGE DIMENSIONS SO−14 D SUFFIX CASE 751A−03 ISSUE G NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI −A− Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSIONS A AND B DO NOT INCL...
