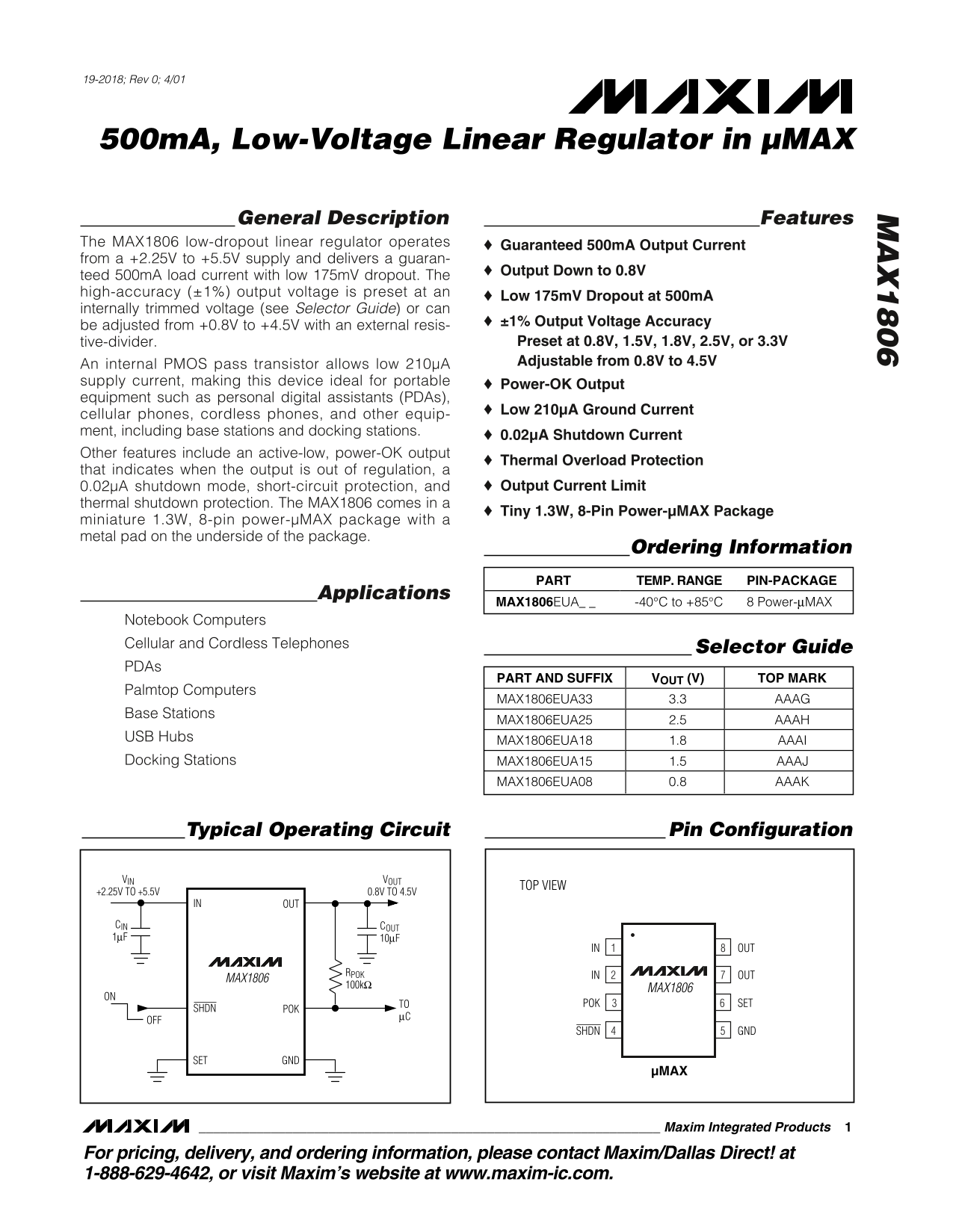

19-2018; Rev 0; 4/01
500m A, Low-Voltage Linear Regulator in µMAX
General Description Features
The MAX1806 low-dropout linear regulator operates Guaranteed 500m A Output Current from a +2.25V to +5.5V supply and delivers a guaran-
Output Down to 0.8V
teed 500m A load current with low 175m V dropout. The high-accuracy (±1%) output voltage is preset at an
Low 175m V Dropout at 500m A
internally trimmed voltage (see Selector Guide) or can
±1% Output Voltage Accuracy
be adjusted from +0.8V to +4.5V with an external resis-
tive-divider. Preset at 0.8V, 1.5V, 1.8V, 2.5V, or 3.3V An internal PMOS pass transistor allows low 210µA Adjustable from 0.8V to 4.5V
supply current, making this device ideal for portable
Power-OK Output
equipment such as personal digital assistants (PDAs),
Low 210µA Ground Current
cellular phones, cordless phones, and other equip- ment, including base stations and docking stations.
0.02µA Shutdown Current
Other features include an active-low, power-OK output
Thermal Overload Protection
that indicates when the output is out of regulation, a
0.02µA shutdown mode, short-circuit protection, and Output Current Limit
thermal shutdown protection. The MAX1806 comes in a
Tiny 1.3W, 8-Pin Power-µMAX Package
miniature 1.3W, 8-pin power-µMAX package with a metal pad on the underside of the package.
Ordering Information
PART T EM P. R A N G E PIN-PACKAGE
Applications
MAX1806EUA_ _ -40°C to +85°C 8 Power-µMAX
Notebook Computers Cellular and Cordless Telephones
Selector Guide
PART AND SUFFIX VOUT (V) TOP MARK
Palmtop Computers
MAX1806EUA33 3.3 AAAG
Base Stations
MAX1806EUA25 2.5 AAAH
USB Hubs
MAX1806EUA18 1.8 AAAI
Docking Stations MAX1806EUA15 1.5 AAAJ
MAX1806EUA08 0.8 AAAK
Typical Operating Circuit Pin Configuration
VIN VOUT
TOP VIEW
+2.25V TO +5.5V 0.8V TO 4.5V
IN OUT NC
CIN COUT 1µF 10µF
IN OUT
RPOK OUTIN
MAX1806
MAX1806
TO POK SET
SHDN POK
GNDSHDN
GNDSET
