LP3905 Power Management Unit For Low Power Handheld Applications General Description Key Specifications LP3905 is multi-functional Power Management Unit, Buck Regulators optimized for low power handheld applications. This device
Fixed and adjustable voltage options, range 1.0V to
integrates two 600m A DC/DC buck regulators and two
150m A linear regulators. Fixed and adjustable buck output
Up to 90% Efficiency
versions are available. The LP3905 additionally features two
Auto-switching PFM-PWM mode and fixed PWM mode
enable pins for the device output control and is offered in an
2MHz PWM fixed switching frequency (Typ)
LLP package.
600m A output current ±4% output voltage accuracy over temp.
Features
Internal softstart
Two buck regulators for powering high current processor
2.2µH inductor, 10µF Input and 10µF output Caps
functions or peripheral devices
Linear Regulators
Two linear regulators for powering internal processor
functions and I/Os Output options in the range 1.5V to 3.3V One enable pin for Buck1 and Linear Regulators 13.5µVrms output voltage noise Separate enable pin for Buck2 PSRR 70d B 1k Hz Thermal and current overload protection ±3% output voltage accuracy over full line and load regulation
Small 14–Pin LLP package (4mm 4mm 0.8mm)
0m A to 150m A output current Applications Cin 1.0µF, Cout 0.47µF for 100m A O/P Cin 1.0µF, Cout 1.0µF for 150m A O/P
Baseband Processors
80m V Dropout voltage
Peripheral Processor (Video, Audio)
Fixed output voltage devices can be customized to fit
I/O Power
system requirements. Please contact National Semiconduc-
FPGA Power
tor Sales Office.
Typical Application Circuit

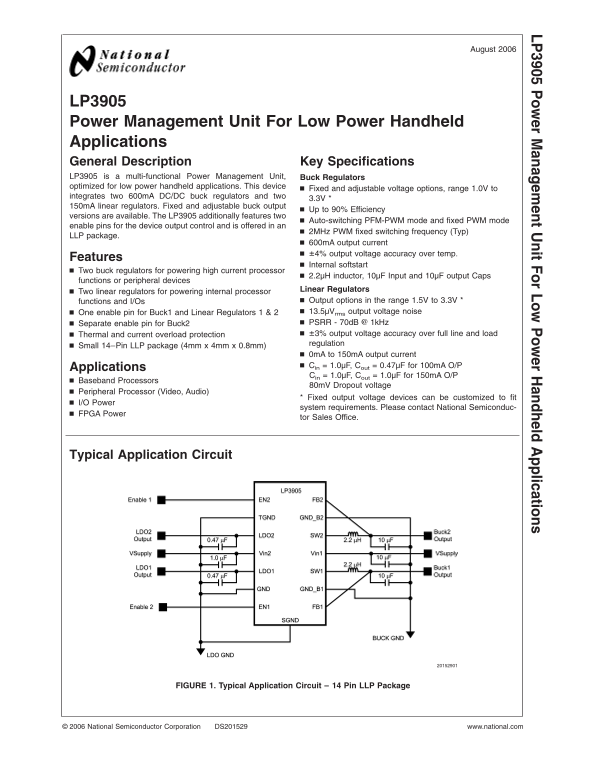

FIGURE 1. Typical Application Circuit Pin LLP Package
