LM3881 Power Sequencer General Description Features The LM3881 Power Sequencer offers the easiest method to Easiest method to sequence rails control power up and power down of multiple power supplies
Power up and power down control
(switching or linear regulators). By staggering the startup se-
Input voltage range of 2.7V to 5.5V
quence, it is possible to avoid latch conditions or large in-rush
Small footprint MSOP-8 package
currents that can affect the reliability of the system.
Low quiescent current of 80 µA
Available in MSOP-8 package, the Power Sequencer con-
tains a precision enable pin and three open drain output flags. Output invert feature
Upon enabling the LM3881, the three output flags will se- Timing controlled by small value external capacitor quentially release, after individual time delays, permitting the connected power supplies to startup. The output flags will fol-
Applications
low a reverse sequence during power down to avoid latch
conditions. Time delays are defined using an external capac- Multiple Supply Sequencing
itor and the output flag states can be inverted by the user. Microprocessor / Microcontroller Sequencing
FPGA Sequencing

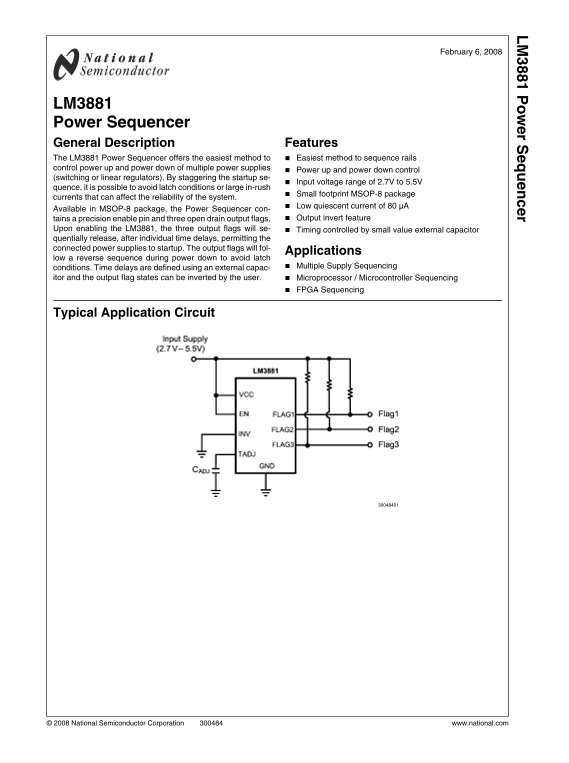

Typical Application Circuit
