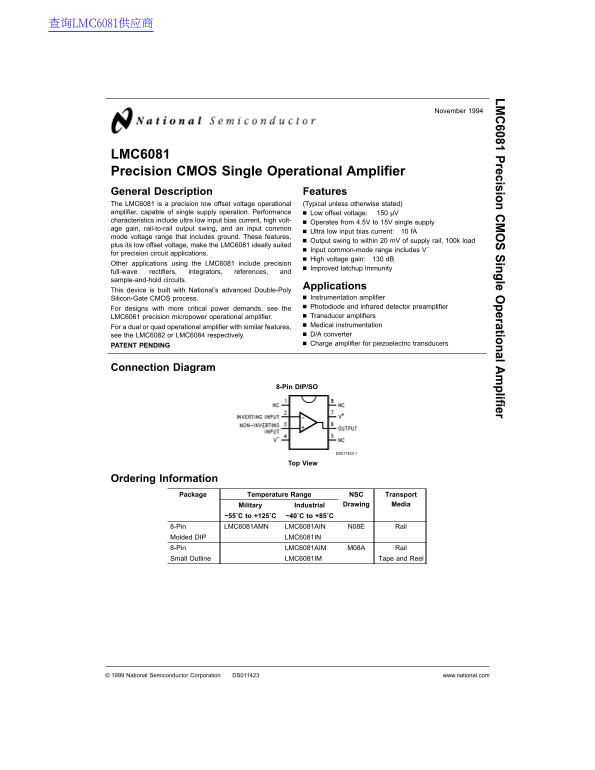

LMC6081 Precision CMOS Single Operational Amplifier General Description Features The LMC6081 is precision low offset voltage operational (Typical unless otherwise stated) amplifier, capable of single supply operation. Performance Low offset voltage: µV characteristics include ultra low input bias current, high volt- Operates from 4.5V to 15V single supply age gain, rail-to-rail output swing, and an input common
Ultra low input bias current: f A
mode voltage range that includes ground. These features,
Output swing to within m V of supply rail, 100k load
plus its low offset voltage, make the LMC6081 ideally suited
Input common-mode range includes V−
for precision circuit applications.
High voltage gain: d B
Other applications using the LMC6081 include precision
Improved latchup immunity
full-wave rectifiers, integrators, references, and sample-and-hold circuits.
Applications
This device is built with National’s advanced Double-Poly
Silicon-Gate CMOS process. Instrumentation amplifier For designs with more critical power demands, see the Photodiode and infrared detector preamplifier LMC6061 precision micropower operational amplifier. Transducer amplifiers For dual or quad operational amplifier with similar features, Medical instrumentation see the LMC6082 or LMC6084 respectively. D/A converter PATENT PENDING Charge amplifier for piezoelectric transducers
Connection Diagram
8-Pin DIP/SO
DS011423-1
Ordering Information
Package Temperature Range NSC Transport
Industrial Drawing Media Military
−55˚C to +125˚C −40˚C to +85˚C
8-Pin LMC6081AMN LMC6081AIN N08E Rail Molded DIP LMC6081IN 8-Pin LMC6081AIM M08A Rail Small Outline LMC6081IM Tape and Reel
National Semiconductor Corporation DS011423 www.national.com
