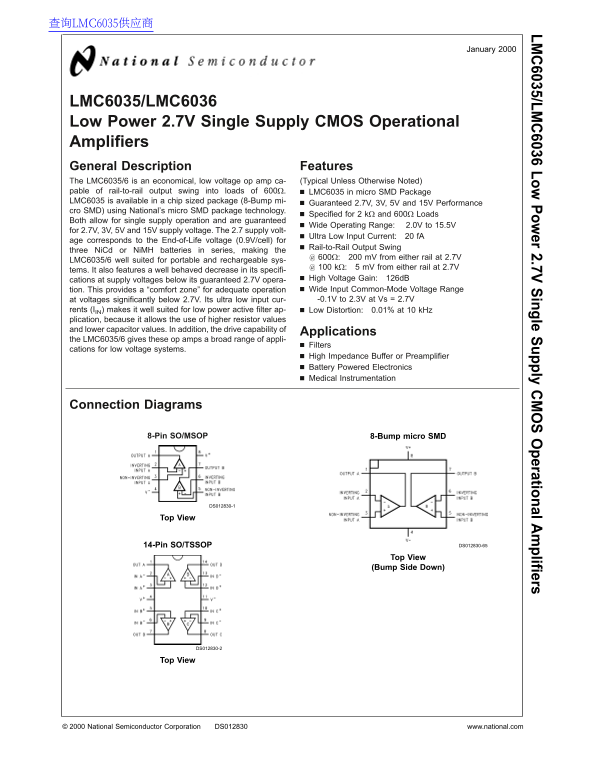

LM 6035/LM Low ow er 2.7V ingle upply perational A plifiers
LMC6035/LMC6036 Low Power 2.7V Single Supply CMOS Operational Amplifiers General Description Features The LMC6035/6 is an economical, low voltage op amp ca- (Typical Unless Otherwise Noted) pable of rail-to-rail output swing into loads of 600Ω. LMC6035 in micro SMD Package LMC6035 is available in chip sized package (8-Bump mi-
Guaranteed 2.7V, 3V, 5V and 15V Performance
cro SMD) using National’s micro SMD package technology.
Specified for kΩ and 600Ω Loads
Both allow for single supply operation and are guaranteed
Wide Operating Range: 2.0V to 15.5V
for 2.7V, 3V, 5V and 15V supply voltage. The 2.7 supply volt-
Ultra Low Input Current: f A
age corresponds to the End-of-Life voltage (0.9V/cell) for
Rail-to-Rail Output Swing
three Ni Cd or Ni MH batteries in series, making the
600Ω: m V from either rail at 2.7V
LMC6035/6 well suited for portable and rechargeable sys-
kΩ: m V from either rail at 2.7V
tems. It also features well behaved decrease in its specifi-
cations at supply voltages below its guaranteed 2.7V opera- High Voltage Gain: 126d B tion. This provides “comfort zone” for adequate operation Wide Input Common-Mode Voltage Range at voltages significantly below 2.7V. Its ultra low input cur- -0.1V to 2.3V at Vs 2.7V
rents (IIN) makes it well suited for low power active filter ap- Low Distortion: 0.01% at k Hz plication, because it allows the use of higher resistor values and lower capacitor values. In addition, the drive capability of
Applications
the LMC6035/6 gives these op amps broad range of appli-
Filters
cations for low voltage systems.
High Impedance Buffer or Preamplifier Battery Powered Electronics Medical Instrumentation
Connection Diagrams
8-Pin SO/MSOP 8-Bump micro SMD
DS012830-1
14-Pin SO/TSSOP DS012830-65
(Bump Side Down)
DS012830-2
National Semiconductor Corporation DS012830 www.national.com
