LM3080 Operational Transconductance Amplifier General Description Features
The LM3080 is programmable transconductance block in- Slew rate (unity gain compensated): V/ms
tended to fulfill wide variety of variable gain applications. Fully adjustable gain: to gm RL limit The LM3080 has differential inputs and high impedance Extended gm linearity: decades push-pull outputs. The device has high input impedance and Flexible supply voltage range: g2V to g18V its transconductance (gm) is directly proportional to the am-
Adjustable power consumption
plifier bias current (IABC). High slew rate together with programmable gain make the LM3080 an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying. The LM3080N and LM3080AN are guaranteed from 0§C to a70§C.

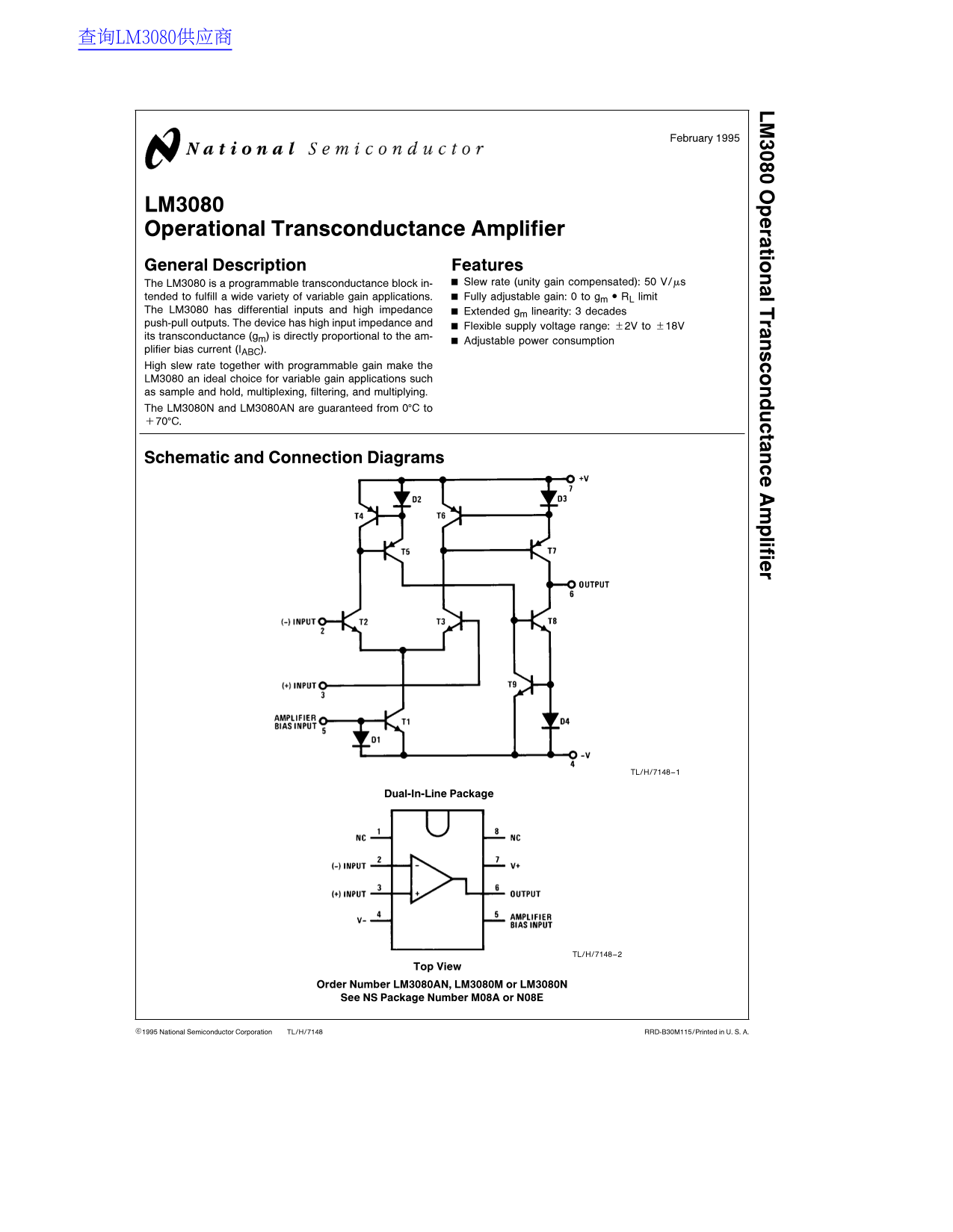

Schematic and Connection Diagrams
TL/H/7148–1
Dual-In-Line Package
TL/H/7148–2
Order Number LM3080AN, LM3080M or LM3080N See NS Package Number M08A or N08E
