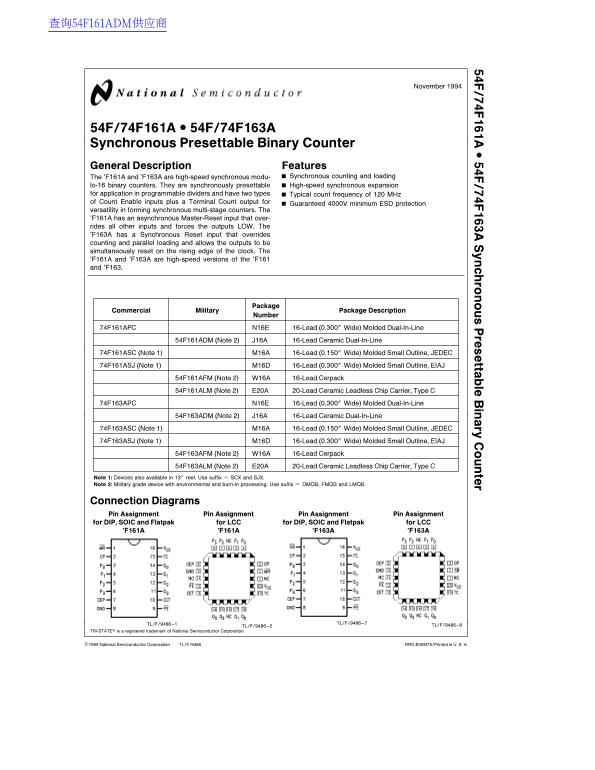

Page 1 Text Content
查询54F161ADM供应商
November
ro re tta le in ry te
54F/74F161A 54F/74F163A Synchronous Presettable Binary Counter General Description Features
The ’F161A and ’F163A are high-speed synchronous modu- Synchronous counting and loading
lo-16 binary counters. They are synchronously presettable High-speed synchronous expansion for application in programmable dividers and have two types Typical count frequency of MHz of Count Enable inputs plus Terminal Count output for Guaranteed 4000V minimum ESD protection versatility in forming synchronous multi-stage counters. The ’F161A has an asynchronous Master-Reset input that over- rides all other inputs and forces the outputs LOW. The ’F163A has Synchronous Reset input that overrides counting and parallel loading and allows the outputs to be simultaneously reset on the rising edge of the clock. The ’F161A and ’F163A are high-speed versions of the ’F161 and ’F163.
Package
Commercial Military Package Description
Number
74F161APC N16E 16-Lead (0.300× Wide) Molded Dual-In-Line
54F161ADM (Note 2) J16A 16-Lead Ceramic Dual-In-Line
74F161ASC (Note 1) M16A 16-Lead (0.150× Wide) Molded Small Outline, JEDEC
74F161ASJ (Note 1) M16D 16-Lead (0.300× Wide) Molded Small Outline, EIAJ
54F161AFM (Note 2) W16A 16-Lead Cerpack
54F161ALM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type
74F163APC N16E 16-Lead (0.300× Wide) Molded Dual-In-Line
54F163ADM (Note 2) J16A 16-Lead Ceramic Dual-In-Line
74F163ASC (Note 1) M16A 16-Lead (0.150× Wide) Molded Small Outline, JEDEC
74F163ASJ (Note 1) M16D 16-Lead (0.300× Wide) Molded Small Outline, EIAJ
54F163AFM (Note 2) W16A 16-Lead Cerpack
54F163ALM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type
Note 1: Devices also available in 13× reel. Use suffix SCX and SJX.
Note 2: Military grade device with environmental and burn-in processing. Use suffix DMQB, FMQB and LMQB.
Connection Diagrams Pin Assignment Pin Assignment Pin Assignment Pin Assignment for DIP, SOIC and Flatpak for LCC for DIP, SOIC and Flatpak for LCC
TL/F/9486–1 TL/F/9486–7 TL/F/9486–8
TL/F/9486–2
TRI-STATEÉ is registered trademark of National Semiconductor Corporation.
C1995 National Semiconductor Corporation TL/F/9486 RRD-B30M75/Printed in U. S. A.
