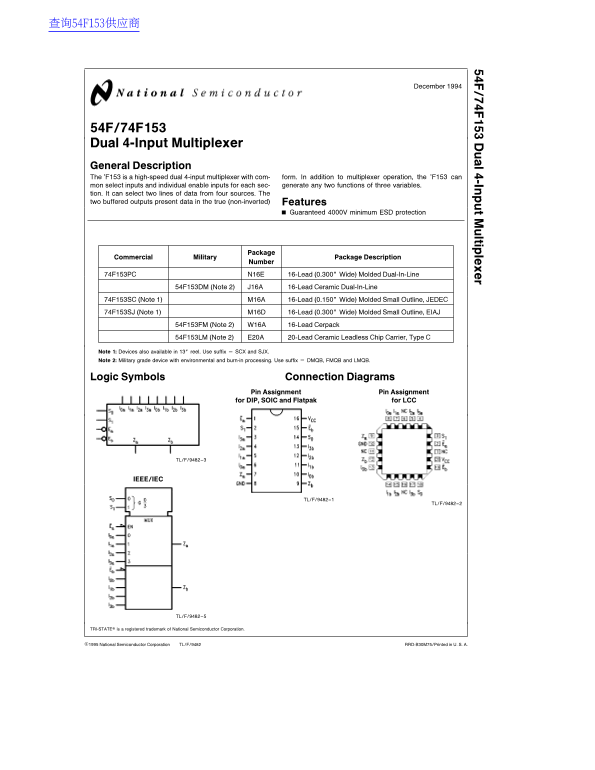

Page 1 Text Content
December
-In ltip le
54F/74F153 Dual 4-Input Multiplexer General Description
The ’F153 is high-speed dual 4-input multiplexer with com- form. In addition to multiplexer operation, the ’F153 can mon select inputs and individual enable inputs for each sec- generate any two functions of three variables.
tion. It can select two lines of data from four sources. The two buffered outputs present data in the true (non-inverted) Features
Guaranteed 4000V minimum ESD protection
Package
Commercial Military Package Description
Number
74F153PC N16E 16-Lead (0.300× Wide) Molded Dual-In-Line
54F153DM (Note 2) J16A 16-Lead Ceramic Dual-In-Line
74F153SC (Note 1) M16A 16-Lead (0.150× Wide) Molded Small Outline, JEDEC
74F153SJ (Note 1) M16D 16-Lead (0.300× Wide) Molded Small Outline, EIAJ
54F153FM (Note 2) W16A 16-Lead Cerpack
54F153LM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type
Note 1: Devices also available in 13× reel. Use suffix SCX and SJX. Note 2: Military grade device with environmental and burn-in processing. Use suffix DMQB, FMQB and LMQB.
Logic Symbols Connection Diagrams
Pin Assignment Pin Assignment for DIP, SOIC and Flatpak for LCC
TL/F/9482–3
IEEE/IEC
TL/F/9482–1
TL/F/9482–2
TL/F/9482–5
TRI-STATEÉ is registered trademark of National Semiconductor Corporation.
C1995 National Semiconductor Corporation TL/F/9482 RRD-B30M75/Printed in U. S. A.
