National Semiconductor 54F / 74F02 Data Sheet
Summary
Utilize this datasheet for the Quad 2-Input NOR Gate logic IC, a core component for digital circuit design. This manual provides comprehensive technical specifications, including electrical characteristics, absolute maximum ratings, and package options (DIP/SOIC) for both commercial and military applications. It details optimal operating ranges, pin assignments, and performance metrics necessary for hardware engineers and electronics professionals to reliably integrate this foundational logic gate into their systems.
Page 1 Text Content
查询54F02DM供应商
54F/74F02 uad 2-Input ate
December

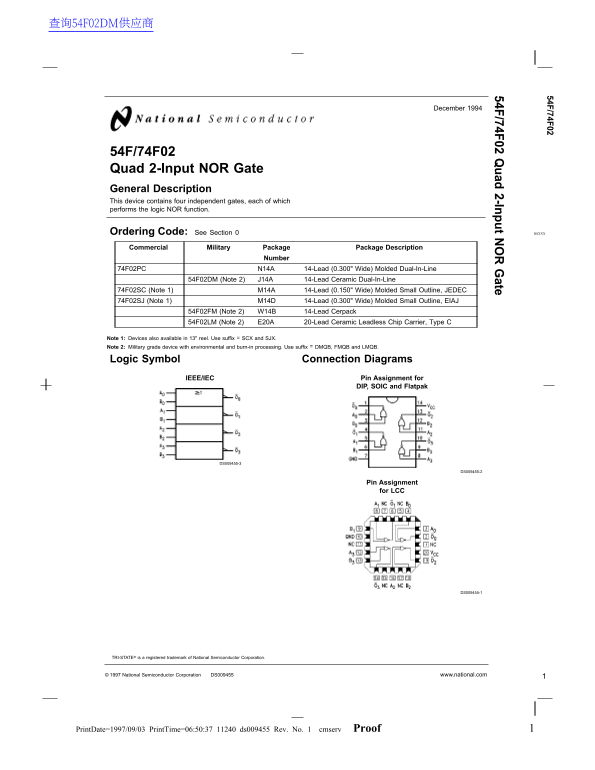

54F/74F02 Quad 2-Input NOR Gate General Description This device contains four independent gates, each of which performs the logic NOR function.
Ordering Code: See Section DSXXX
Commercial Military Package Package Description
Number
74F02PC N14A 14-Lead (0.300" Wide) Molded Dual-In-Line
54F02DM (Note 2) J14A 14-Lead Ceramic Dual-In-Line
74F02SC (Note 1) M14A 14-Lead (0.150" Wide) Molded Small Outline, JEDEC 74F02SJ (Note 1) M14D 14-Lead (0.300" Wide) Molded Small Outline, EIAJ
54F02FM (Note 2) W14B 14-Lead Cerpack 54F02LM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type
Note 1: Devices also available in 13" reel. Use suffix SCX and SJX. Note 2: Military grade device with environmental and burn-in processing. Use suffix DMQB, FMQB and LMQB.
Logic Symbol Connection Diagrams
IEEE/IEC Pin Assignment for
DIP, SOIC and Flatpak
DS009455-3
DS009455-2
Pin Assignment for LCC
DS009455-1
