Fairchild 54F 74F10 Data Handbook

Summary

This manual details the 54F/74F10 Triple 3-Input NAND Gate, a high-speed logic device containing three independent gates. It covers electrical characteristics, pin assignments, and packaging options for commercial and military applications.

📄 Preview ‹ PAGE OF 6 ›

‹

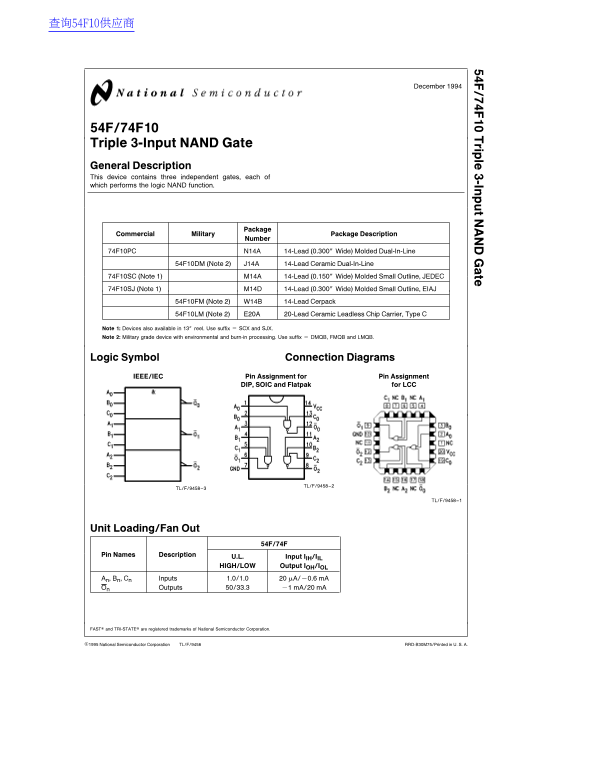

Fairchild 54F 74F10 Data Handbook - Page 1

›

Page 1 Text Content

December

rip le -In te

54F/74F10 Triple 3-Input NAND Gate General Description This device contains three independent gates, each of which performs the logic NAND function.

Package

Commercial Military Package Description

Number

74F10PC N14A 14-Lead (0.300× Wide) Molded Dual-In-Line

54F10DM (Note 2) J14A 14-Lead Ceramic Dual-In-Line

74F10SC (Note 1) M14A 14-Lead (0.150× Wide) Molded Small Outline, JEDEC

74F10SJ (Note 1) M14D 14-Lead (0.300× Wide) Molded Small Outline, EIAJ

54F10FM (Note 2) W14B 14-Lead Cerpack

54F10LM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type

Note 1: Devices also available in 13× reel. Use suffix SCX and SJX. Note 2: Military grade device with environmental and burn-in processing. Use suffix DMQB, FMQB and LMQB.

Logic Symbol Connection Diagrams

IEEE/IEC Pin Assignment for Pin Assignment

DIP, SOIC and Flatpak for LCC

TL/F/9458–2

TL/F/9458–3

TL/F/9458–1

Unit Loading/Fan Out

Pin Names Description U.L. Input IIH/IIL

HIGH/LOW Output IOH/IOL

An, Bn, Cn Inputs 1.0/1.0 m A/b0.6 m A

On Outputs 50/33.3 b1 m A/20 m A

FASTÉ and TRI-STATEÉ are registered trademarks of National Semiconductor Corporation.

C1995 National Semiconductor Corporation TL/F/9458 RRD-B30M75/Printed in U. S. A.

Page Summary Contents For Fairchild 54F 74F10 Data Handbook

Page 1 December rip le -In te 54F/74F10 Triple 3-Input NAND Gate General Description This device contains three independent gates, each of which performs the logic NAND function. Package Commercial Military ...

Page 2 Absolute Maximum Ratings (Note 1) Recommended Operating If Military/Aerospace specified devices are required, Conditions please contact the National Semiconductor Sales Free Air Ambient Temperature Of...

Page 3 AC Electrical Characteristics TA a25§C TA, VCC Mil TA, VCC Com Symbol Parameter VCC a5.0V Units CL p F CL p F CL p F Min Typ Max Min Max Min Max t PLH Propagation Delay 2.4 3.7 5.0 2.0 7.0 2.4 6.0 t P...

Page 4 Physical Dimensions inches (millimeters) (Continued) 14-Lead Ceramic Dual-In-Line Package (D) NS Package Number J14A 14-Lead (0.150× Wide) Molded Small Outline Package, JEDEC (S) NS Package Number M14...

Page 5 Physical Dimensions inches (millimeters) (Continued) 14-Lead (0.300× Wide) Molded Small Outline Package, EIAJ (SJ) NS Package Number M14D 14-Lead (0.300× Wide) Molded Dual-In-Line Package (P) NS Packa...

Page 6 ri le -I te Physical Dimensions inches (millimeters) (Continued) 14-Lead Ceramic Flatpak (F) NS Package Number W14B LIFE SUPPORT POLICY NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPO...

Manual Details

Brand	Fairchild
Pages	6
File Size	141.40 KB
Published	June 16, 2026

5 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the difference between the 54F and 74F versions?

The 54F series is for military use (-55°C to 125°C), while the 74F series is for commercial use (0°C to 70°C).

What packages are available for this NAND gate?

It is available in DIP, SOIC (JEDEC and EIAJ), Flatpak, and Leadless Chip Carrier packages.

What is the recommended power supply voltage?

The recommended supply voltage (Vcc) is 4.5V to 5.5V for both commercial and military versions.
