Fairchild 74F125 Data Handbook
Summary
The 74F125 is a versatile Quad Buffer IC designed for digital signal enhancement, buffering, and isolation. Featuring robust 3-state outputs and high impedance inputs, it ensures signal integrity in complex electronic systems. This technical guide provides circuit designers with essential specifications, including detailed absolute maximum ratings, DC/AC electrical characteristics, and various package options (SOIC, SOP, PDIP). It is an indispensable resource for engineers implementing reliable logic buffers into modern digital circuits.
Page 1 Text Content

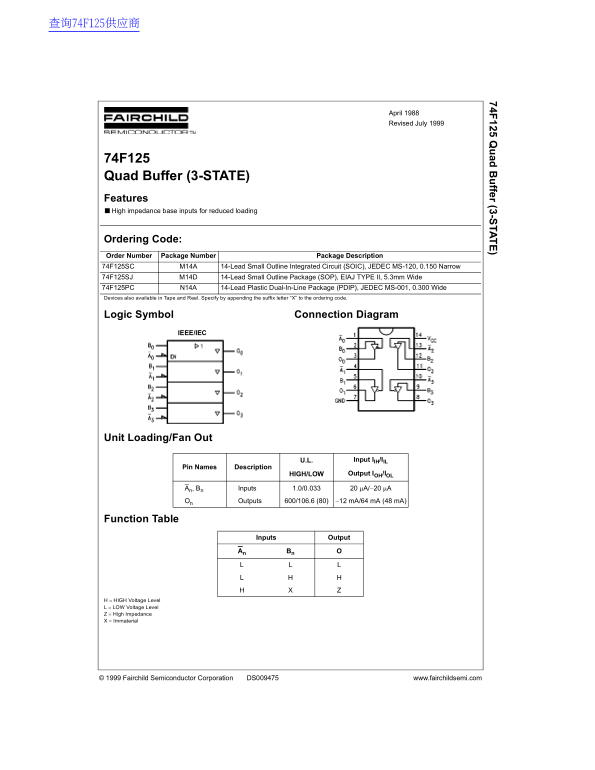

74F 125 Q ad ffer (3-S TA
April 1988 Revised July 1999
74F125 Quad Buffer (3-STATE) Features High impedance base inputs for reduced loading
Ordering Code: Order Number Package Number Package Description 74F125SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 74F125SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74F125PC N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol Connection Diagram
IEEE/IEC
Unit Loading/Fan Out
U.L. Input IIH/IIL
Pin Names Description
HIGH/LOW Output IOH/IOL
An, Bn Inputs 1.0/0.033 20 µA/−20 µA
On Outputs 600/106.6 (80) −12 m A/64 m A (48 m A)
Function Table
Inputs Output
An Bn
H = HIGH Voltage Level L = LOW Voltage Level Z = High Impedance X = Immaterial
