Fairchild FSL116HR Data Handbook

Summary

The FSL116HR is an advanced integrated Pulse Width Modulator controller designed to create highly efficient Switched-Mode Power Supplies (SMPS) with minimal external components. This essential device features avalanche-rugged SenseFET technology and built-in protections (like UVLO, OVP, and soft-start). The accompanying manual provides comprehensive design guidelines, technical diagrams, and operational details for implementing low-power AC/DC solutions in various applications, including VCR/DVD players, home appliances, and adapters. It is the ideal component solution for electronics engineers needing reliable, high-performance power regulation.

📄 Preview PAGE OF 13

Page 1 Text Content

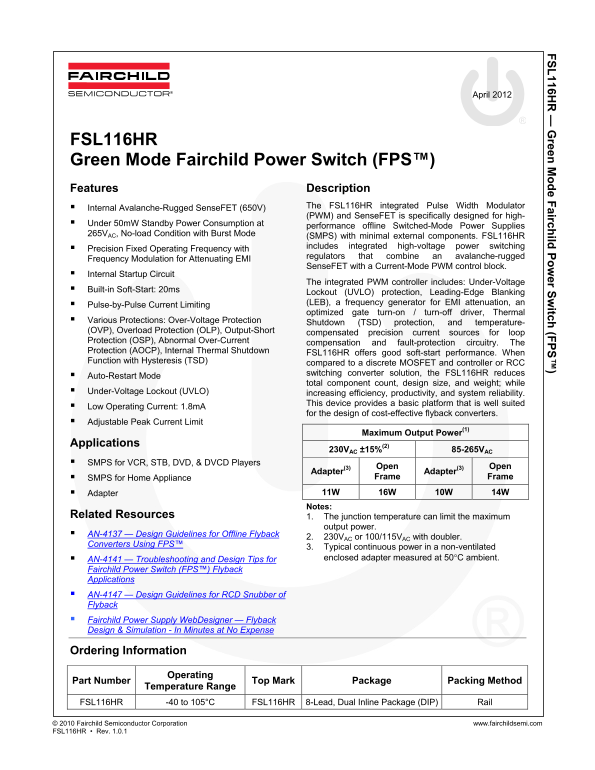

116H reen e F airch ild er S itch (F

April 2012

FSL116HR Green Mode Fairchild Power Switch (FPS™) Features Description

 Internal Avalanche-Rugged Sense FET (650V) The FSL116HR integrated Pulse Width Modulator (PWM) and Sense FET is specifically designed for high-

 Under 50m W Standby Power Consumption at

performance offline Switched-Mode Power Supplies

265VAC, No-load Condition with Burst Mode

(SMPS) with minimal external components. FSL116HR  Precision Fixed Operating Frequency with includes integrated high-voltage power switching regulators that combine an avalanche-rugged

Frequency Modulation for Attenuating EMI

Sense FET with a Current-Mode PWM control block.

 Internal Startup Circuit

The integrated PWM controller includes: Under-Voltage

 Built-in Soft-Start: 20ms

Lockout (UVLO) protection, Leading-Edge Blanking  Pulse-by-Pulse Current Limiting (LEB), a frequency generator for EMI attenuation, an optimized gate turn-on / turn-off driver, Thermal

 Various Protections: Over-Voltage Protection

Shutdown (TSD) protection, and temperature-

(OVP), Overload Protection (OLP), Output-Short

compensated precision current sources for loop

Protection (OSP), Abnormal Over-Current

compensation and fault-protection circuitry. The

Protection (AOCP), Internal Thermal Shutdown

FSL116HR offers good soft-start performance. When

Function with Hysteresis (TSD)

compared to a discrete MOSFET and controller or RCC switching converter solution, the FSL116HR reduces

 Auto-Restart Mode

total component count, design size, and weight; while

 Under-Voltage Lockout (UVLO) increasing efficiency, productivity, and system reliability.

This device provides a basic platform that is well suited

 Low Operating Current: 1.8m A

for the design of cost-effective flyback converters.

 Adjustable Peak Current Limit

Maximum Output Power(1)

Applications

230VAC ±15%(2) 85-265VAC

 SMPS for VCR, STB, DVD, & DVCD Players

Open Open

Adapter(3) Adapter(3)

 SMPS for Home Appliance Frame Frame

 Adapter 11W 16W 10W 14W Notes:

Related Resources 1. The junction temperature can limit the maximum

output power.

 AN-4137 — Design Guidelines for Offline Flyback

2. 230VAC or 100/115VAC with doubler.

Converters Using FPS™

3. Typical continuous power in a non-ventilated  AN-4141 — Troubleshooting and Design Tips for enclosed adapter measured at 50°C ambient.

Fairchild Power Switch (FPS™) Flyback Applications  AN-4147 — Design Guidelines for RCD Snubber of Flyback  Fairchild Power Supply Web Designer — Flyback Design & Simulation - In Minutes at No Expense

Ordering Information

Operating

Part Number Top Mark Package Packing Method

Temperature Range

FSL116HR -40 to 105°C FSL116HR 8-Lead, Dual Inline Package (DIP) Rail

© 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com FSL116HR • Rev. 1.0.1

Page Summary Contents For Fairchild FSL116HR Data Handbook

Page 1 116H reen e F airch ild er S itch (F April 2012 FSL116HR Green Mode Fairchild Power Switch (FPS™) Features Description  Internal Avalanche-Rugged Sense FET (650V) The FSL116HR integrated Pulse Width ...
Page 2 116H reen e F airch ild er S itch (F Typical Application Diagram Figure 1. Typical Application Internal Block Diagram VSTR ra in VB L/V VCC Good Inte rna VCC VCC andom Frequency OSC ID IFB Gene ra tor...
Page 3 116H reen e F airch ild er S itch (F Pin Configuration Figure 3. Pin Configuration Pin Definitions Pin # Name Description 1 GND Ground. Sense FET source terminal on the primary side and internal contr...
Page 4 116H reen e F airch ild er S itch (F Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended op...
Page 5 116H reen e F airch ild er S itch (F Electrical Characteristics TA = 25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Sense FET Section BVDSS Drain-Source Breakdown Vol...
Page 6 116H reen e F airch ild er S itch (F Electrical Characteristics (Continued) TA = 25°C unless otherwise specified. Symbol Parameter Conditions Min. Typ. Max. Unit Total Device Section Operating Supply ...
Page 7 116H reen e F airch ild er S itch (F Typical Performance Characteristics These characteristic graphs are normalized at TA=25. Operating Frequency (f OSC) Maximum Duty Cycle (DMAX) Figure 4. Operating ...
Page 8 116H reen e F airch ild er S itch (F Typical Performance Characteristics (Continued) These characteristic graphs are normalized at TA=25. Startup Charging Current (ICH) Peak Current Limit (ILIM) Figur...
Page 9 116H reen e F airch ild er S itch (F Functional Description Startup Feedback Control At startup, an internal high-voltage current source FSL116HR employs Current-Mode control, as shown in supplies the...
Page 10 116H reen e F airch ild er S itch (F Abnormal Over-Current Protection (AOCP) When the secondary rectifier diodes or the transformer pin are shorted, a steep current with extremely high di/dt can flow ...
Page 11 116H reen e F airch ild er S itch (F continues, but the current limit is fixed internally to Output-Short Protection (OSP) minimize flux density in the transformer. The fixed If the output is shorted,...
Page 12 116H reen e F airch ild er S itch (F Physical Dimensions 5.08 MAX 0.33 MIN NOTES: UNLESS OTHERWISE SPECIFIED A) THIS PACKAGE CONFORMS TO JEDEC MS-001 VARIATION BA B) ALL DIMENSIONS ARE IN MILLIMETERS....
Page 13 116H reen e F airch ild er S itch (F © 2010 Fairchild Semiconductor Corporation www.fairchildsemi.com FSL116HR • Rev. 1.0.1 13
