Fairchild Fan7390 Data Handbook
Summary
This advanced, high-current gate-drive IC is a sophisticated monolithic device designed for robust power conversion applications. Capable of driving high-speed MOSFETs and IGBTs up to +600V, it ensures stable, reliable operation even under severe common-mode noise conditions. The manual serves as a comprehensive technical reference, detailing features such as built-in Under-Voltage Lockout (UVLO), source/sink capability (4.5A), electrical ratings, pinouts, and application circuits for half-bridge topologies. It is primarily intended for engineers designing motor drives, switching power supplies (SMPS), DC-DC converters, and industrial high-power pulse generation systems.

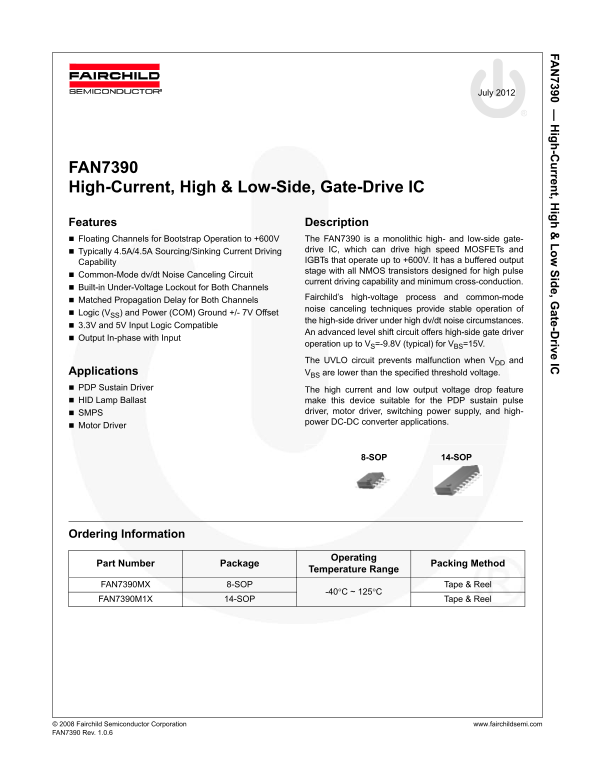

Page 1 Text Content
90 — ig -C rren t, H ig id e, G ate-D rive IC
July 2012
FAN7390 High-Current, High & Low-Side, Gate-Drive IC
Features Description Floating Channels for Bootstrap Operation to +600V The FAN7390 is a monolithic high- and low-side gate-
Typically 4.5A/4.5A Sourcing/Sinking Current Driving drive IC, which can drive high speed MOSFETs and Capability IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse
Common-Mode dv/dt Noise Canceling Circuit
current driving capability and minimum cross-conduction.
Built-in Under-Voltage Lockout for Both Channels
Fairchild’s high-voltage process and common-mode
Matched Propagation Delay for Both Channels
noise canceling techniques provide stable operation of
Logic (VSS) and Power (COM) Ground +/- 7V Offset
the high-side driver under high dv/dt noise circumstances.
3.3V and 5V Input Logic Compatible
An advanced level shift circuit offers high-side gate driver
Output In-phase with Input
operation up to VS=-9.8V (typical) for VBS=15V.
The UVLO circuit prevents malfunction when VDD and
Applications VBS are lower than the specified threshold voltage. PDP Sustain Driver
The high current and low output voltage drop feature
HID Lamp Ballast make this device suitable for the PDP sustain pulse
SMPS driver, motor driver, switching power supply, and high- power DC-DC converter applications.
Motor Driver
8-SOP 14-SOP
Ordering Information
Operating
Part Number Package Packing Method
Temperature Range
FAN7390MX 8-SOP Tape & Reel
FAN7390M1X 14-SOP Tape & Reel
