An advanced integrated PWM controller and SenseFET solution for high-efficiency offline Switch-Mode Power Supply (SMPS) applications, ideal for consumer electronics like flat-screen TV monitors and set-top boxes. This device simplifies complex designs by offering built-in protection features—including overload, over-voltage, and soft-start—while maximizing performance and reliability. The manual serves as a comprehensive technical resource, providing detailed pin definitions, absolute maximum ratings, application circuits, and mechanical specifications for electronics engineers designing cost-effective, stable power supplies.

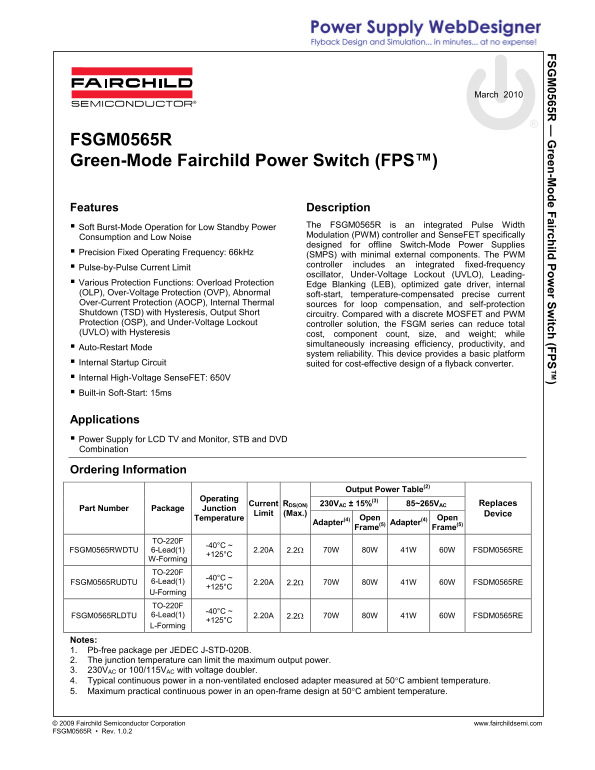

Page 1 Text Content
FSG 0565R reen-M ode Fairchild Pow er Sw itch (FPS™
March 2010
FSGM0565R Green-Mode Fairchild Power Switch (FPS™)
Features Description
Soft Burst-Mode Operation for Low Standby Power The FSGM0565R is an integrated Pulse Width Modulation (PWM) controller and Sense FET specifically
Consumption and Low Noise
designed for offline Switch-Mode Power Supplies
Precision Fixed Operating Frequency: 66k Hz
(SMPS) with minimal external components. The PWM controller includes an integrated fixed-frequency
Pulse-by-Pulse Current Limit
oscillator, Under-Voltage Lockout (UVLO), Leading-
Various Protection Functions: Overload Protection Edge Blanking (LEB), optimized gate driver, internal (OLP), Over-Voltage Protection (OVP), Abnormal soft-start, temperature-compensated precise current Over-Current Protection (AOCP), Internal Thermal sources for loop compensation, and self-protection Shutdown (TSD) with Hysteresis, Output Short circuitry. Compared with a discrete MOSFET and PWM Protection (OSP), and Under-Voltage Lockout controller solution, the FSGM series can reduce total (UVLO) with Hysteresis cost, component count, size, and weight; while
simultaneously increasing efficiency, productivity, and
Auto-Restart Mode
system reliability. This device provides a basic platform
Internal Startup Circuit suited for cost-effective design of a flyback converter. Internal High-Voltage Sense FET: 650V Built-in Soft-Start: 15ms
Applications Power Supply for LCD TV and Monitor, STB and DVD Combination Ordering Information
Output Power Table(2)
Operating
Current RDS(ON) 230VAC ± 15%(3) 85~265VAC Replaces
Part Number Package Junction
Limit (Max.) Device
Temperature Open Open
Adapter(4) Adapter(4)
Frame(5) Frame(5)
TO-220F
FSGM0565RWDTU 6-Lead(1)
+125°C 2.20A 2.2Ω 70W 80W 41W 60W FSDM0565RE
W-Forming TO-220F
FSGM0565RUDTU 6-Lead(1)
+125°C 2.20A 2.2Ω 70W 80W 41W 60W FSDM0565RE
U-Forming TO-220F
FSGM0565RLDTU 6-Lead(1)
+125°C 2.20A 2.2Ω 70W 80W 41W 60W FSDM0565RE
L-Forming
Notes: 1. Pb-free package per JEDEC J-STD-020B. 2. The junction temperature can limit the maximum output power. 3. 230VAC or 100/115VAC with voltage doubler. 4. Typical continuous power in a non-ventilated enclosed adapter measured at 50°C ambient temperature. 5. Maximum practical continuous power in an open-frame design at 50°C ambient temperature.
© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com FSGM0565R • Rev. 1.0.2
Page Summary Contents For Fairchild FSGM0565R Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 18 |
| File Size | 928.99 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety features are built into the FSGM series controller?
It incorporates Overload Protection (OLP), Over-Voltage Protection (OVP), Auto-Output Current Protection (AOCP), and Temperature Shutdown (TSD).
What is the trigger point for overcurrent protection on the feedback pin?
If the voltage of Pin 3 reaches 6V, the overload protection triggers, which shuts down the FPS.
Does the device support various input AC voltages?
It operates on 230VAC ± 15% or can be configured for 85~265V using a voltage doubler.
How is the maximum continuous power assessed when designing an adapter?
The junction temperature limits the maximum output power, which must be accounted for in the design.
