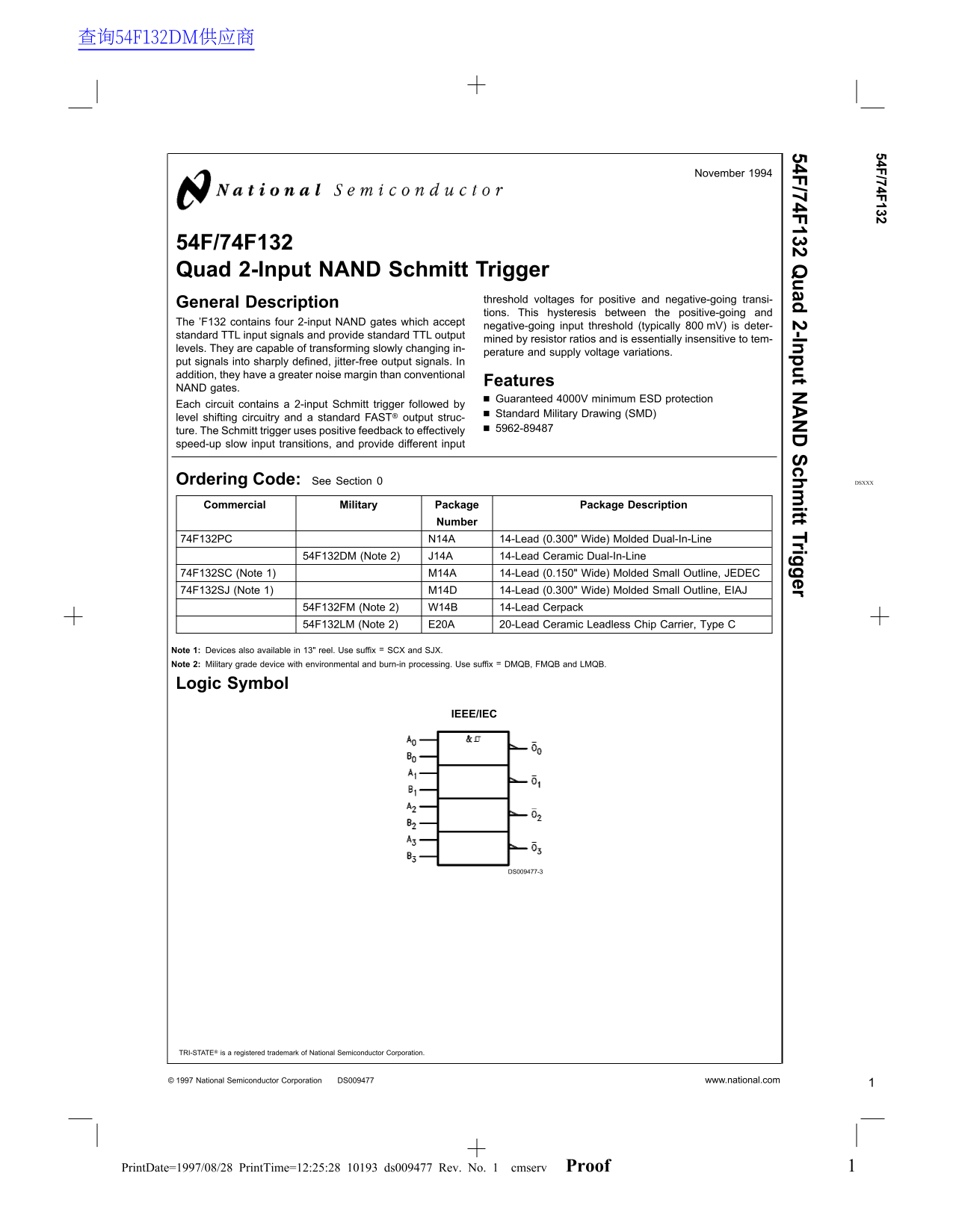

54F/74F132 Quad 2-Input NAND Schmitt Trigger
threshold voltages for positive and negative-going transi-
General Description
tions. This hysteresis between the positive-going and
The ’F132 contains four 2-input NAND gates which accept
negative-going input threshold (typically m V) is deter-
standard TTL input signals and provide standard TTL output
mined by resistor ratios and is essentially insensitive to tem-
levels. They are capable of transforming slowly changing in-
perature and supply voltage variations.
put signals into sharply defined, jitter-free output signals. In addition, they have greater noise margin than conventional
Features
NAND gates.
Guaranteed 4000V minimum ESD protection
Each circuit contains 2-input Schmitt trigger followed by
Standard Military Drawing (SMD)
level shifting circuitry and standard FAST® output struc-
ture. The Schmitt trigger uses positive feedback to effectively 5962-89487
speed-up slow input transitions, and provide different input
Ordering Code: See Section DSXXX
Commercial Military Package Package Description
Number
74F132PC N14A 14-Lead (0.300" Wide) Molded Dual-In-Line
54F132DM (Note 2) J14A 14-Lead Ceramic Dual-In-Line
74F132SC (Note 1) M14A 14-Lead (0.150" Wide) Molded Small Outline, JEDEC 74F132SJ (Note 1) M14D 14-Lead (0.300" Wide) Molded Small Outline, EIAJ
54F132FM (Note 2) W14B 14-Lead Cerpack 54F132LM (Note 2) E20A 20-Lead Ceramic Leadless Chip Carrier, Type
Note 1: Devices also available in 13" reel. Use suffix SCX and SJX. Note 2: Military grade device with environmental and burn-in processing. Use suffix DMQB, FMQB and LMQB.
Logic Symbol
IEEE/IEC
DS009477-3
TRI-STATE® is registered trademark of National Semiconductor Corporation.
National Semiconductor Corporation DS009477 www.national.com
Print Date=1997/08/28 Print Time=12:25:28 ds009477 Rev. No. cmserv Proof
