NATIONAL MNLM710-X REV 1A DATA SHEET
Summary
This comprehensive manual details the technical specifications for a robust Voltage Comparator, designed for mission-critical applications. It provides engineers with detailed parameters covering DC characteristics, operational stability across extreme temperature ranges (down to -55°C), and performance data gathered from rigorous MIL-STD testing. Ideal for embedded systems designers and electronics professionals requiring high accuracy and reliable voltage comparison circuitry in demanding industrial or defense environments.

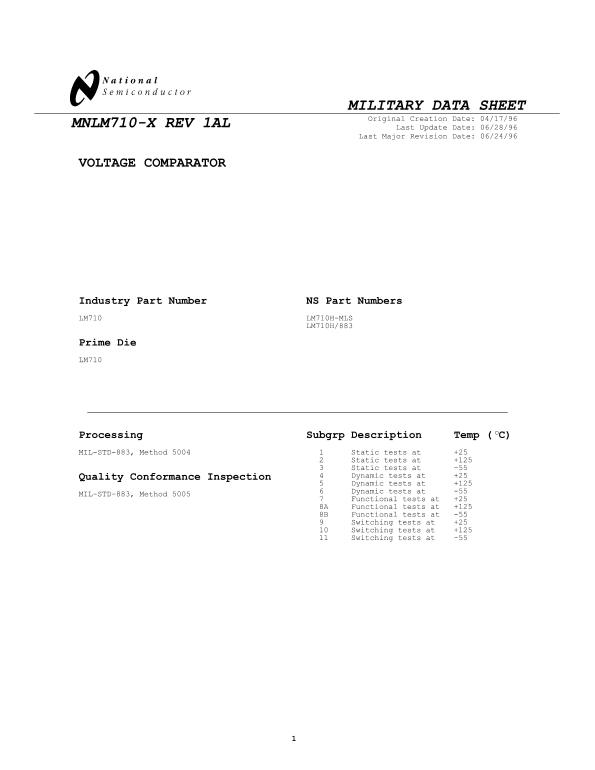

Page 1 Text Content
MILITARY DATA SHEET Original Creation Date: 04/17/96
MNLM710-X REV 1AL
Last Update Date: 06/28/96
Last Major Revision Date: 06/24/96
VOLTAGE COMPARATOR
Industry Part Number NS Part Numbers LM710 LM710H-MLS
LM710H/883
Prime Die LM710
Processing Subgrp Description Temp ( C)o MIL-STD-883, Method 5004 Static tests at +25
Static tests at +125 Static tests at -55 Quality Conformance Inspection Dynamic tests at +25 Dynamic tests at +125 Dynamic tests at -55
MIL-STD-883, Method 5005
Functional tests at +25
8A Functional tests at +125 8B Functional tests at -55
Switching tests at +25 Switching tests at +125 Switching tests at -55
Page Summary Contents For NATIONAL MNLM710-X REV 1A DATA SHEET
Manual Details
| Brand | National |
|---|---|
| Pages | 3 |
| File Size | 17.32 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical operating temperature range for the LM710 comparator?
The device supports testing and operation across multiple temperatures: -55°C, +25°C, and +125°C.
What are the specifications for input offset voltage under different temperatures?
At 25°C, the input offset voltage (Vo) is specified between -3mV and +3mV. At -55°C, it is specified as a maximum of -2mV.
How is the Common Mode Rejection Ratio (CMRR) rated?
The CMRR is guaranteed to be 80 dB when tested with Vin=10V(p-p).
