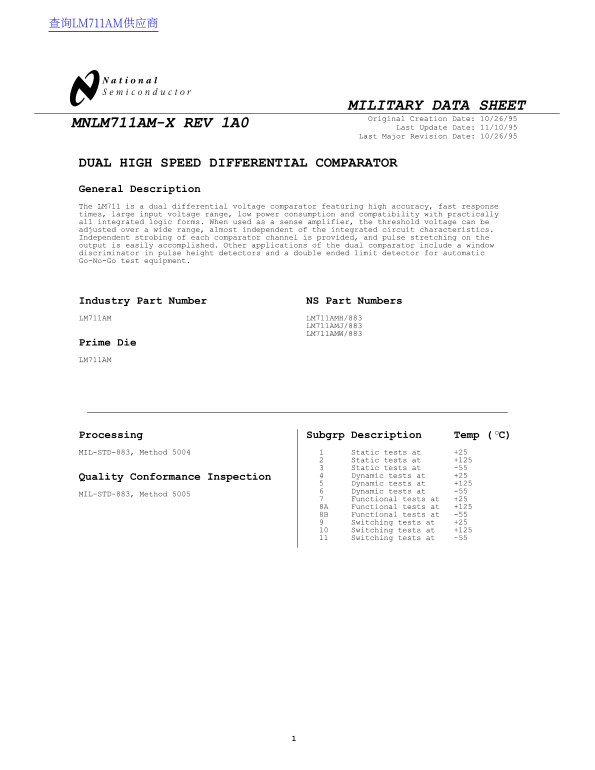

Page 1 Text Content
查询LM711AM供应商
MILITARY DATA SHEET Original Creation Date: 10/26/95
MNLM711AM-X REV 1A0
Last Update Date: 11/10/95
Last Major Revision Date: 10/26/95
DUAL HIGH SPEED DIFFERENTIAL COMPARATOR General Description The LM711 is a dual differential voltage comparator featuring high accuracy, fast response times, large input voltage range, low power consumption and compatibility with practically all integrated logic forms. When used as a sense amplifier, the threshold voltage can be adjusted over a wide range, almost independent of the integrated circuit characteristics. Independent strobing of each comparator channel is provided, and pulse stretching on the output is easily accomplished. Other applications of the dual comparator include a window discriminator in pulse height detectors and a double ended limit detector for automatic Go-No-Go test equipment.
Industry Part Number NS Part Numbers LM711AM LM711AMH/883
LM711AMJ/883 LM711AMW/883
Prime Die LM711AM
Processing Subgrp Description Temp ( C)o MIL-STD-883, Method 5004 Static tests at +25
Static tests at +125 Static tests at -55 Quality Conformance Inspection Dynamic tests at +25 Dynamic tests at +125 Dynamic tests at -55
MIL-STD-883, Method 5005
Functional tests at +25
8A Functional tests at +125 8B Functional tests at -55
Switching tests at +25 Switching tests at +125 Switching tests at -55
