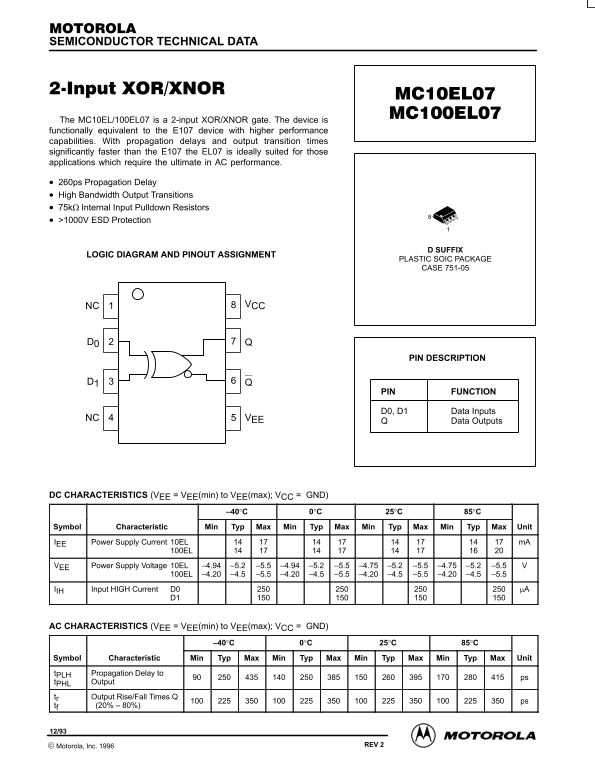

Motorola MC10EL07 MC100EL07 User Guide (1)

SEMICONDUCTOR TECHNICAL DATA

The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to the E107 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107 the EL07 is ideally suited for those applications which require the ultimate in AC performance.

260ps Propagation Delay High Bandwidth Output Transitions 75kΩ Internal Input Pulldown Resistors >1000V ESD Protection

D SUFFIX

LOGIC DIAGRAM AND PINOUT ASSIGNMENT

PLASTIC SOIC PACKAGE CASE 751-05

8NC VCC

PIN DESCRIPTION

PIN FUNCTION

D0, D1 Data Inputs

NC VEE

Data Outputs

DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL m A

100EL

VEE Power Supply Voltage 10EL –4.94 –5.2 –5.5 –4.94 –5.2 –5.5 –4.75 –5.2 –5.5 –4.75 –5.2 –5.5

100EL –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5 –4.20 –4.5 –5.5

IIH Input HIGH Current D0 µA

AC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit t PLH Propagation Delay to

t PHL Output tr Output Rise/Fall Times Q

tf (20% – 80%)

3–1 REV 2 Motorola, Inc. 1996
