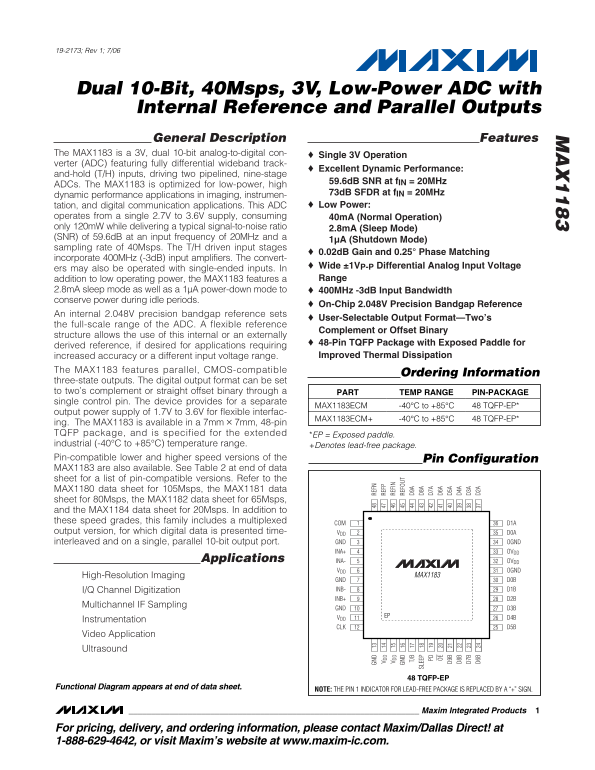

MAXIM MAX1183 Dual 10-Bit, 40Msps, 3V, Low-Power ADC with Internal Reference and Parallel Outputs

19-2173; Rev 1; 7/06

Dual 10-Bit, 40Msps, 3V, Low-Power ADC with Internal Reference and Parallel Outputs

General Description Features

The MAX1183 is a 3V, dual 10-bit analog-to-digital con- Single 3V Operation verter (ADC) featuring fully differential wideband track-

Excellent Dynamic Performance:

and-hold (T/H) inputs, driving two pipelined, nine-stage

59.6d B SNR at f IN = 20MHz

ADCs. The MAX1183 is optimized for low-power, high

73d B SFDR at f IN = 20MHz

dynamic performance applications in imaging, instrumen-

tation, and digital communication applications. This ADC Low Power:

operates from a single 2.7V to 3.6V supply, consuming 40m A (Normal Operation) only 120m W while delivering a typical signal-to-noise ratio 2.8m A (Sleep Mode) (SNR) of 59.6d B at an input frequency of 20MHz and a

1µA (Shutdown Mode)

sampling rate of 40Msps. The T/H driven input stages

0.02d B Gain and 0.25° Phase Matching

incorporate 400MHz (-3d B) input amplifiers. The convert-

Wide ±1VP-P Differential Analog Input Voltage

ers may also be operated with single-ended inputs. In

addition to low operating power, the MAX1183 features a Range

2.8m A sleep mode as well as a 1µA power-down mode to 400MHz -3d B Input Bandwidth conserve power during idle periods.

On-Chip 2.048V Precision Bandgap Reference

An internal 2.048V precision bandgap reference sets

User-Selectable Output Format—Two’s

the full-scale range of the ADC. A flexible reference

Complement or Offset Binary

structure allows the use of this internal or an externally

48-Pin TQFP Package with Exposed Paddle for

derived reference, if desired for applications requiring

increased accuracy or a different input voltage range. Improved Thermal Dissipation

The MAX1183 features parallel, CMOS-compatible

GN RE FN Ordering Information

three-state outputs. The digital output format can be set

RE FP

to two’s complement or straight offset binary through a RE FI PART TEMP RANGE PIN-PACKAGE single control pin. The device provides for a separate GN RE FO UT

MAX1183ECM -40°C to +85°C 48 TQFP-EP*

output power supply of 1.7V to 3.6V for flexible interfac- T/ D9

MAX1183ECM+ -40°C to +85°C 48 TQFP-EP*

ing. The MAX1183 is available in a 7mm ✕ SL EE 7mm, 48-pin D8 PD D7

TQFP package, and is specified for the extended *EP = Exposed paddle.

OE D6

industrial (-40°C to +85°C) temperature range. +Denotes lead-free package.

Pin-compatible lower and higher speed versions of the D8 D4 Pin Configuration MAX1183 are also available. See Table 2 at end of data D7 D3

sheet for a list of pin-compatible versions. Refer to the D6 D2

MAX1180 data sheet for 105Msps, the MAX1181 data sheet for 80Msps, the MAX1182 data sheet for 65Msps, and the MAX1184 data sheet for 20Msps. In addition to these speed grades, this family includes a multiplexed COM D1A output version, for which digital data is presented time- VDD D0A

interleaved and on a single, parallel 10-bit output port. GND OGND INA+ OVDD

Applications INA- OVDD

VDD OGND

High-Resolution Imaging MAX1183

GND D0B I/Q Channel Digitization INB- D1B INB+ D2B

Multichannel IF Sampling

GND D3B

VDD D4B

Instrumentation

CLK D5B

Video Application Ultrasound

48 TQFP-EP

Functional Diagram appears at end of data sheet.

NOTE: THE PIN 1 INDICATOR FOR LEAD-FREE PACKAGE IS REPLACED BY A “+” SIGN.

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
