19-2097; Rev 1; 2/07

EVALUATION KIT AVAILABLE

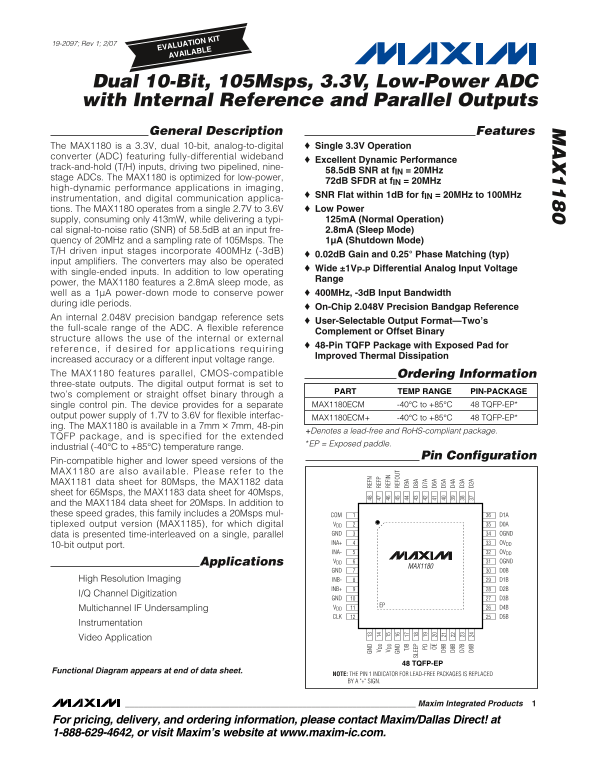

Dual 10-Bit, 105Msps, 3.3V, Low-Power ADC with Internal Reference and Parallel Outputs General Description Features The MAX1180 is a 3.3V, dual 10-bit, analog-to-digital Single 3.3V Operation converter (ADC) featuring fully-differential wideband

Excellent Dynamic Performance

track-and-hold (T/H) inputs, driving two pipelined, nine-

58.5d B SNR at f IN = 20MHz

stage ADCs. The MAX1180 is optimized for low-power,

72d B SFDR at f IN = 20MHz

high-dynamic performance applications in imaging,

SNR Flat within 1d B for f IN = 20MHz to 100MHz

instrumentation, and digital communication applica- tions. The MAX1180 operates from a single 2.7V to 3.6V Low Power supply, consuming only 413m W, while delivering a typi- 125m A (Normal Operation) cal signal-to-noise ratio (SNR) of 58.5d B at an input fre- 2.8m A (Sleep Mode) quency of 20MHz and a sampling rate of 105Msps. The 1µA (Shutdown Mode) T/H driven input stages incorporate 400MHz (-3d B)

0.02d B Gain and 0.25° Phase Matching (typ)

input amplifiers. The converters may also be operated

Wide ±1VP-P Differential Analog Input Voltage

with single-ended inputs. In addition to low operating

Range

power, the MAX1180 features a 2.8m A sleep mode, as well as a 1µA power-down mode to conserve power 400MHz, -3d B Input Bandwidth during idle periods.

On-Chip 2.048V Precision Bandgap Reference

An internal 2.048V precision bandgap reference sets

User-Selectable Output Format—Two’s

the full-scale range of the ADC. A flexible reference

Complement or Offset Binary

structure allows the use of the internal or external

48-Pin TQFP Package with Exposed Pad for

reference, if desired for applications requiring

Improved Thermal Dissipation

increased accuracy or a different input voltage range.

GN RE FN

The MAX1180 features parallel, CMOS-compatible Ordering Information

RE FP

three-state outputs. The digital output format is set to

RE FI

PART TEMP RANGE PIN-PACKAGE

two’s complement or straight offset binary through a

GN RE FO UT

single control pin. The device provides for a separate T/ D9 MAX1180ECM -40°C to +85°C 48 TQFP-EP*

output power supply of 1.7V to 3.6V for flexible interfac- SL EE D8

MAX1180ECM+ -40°C to +85°C 48 TQFP-EP* ing. The MAX1180 is available in a 7mm ✕ PD 7mm, 48-pin D7 +Denotes a lead-free and Ro HS-compliant package. OE D6

TQFP package, and is specified for the extended

D9 D5 *EP = Exposed paddle.

industrial (-40°C to +85°C) temperature range.

Pin Configuration

Pin-compatible higher and lower speed versions of the D7 D3

MAX1180 are also available. Please refer to the D6 D2

MAX1181 data sheet for 80Msps, the MAX1182 data sheet for 65Msps, the MAX1183 data sheet for 40Msps, and the MAX1184 data sheet for 20Msps. In addition to these speed grades, this family includes a 20Msps mul- COM D1A

tiplexed output version (MAX1185), for which digital VDD D0A

data is presented time-interleaved on a single, parallel GND OGND INA+ OVDD

10-bit output port.

INA- OVDD

Applications VDD OGND

MAX1180

GND D0B

High Resolution Imaging INB- D1B

INB+ D2B

I/Q Channel Digitization

GND D3B

Multichannel IF Undersampling VDD D4B CLK D5B

Instrumentation Video Application

48 TQFP-EP

Functional Diagram appears at end of data sheet.

NOTE: THE PIN 1 INDICATOR FOR LEAD-FREE PACKAGES IS REPLACED BY A "+" SIGN.

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
