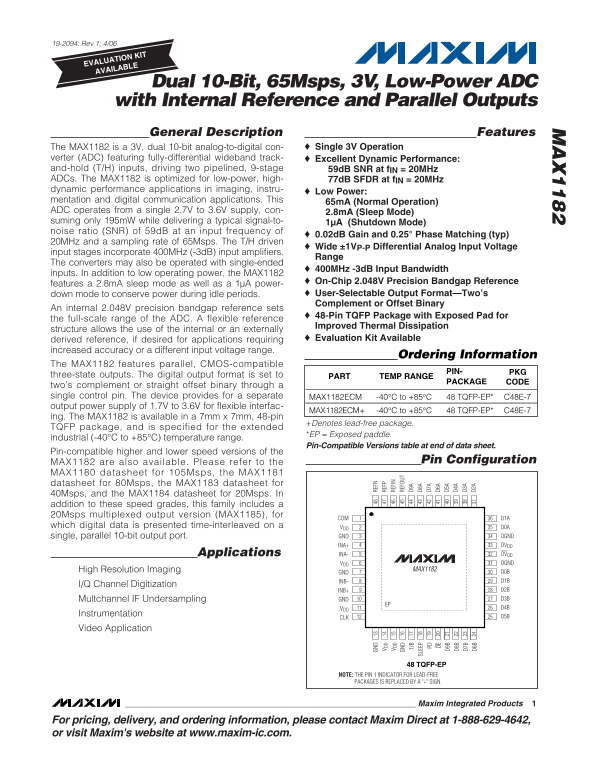

MAXIM MAX1182 Dual 10-Bit, 65Msps, 3V, Low-Power ADC with Internal Reference and Parallel Outputs

19-2094; Rev 1; 4/06

EVALUATION KIT AVAILABLE

Dual 10-Bit, 65Msps, 3V, Low-Power ADC with Internal Reference and Parallel Outputs General Description Features

The MAX1182 is a 3V, dual 10-bit analog-to-digital con- Single 3V Operation

verter (ADC) featuring fully-differential wideband track- Excellent Dynamic Performance: and-hold (T/H) inputs, driving two pipelined, 9-stage 59d B SNR at f IN = 20MHz ADCs. The MAX1182 is optimized for low-power, high- 77d B SFDR at f IN = 20MHz dynamic performance applications in imaging, instru-

Low Power:

mentation and digital communication applications. This

65m A (Normal Operation)

ADC operates from a single 2.7V to 3.6V supply, con- 2.8m A (Sleep Mode) suming only 195m W while delivering a typical signal-to- 1µA (Shutdown Mode) noise ratio (SNR) of 59d B at an input frequency of

0.02d B Gain and 0.25° Phase Matching (typ)

20MHz and a sampling rate of 65Msps. The T/H driven

Wide ±1VP-P Differential Analog Input Voltage

input stages incorporate 400MHz (-3d B) input amplifiers.

Range

The converters may also be operated with single-ended

400MHz -3d B Input Bandwidth

inputs. In addition to low operating power, the MAX1182

On-Chip 2.048V Precision Bandgap Reference

features a 2.8m A sleep mode as well as a 1µA power-

down mode to conserve power during idle periods. User-Selectable Output Format—Two’s Complement or Offset Binary

An internal 2.048V precision bandgap reference sets

48-Pin TQFP Package with Exposed Pad for

the full-scale range of the ADC. A flexible reference

Improved Thermal Dissipation

structure allows the use of the internal or an externally

derived reference, if desired for applications requiring Evaluation Kit Available

increased accuracy or a different input voltage range.

Ordering Information

The MAX1182 features parallel, CMOS-compatible

PIN- PKG

three-state outputs. The digital output format is set to GN RE FN PART TEMP RANGE

PACKAGE CODE

two’s complement or straight offset binary through a RE FP RE FI

single control pin. The device provides for a separate MAX1182ECM -40°C to +85°C 48 TQFP-EP* C48E-7

GN RE FO UT

output power supply of 1.7V to 3.6V for flexible interfac-

T/ D9 M AX 1182E C M + -40°C to +85°C 48 TQFP-EP* C48E-7

ing. The MAX1182 is available in a 7mm x 7mm, 48-pin

SL EE D8

+Denotes lead-free package.

TQFP package, and is specified for the extended PD D7

*EP = Exposed paddle. industrial (-40°C to +85°C) temperature range. OE D6 D9 D5 Pin-Compatible Versions table at end of data sheet.

Pin-compatible higher and lower speed versions of the

MAX1182 are also available. Please refer to the Pin Configuration

MAX1180 datasheet for 105Msps, the MAX1181 D6 D2 datasheet for 80Msps, the MAX1183 datasheet for 40Msps, and the MAX1184 datasheet for 20Msps. In addition to these speed grades, this family includes a 20Msps multiplexed output version (MAX1185), for

COM D1A

which digital data is presented time-interleaved on a VDD D0A

single, parallel 10-bit output port. GND OGND INA+ OVDD Applications INA- OVDD VDD OGND

High Resolution Imaging MAX1182

GND D0B INB- D1B

I/Q Channel Digitization

INB+ D2B Multchannel IF Undersampling GND D3B

VDD D4B

Instrumentation

CLK D5B

Video Application

48 TQFP-EP

NOTE: THE PIN 1 INDICATOR FOR LEAD-FREE PACKAGES IS REPLACED BY A "+" SIGN.
