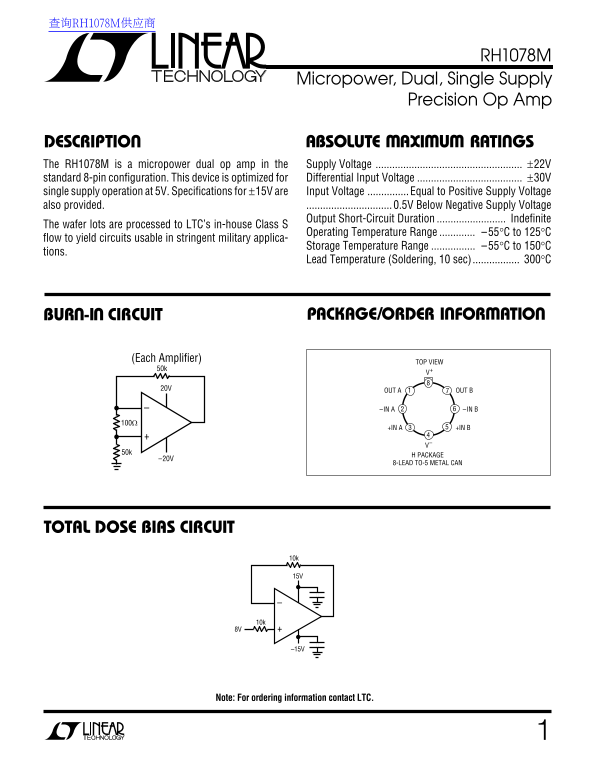

RH1078M
Micropower, Dual, Single Supply
Precision Op Amp
ESCRIPTIO XI ARBSOLUTE TI
The RH1078M is a micropower dual op amp in the Supply Voltage ±22V standard 8-pin configuration. This device is optimized for Differential Input Voltage ±30V single supply operation at 5V. Specifications for ±15V are Input Voltage Equal to Positive Supply Voltage also provided. 0.5V Below Negative Supply Voltage
Output Short-Circuit Duration Indefinite
The wafer lots are processed to LTC’s in-house Class S
Operating Temperature Range –55°C to 125°C
flow to yield circuits usable in stringent military applica-
Storage Temperature Range –55°C to 150°C
tions.
Lead Temperature (Soldering, 10 sec) 300°C
PACKAGE/ORDER FOR ATIOBUR -I CIRCUIT
(Each Amplifier)
TOP VIEW
OUT BOUT A
–IN B–IN A
+IN B+IN A
H PACKAGE
WU –20V
8-LEAD TO-5 METAL CAN
TOTAL DOSE BIAS CIRCUIT
Note: For ordering information contact LTC.
