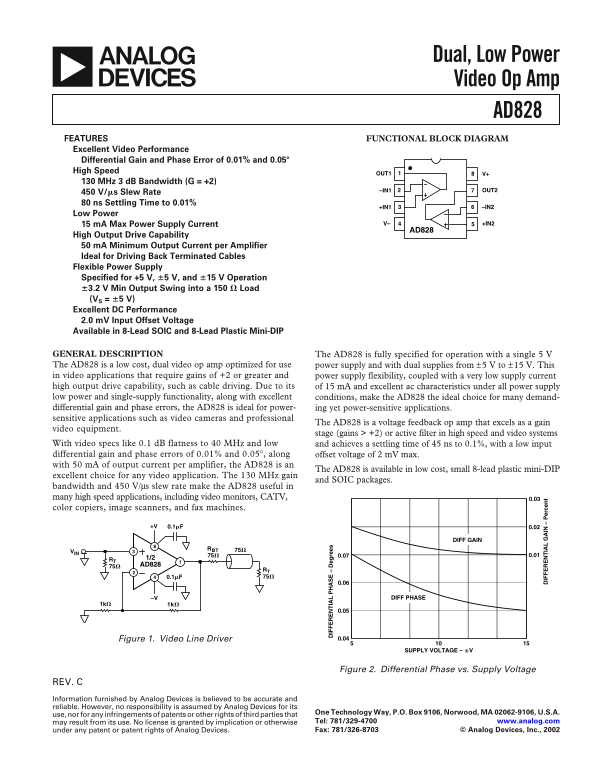

Dual, Low Power Video Op Amp AD828

FEATURES FUNCTIONAL BLOCK DIAGRAM Excellent Video Performance Differential Gain and Phase Error of 0.01% and 0.05 High Speed

OUT1 V+

130 MHz 3 d B Bandwidth (G = +2)

–IN1 OUT2

450 V/s Slew Rate 80 ns Settling Time to 0.01%

+IN1 –IN2

Low Power

15 m A Max Power Supply Current V– +IN2

AD828

High Output Drive Capability 50 m A Minimum Output Current per Amplifier Ideal for Driving Back Terminated Cables Flexible Power Supply Specified for +5 V, 5 V, and 15 V Operation 3.2 V Min Output Swing into a 150  Load (VS = 5 V) Excellent DC Performance 2.0 m V Input Offset Voltage

Available in 8-Lead SOIC and 8-Lead Plastic Mini-DIP IF IA eg re es

GENERAL DESCRIPTION The AD828 is fully specified for operation with a single 5 V The AD828 is a low cost, dual video op amp optimized for use power supply and with dual supplies from ±5 V to ±15 V. This in video applications that require gains of +2 or greater and power supply flexibility, coupled with a very low supply current high output drive capability, such as cable driving. Due to its of 15 m A and excellent ac characteristics under all power supply low power and single-supply functionality, along with excellent conditions, make the AD828 the ideal choice for many demand- differential gain and phase errors, the AD828 is ideal for power- ing yet power-sensitive applications. sensitive applications such as video cameras and professional

The AD828 is a voltage feedback op amp that excels as a gain

video equipment.

stage (gains > +2) or active filter in high speed and video systems

With video specs like 0.1 d B flatness to 40 MHz and low and achieves a settling time of 45 ns to 0.1%, with a low input differential gain and phase errors of 0.01% and 0.05°, along offset voltage of 2 m V max. with 50 m A of output current per amplifier, the AD828 is an

The AD828 is available in low cost, small 8-lead plastic mini-DIP

excellent choice for any video application. The 130 MHz gain

and SOIC packages.

bandwidth and 450 V/µs slew rate make the AD828 useful in many high speed applications, including video monitors, CATV, 0.03 color copiers, image scanners, and fax machines.

DIFF GAIN

IF IA IN er ce RBT

RT 1/2 AD828

–V DIFF PHASE

Figure 1. Video Line Driver 0.04

SUPPLY VOLTAGE – V

Figure 2. Differential Phase vs. Supply Voltage
