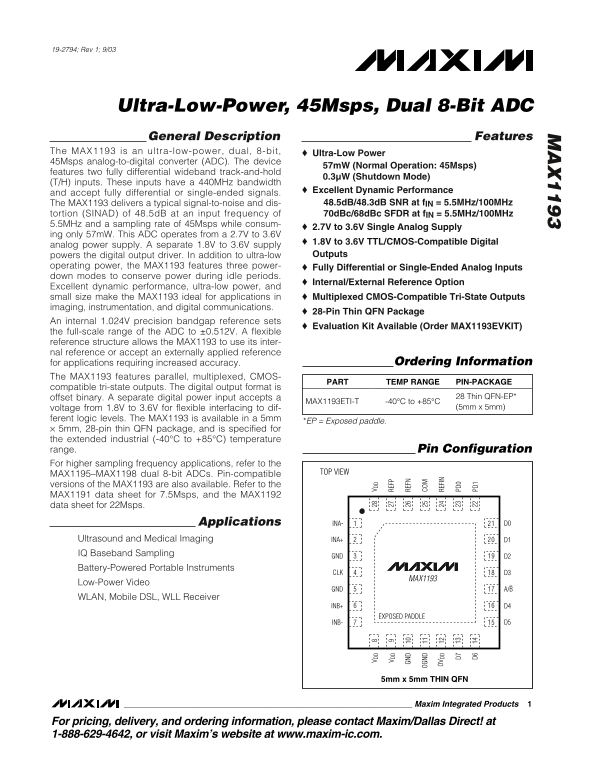

MAXIM MAX1193 Ultra-Low-Power, 45Msps, Dual 8-Bit ADC Data Sheet

19-2794; Rev 1; 9/03

Ultra-Low-Power, 45Msps, Dual 8-Bit ADC General Description Features

The MAX1193 is an ultra-low-power, dual, 8-bit, Ultra-Low Power 45Msps analog-to-digital converter (ADC). The device

57m W (Normal Operation: 45Msps)

features two fully differential wideband track-and-hold

0.3µW (Shutdown Mode)

(T/H) inputs. These inputs have a 440MHz bandwidth

Excellent Dynamic Performance

and accept fully differential or single-ended signals.

The MAX1193 delivers a typical signal-to-noise and dis- 48.5d B/48.3d B SNR at f IN = 5.5MHz/100MHz

tortion (SINAD) of 48.5d B at an input frequency of 70d Bc/68d Bc SFDR at f IN = 5.5MHz/100MHz 5.5MHz and a sampling rate of 45Msps while consum-

2.7V to 3.6V Single Analog Supply

ing only 57m W. This ADC operates from a 2.7V to 3.6V

1.8V to 3.6V TTL/CMOS-Compatible Digital

analog power supply. A separate 1.8V to 3.6V supply

powers the digital output driver. In addition to ultra-low Outputs

operating power, the MAX1193 features three power- Fully Differential or Single-Ended Analog Inputs down modes to conserve power during idle periods.

Internal/External Reference Option

Excellent dynamic performance, ultra-low power, and small size make the MAX1193 ideal for applications in Multiplexed CMOS-Compatible Tri-State Outputs imaging, instrumentation, and digital communications.

28-Pin Thin QFN Package

An internal 1.024V precision bandgap reference sets

Evaluation Kit Available (Order MAX1193EVKIT)

the full-scale range of the ADC to ±0.512V. A flexible reference structure allows the MAX1193 to use its inter- nal reference or accept an externally applied reference

for applications requiring increased accuracy. Ordering Information

The MAX1193 features parallel, multiplexed, CMOS-

PART TEMP RANGE PIN-PACKAGE

compatible tri-state outputs. The digital output format is

RE FP

offset binary. A separate digital power input accepts a 28 Thin QFN-EP*

MAX1193ETI-T -40°C to +85°C

voltage from 1.8V to 3.6V for flexible interfacing to dif- RE FN (5mm x 5mm)

ferent logic levels. The MAX1193 is available in a 5mm

*EP = Exposed paddle.

OG NDGN CO

5mm, 28-pin thin QFN package, and is specified for the extended industrial (-40°C to +85°C) temperature OV

DD RE FI

range. Pin Configuration

For higher sampling frequency applications, refer to the

MAX1195–MAX1198 dual 8-bit ADCs. Pin-compatible TOP VIEW

D6D7 PD

versions of the MAX1193 are also available. Refer to the MAX1191 data sheet for 7.5Msps, and the MAX1192 data sheet for 22Msps.

Applications INA- D0

Ultrasound and Medical Imaging INA+ D1 IQ Baseband Sampling

GND D2

Battery-Powered Portable Instruments

CLK D3

MAX1193

Low-Power Video

GND A/B

WLAN, Mobile DSL, WLL Receiver

INB+ D4

EXPOSED PADDLE

INB- D5

5mm x 5mm THIN QFN

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
