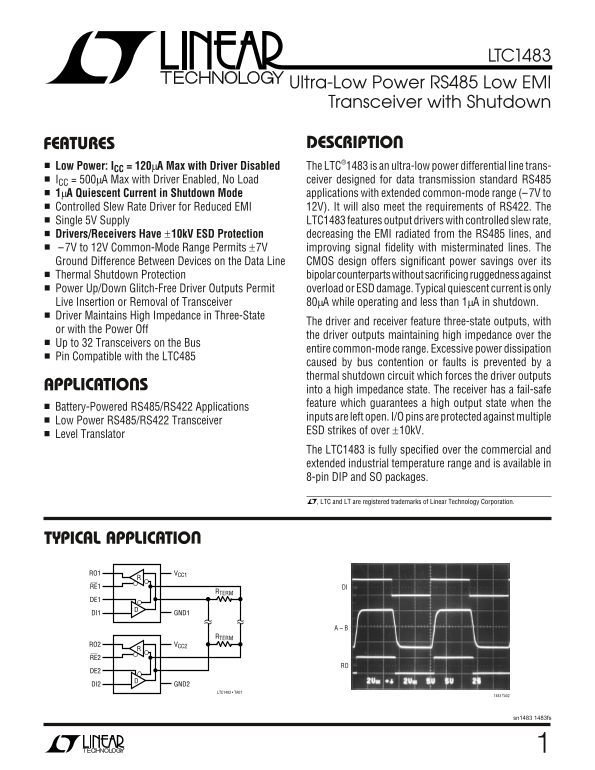

LTC1483

Ultra-Low Power RS485 Low EMI Transceiver with Shutdown

SFEATURE ESCRIPTIO

Low Power: ICC = 120µA Max with Driver Disabled The LTC®1483 is an ultra-low power differential line trans- ICC = 500µA Max with Driver Enabled, No Load ceiver designed for data transmission standard RS485

1µA Quiescent Current in Shutdown Mode applications with extended common-mode range (–7V to Controlled Slew Rate Driver for Reduced EMI 12V). It will also meet the requirements of RS422. The Single 5V Supply LTC1483 features output drivers with controlled slew rate, Drivers/Receivers Have ±10k V ESD Protection decreasing the EMI radiated from the RS485 lines, and –7V to 12V Common-Mode Range Permits ±7V improving signal fidelity with misterminated lines. The Ground Difference Between Devices on the Data Line CMOS design offers significant power savings over its Thermal Shutdown Protection bipolar counterparts without sacrificing ruggedness against Power Up/Down Glitch-Free Driver Outputs Permit overload or ESD damage. Typical quiescent current is only Live Insertion or Removal of Transceiver 80µA while operating and less than 1µA in shutdown.

Driver Maintains High Impedance in Three-State

The driver and receiver feature three-state outputs, with

or with the Power Off

the driver outputs maintaining high impedance over the

Up to 32 Transceivers on the Bus

entire common-mode range. Excessive power dissipation

Pin Compatible with the LTC485

caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs

PPLICATI SA

into a high impedance state. The receiver has a fail-safe feature which guarantees a high output state when the

Battery-Powered RS485/RS422 Applications

inputs are left open. I/O pins are protected against multiple

Low Power RS485/RS422 Transceiver

ESD strikes of over ±10k V.

Level Translator

The LTC1483 is fully specified over the commercial and extended industrial temperature range and is available in 8-pin DIP and SO packages.

, LTC and LT are registered trademarks of Linear Technology Corporation.

PPLICATITYPICAL RO1 VCC1 RE1 DI

RTERM

DI1 GND1

RTERM

RO2 VCC2 RE2

DI2 GND2

LTC1483 • TA01

1483 TA02

sn1483 1483fs

Page Summary Contents For LINEAR TECHNOLOGY - 1 LTC1483 Data Sheet User Guide

Page 1 LTC1483 Ultra-Low Power RS485 Low EMI Transceiver with Shutdown SFEATURE ESCRIPTIO Low Power: ICC = 120µA Max with Driver Disabled The LTC®1483 is an ultra-low power differential line trans- ICC = 500...
Page 2 LTC1483 XI ARBSOLUTE TI PACKAGE/ORDER FOR ATIO (Note 1) Supply Voltage (VCC) 12V ORDER PART TOP VIEW Control Input Voltage –0.5V to VCC + 0.5V NUMBER RO VCC Driver Input Voltage –0.5V to VCC + 0.5V LT...
Page 3 SU PP LY UR RE NT (µ A) LTC1483 VCC = 5V, (Notes 2, 3) unless otherwise noted.SWITCHI G CHARACTERISTICS LTC1483 SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS t PLH Driver Input to Output RDIFF = 54Ω, ...
Page 4 DI FF ER EN TI AL OL TA GE (V LTC1483 TYPICAL PERFORMANCE CHARACTERISTICS Driver Differential Output Voltage Driver Output Low Voltage Driver Output High Voltage vs Temperature vs Output Current vs Ou...
Page 5 LTC1483 TEST CIRCUITS TEST POINT 1k RECEIVER OUTPUT VOC CRL S2 LTC1483 • F01 LTC1483 • F02 Figure 1. Driver DC Test Load Figure 2. Receiver Timing Test Load DE S1 CL1 VCC DI 500Ω RDIFF RO OUTPUT UNDER...
Page 6 LTC1483 SWITCHI G TI E WAVEFOR S VOH RO 1.5V 1.5V OUTPUT t PHL tr ≤ 10ns, tf ≤ 10ns t PLH VOD2 A – B 0V 0V INPUT LTC1483 • F07 –VOD2 Figure 7. Receiver Propagation Delays RE 1.5V 1.5V tr ≤ 10ns, tf ≤ ...
Page 7 LTC1483 APPLICATIO S I FOR ATIO The LTC1483 output stage of Figure 9 eliminates these problems by adding two Schottky diodes, SD3 and SD4. The Schottky diodes are fabricated by a proprietary modi- fic...
Page 8 LTC1483 APPLICATIO S I FOR ATIO Shutdown Mode than 50ns the part will not enter shutdown mode. Toggling either RE or DE will wake the LTC1483 back up within Both the receiver output (RO) and the drive...
