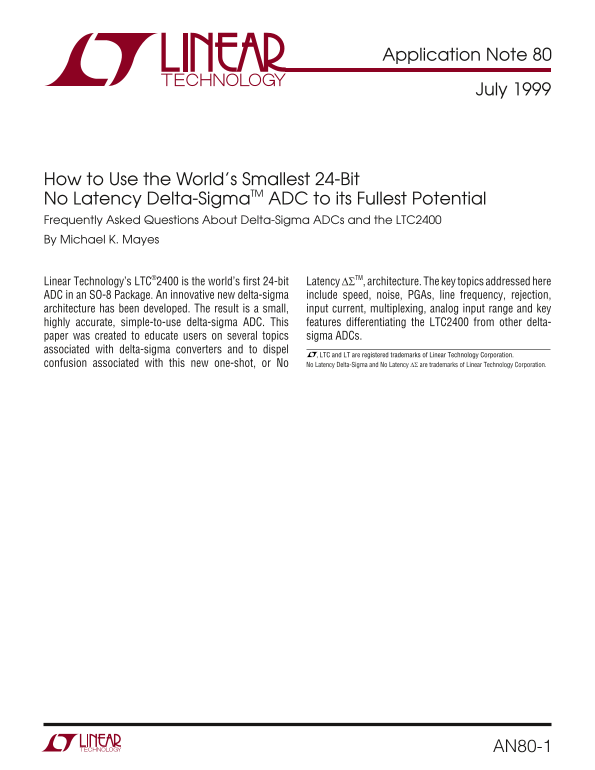

Application Note 80
July 1999
How to Use the World’s Smallest 24-Bit No Latency Delta-Sigma TM ADC to its Fullest Potential Frequently Asked Questions About Delta-Sigma ADCs and the LTC2400 By Michael K. Mayes
Linear Technology’s LTC®2400 is the world’s first 24-bit Latency ∆ΣTM, architecture. The key topics addressed here ADC in an SO-8 Package. An innovative new delta-sigma include speed, noise, PGAs, line frequency, rejection, architecture has been developed. The result is a small, input current, multiplexing, analog input range and key highly accurate, simple-to-use delta-sigma ADC. This features differentiating the LTC2400 from other delta- paper was created to educate users on several topics sigma ADCs. associated with delta-sigma converters and to dispel
, LTC and LT are registered trademarks of Linear Technology Corporation.
confusion associated with this new one-shot, or No No Latency Delta-Sigma and No Latency ∆Σ are trademarks of Linear Technology Corporation.
AN80-1
