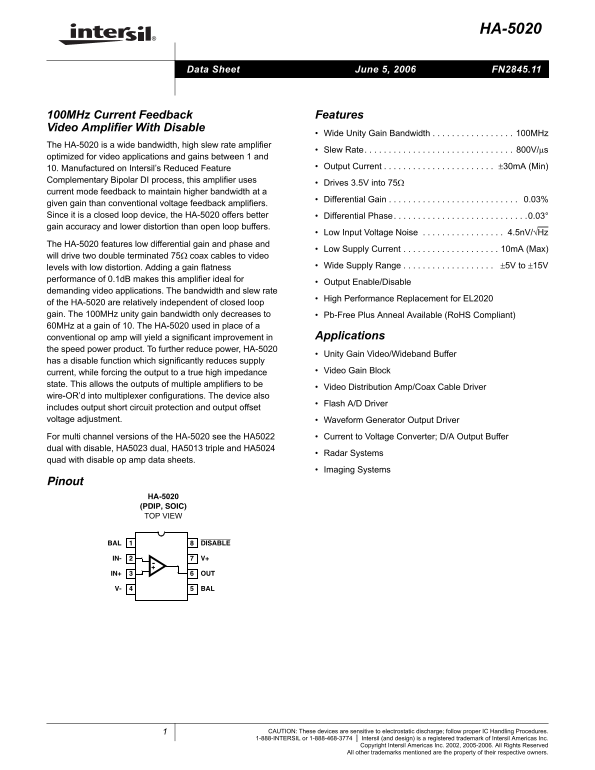

HA-5020

Data Sheet June 5, 2006 FN2845.11

100MHz Current Feedback Features Video Amplifier With Disable

Wide Unity Gain Bandwidth . . . . . . . . . . . . . . . . . 100MHz

The HA-5020 is a wide bandwidth, high slew rate amplifier

Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V/µs

optimized for video applications and gains between 1 and

10. Manufactured on Intersil’s Reduced Feature Output Current . . . . . . . . . . . . . . . . . . . . . . . ±30m A (Min)

Complementary Bipolar DI process, this amplifier uses

Drives 3.5V into 75Ω

current mode feedback to maintain higher bandwidth at a

Differential Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.03%

given gain than conventional voltage feedback amplifiers. Since it is a closed loop device, the HA-5020 offers better Differential Phase. . . . . . . . . . . . . . . . . . . . . . . . . . . .0.03° gain accuracy and lower distortion than open loop buffers.

Low Input Voltage Noise . . . . . . . . . . . . . . . . . 4.5n V/√Hz

The HA-5020 features low differential gain and phase and

Low Supply Current . . . . . . . . . . . . . . . . . . . . 10m A (Max)

will drive two double terminated 75Ω coax cables to video

levels with low distortion. Adding a gain flatness Wide Supply Range . . . . . . . . . . . . . . . . . . . ±5V to ±15V

performance of 0.1d B makes this amplifier ideal for

Output Enable/Disable

demanding video applications. The bandwidth and slew rate

High Performance Replacement for EL2020

of the HA-5020 are relatively independent of closed loop gain. The 100MHz unity gain bandwidth only decreases to Pb-Free Plus Anneal Available (Ro HS Compliant) 60MHz at a gain of 10. The HA-5020 used in place of a

conventional op amp will yield a significant improvement in Applications

the speed power product. To further reduce power, HA-5020

Unity Gain Video/Wideband Buffer

has a disable function which significantly reduces supply

current, while forcing the output to a true high impedance Video Gain Block

state. This allows the outputs of multiple amplifiers to be

Video Distribution Amp/Coax Cable Driver

wire-OR’d into multiplexer configurations. The device also

Flash A/D Driver

includes output short circuit protection and output offset voltage adjustment. Waveform Generator Output Driver

For multi channel versions of the HA-5020 see the HA5022 Current to Voltage Converter; D/A Output Buffer dual with disable, HA5023 dual, HA5013 triple and HA5024

Radar Systems

quad with disable op amp data sheets.

Imaging Systems

Pinout

HA-5020 (PDIP, SOIC) TOP VIEW

BAL DISABLE

IN- V+

IN+ OUT

V- BAL

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 1-888-468-3774 Intersil (and design) is a registered trademark of Intersil Americas Inc. Copyright Intersil Americas Inc. 2002, 2005-2006. All Rights Reserved All other trademarks mentioned are the property of their respective owners.

Page Summary Contents For INTERSIL HA-5020 100MHz Current Feedback Video Amplifier With Disable - Data Manual

Page 1 HA-5020 Data Sheet June 5, 2006 FN2845.11 100MHz Current Feedback Features Video Amplifier With Disable Wide Unity Gain Bandwidth . . . . . . . . . . . . . . . . . 100MHz The HA-5020 is a wide bandwid...
Page 2 HA-5020 Ordering Information PART NUMBER PART MARKING TEMP. RANGE (°C) PACKAGE PKG. DWG. # HA3-5020-5 HA3-5020-5 0 to 75 8 Ld PDIP E8.3 HA3-5020-5Z (Note) HA3-5020-5Z 0 to 75 8 Ld PDIP (Pb-free) E8.3 ...
Page 3 HA-5020 Absolute Maximum Ratings (Note 1) Thermal Information Voltage Between V+ and V- Terminals . . . . . . . . . . . . . . . . . . . 36V Thermal Resistance (Typical, Note 2) θJA (°C/W) θJC (°C/W) D...
Page 4 HA-5020 Electrical Specifications VSUPPLY = ±15V, RF = 1kΩ, AV = +1, RL = 400Ω, CL ≤ 10p F, Unless Otherwise Specified (Continued) TEMP. PARAMETER TEST CONDITIONS (°C) MIN TYP MAX UNITS OUTPUT CHARACT...
Page 5 HA-5020 Electrical Specifications VSUPPLY = ±15V, RF = 1kΩ, AV = +1, RL = 400Ω, CL ≤ 10p F, Unless Otherwise Specified (Continued) TEMP. PARAMETER TEST CONDITIONS (°C) MIN TYP MAX UNITS Output Current...
Page 6 HA-5020 Electrical Specifications V+ = +5V, V- = -5V, RF = 1kΩ, AV = +1, RL = 400Ω, CL ≤10p F, Unless Otherwise Specified. Parameters are not tested. The limits are guaranteed based on lab characteriz...
Page 7 HA-5020 Electrical Specifications V+ = +5V, V- = -5V, RF = 1kΩ, AV = +1, RL = 400Ω, CL ≤10p F, Unless Otherwise Specified. Parameters are not tested. The limits are guaranteed based on lab characteriz...
Page 8 HA-5020 Test Circuits and Waveforms HP4195 NETWORK ANALYZER FIGURE 1. TEST CIRCUIT FOR TRANSIMPEDANCE MEASUREMENTS 50Ω RL VOUT 400Ω RF, 681Ω 50Ω RL RF, 1kΩ FIGURE 2. SMALL SIGNAL PULSE RESPONSE CIRCUI...
Page 9 HA-5020 Schematic Diagram FN2845.11 June 5, 2006
Page 10 HA-5020 Application Information Driving Capacitive Loads Capacitive loads will degrade the amplifier’s phase margin Optimum Feedback Resistor resulting in frequency response peaking and possible The p...
Page 11 HA-5020 Referring to Figure 7, it can be seen that R6 will act as a pull-up such as an A/D converter. The first problem is the low source resistor to +VCC if the DISABLE pin is left open. In those cas...
Page 12 HA-5020 IA EN (µ IN IS LT (n /√ z) INPUT B R3A INPUT A CHANNEL R4B SWITCH OUTPUT U1B NOTES: INHIBIT 25. U2: HA-5020. 26. U1: CD4011. FIGURE 8. LOW IMPEDANCE MULTIPLEXER IN IS (p /√ z) Typical Performa...
Page 13 HA-5020 SU PP LY EN (m PE IN (M Typical Performance Curves VSUPPLY = ±15V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, unless otherwise specified (Continued) VSUPPLY = ±15V VSUPPLY = ±10V -55°C VSUPPLY =...
Page 14 HA-5020 -3 d B ID TH (M z) LI ZE IN (d EN LE IM (µ s) Typical Performance Curves VSUPPLY = ±15V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, unless otherwise specified (Continued) 2.0 1.8 VOUT = 0.2VP-P ...
Page 15 HA-5020 TP IN (± JE TI TI (d -3 d B ID TH (M z) Typical Performance Curves VSUPPLY = ±15V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, unless otherwise specified (Continued) CL = 10p F, AV = +10 CL = 10p...
Page 16 HA-5020 SH IR IT EN (m IS TO TI (d c) PR PA AT IO EL AY (n s) Typical Performance Curves VSUPPLY = ±15V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, unless otherwise specified (Continued) RLOAD = 100Ω VO...
Page 17 HA-5020 LI ZE IN (d IF FE EN TI PH SE (° -IN VE TI SE (° Typical Performance Curves VSUPPLY = ±15V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, unless otherwise specified (Continued) 0.07 FREQUENCY = 3.5...
Page 18 HA-5020 PR PA AT IO EL AY (n s) -3 d B ID TH (M z) -3 d B ID TH (M z) Typical Performance Curves VSUPPLY = ±5V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, Unless Otherwise Specified (Continued) VOUT = 0...
Page 19 HA-5020 TP SW IN (V VO LT IS (n V/ √H z) LI ZE IN (d Typical Performance Curves VSUPPLY = ±5V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, Unless Otherwise Specified (Continued) 0.8 0.8 VOUT = 0.2VP-P 0....
Page 20 HA-5020 FE ED TH (d Typical Performance Curves VSUPPLY = ±5V, AV = +1, RF = 1kΩ, RL = 400Ω, TA = 25°C, Unless Otherwise Specified (Continued) DISABLE = 0V VIN = 5VP-P RL = 100Ω RF = 750Ω -60 TR SI PE ...
Page 21 HA-5020 Die Characteristics DIE DIMENSIONS: PASSIVATION: 1640µm x 1520µm x 483µm Type: Nitride over Silox Silox Thickness: 12kÅ ±2kÅ METALLIZATION: Nitride Thickness: 3.5kÅ ±1kÅ Type: Aluminum, 1% Cop...
Page 22 HA-5020 Dual-In-Line Plastic Packages (PDIP) E8.3 (JEDEC MS-001-BA ISSUE D) 8 LEAD DUAL-IN-LINE PLASTIC PACKAGE INDEX INCHES MILLIMETERS SYMBOL MAX MIN MAX NOTESMIN PLANE SEATING PLANE CL 0.010 (0.25)...
Page 23 HA-5020 Small Outline Plastic Packages (SOIC) M8.15 (JEDEC MS-012-AA ISSUE C) 8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE INDEX 0.25(0.010) BM AREA INCHES MILLIMETERS SYMBOL MAX MIN MAX NOTESMIN ...
