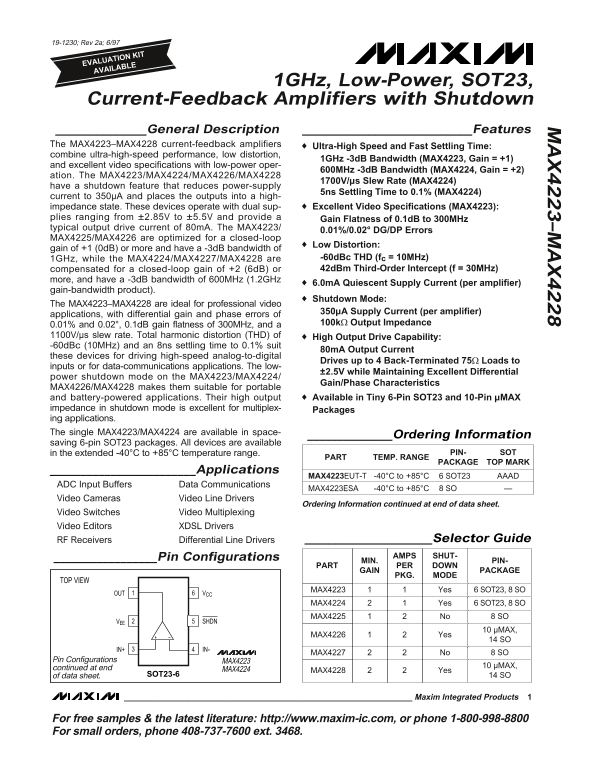

19-1230; Rev 2a; 6/97 –M EVALUATION KIT
AVAILABLE
1GHz, Low-Power, SOT23,
Current-Feedback Amplifiers with Shutdown _______________General Description ____________________________Features The MAX4223–MAX4228 current-feedback amplifiers Ultra-High Speed and Fast Settling Time: combine ultra-high-speed performance, low distortion,
1GHz -3d B Bandwidth (MAX4223, Gain = +1)
and excellent video specifications with low-power oper-
600MHz -3d B Bandwidth (MAX4224, Gain = +2)
ation. The MAX4223/MAX4224/MAX4226/MAX4228
1700V/µs Slew Rate (MAX4224)
have a shutdown feature that reduces power-supply
5ns Settling Time to 0.1% (MAX4224)
current to 350µA and places the outputs into a high-
impedance state. These devices operate with dual sup- Excellent Video Specifications (MAX4223):
plies ranging from ±2.85V to ±5.5V and provide a Gain Flatness of 0.1d B to 300MHz typical output drive current of 80m A. The MAX4223/
0.01%/0.02° DG/DP Errors
MAX4225/MAX4226 are optimized for a closed-loop
Low Distortion:
gain of +1 (0d B) or more and have a -3d B bandwidth of
1GHz, while the MAX4224/MAX4227/MAX4228 are -60d Bc THD (fc = 10MHz)
compensated for a closed-loop gain of +2 (6d B) or 42d Bm Third-Order Intercept (f = 30MHz)
more, and have a -3d B bandwidth of 600MHz (1.2GHz
6.0m A Quiescent Supply Current (per amplifier)
gain-bandwidth product).
Shutdown Mode:
The MAX4223–MAX4228 are ideal for professional video
350µA Supply Current (per amplifier)
applications, with differential gain and phase errors of
0.01% and 0.02°, 0.1d B gain flatness of 300MHz, and a 100kΩ Output Impedance
1100V/µs slew rate. Total harmonic distortion (THD) of High Output Drive Capability: -60d Bc (10MHz) and an 8ns settling time to 0.1% suit
80m A Output Current
these devices for driving high-speed analog-to-digital
Drives up to 4 Back-Terminated 75Ω Loads to
inputs or for data-communications applications. The low-
±2.5V while Maintaining Excellent Differential
power shutdown mode on the MAX4223/MAX4224/
Gain/Phase Characteristics
MAX4226/MAX4228 makes them suitable for portable
and battery-powered applications. Their high output Available in Tiny 6-Pin SOT23 and 10-Pin µMAX
impedance in shutdown mode is excellent for multiplex- Packages ing applications. The single MAX4223/MAX4224 are available in space-
______________Ordering Information
saving 6-pin SOT23 packages. All devices are available
in the extended -40°C to +85°C temperature range. PIN- SOT
PART TEMP. RANGE
PACKAGE TOP MARK
________________________Applications
MAX4223EUT-T -40°C to +85°C 6 SOT23 AAAD
ADC Input Buffers Data Communications
MAX4223ESA -40°C to +85°C 8 SO
Video Cameras Video Line Drivers
Ordering Information continued at end of data sheet.
Video Switches Video Multiplexing Video Editors XDSL Drivers
RF Receivers Differential Line Drivers _____________________Selector Guide
_________________Pin Configurations AMPS SHUT- MIN. PIN-
PART PER DOWN
GAIN PACKAGE
PKG. MODE
TOP VIEW
1MAX4223 Yes 6 SOT23, 8 SO
OUT VCC
MAX4224 Yes 6 SOT23, 8 SO
1MAX4225 No 8 SO
VEE SHDN
10 µMAX,
MAX4226 Yes
14 SO
IN-IN+
2MAX4227 No 8 SO
Pin Configurations MAX4223
10 µMAX,
continued at end MAX4224
MAX4228 Yes
of data sheet. SOT23-6 14 SO
Maxim Integrated Products
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800 For small orders, phone 408-737-7600 ext. 3468.
