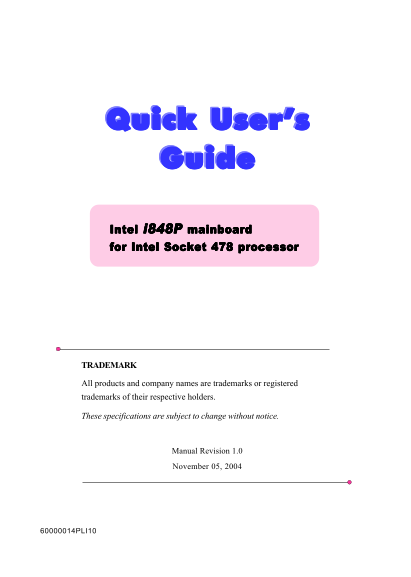

Intel i848P Mainboard User's Guide - For Intel Socket 478 Processor Owner's Manual and Specifications - Page 1

›

Page 1 Text Content

Quick User’s Guide

Intel i848P mainboard for Intel Socket 478 processor

TRADEMARK

All products and company names are trademarks or registered trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0 November 05, 2004

60000014PLI10

Page Summary Contents For Intel i848P Mainboard User's Guide - For Intel Socket 478 Processor Owner's Manual and Specifications

Page 1 Quick User’s Guide Intel i848P mainboard for Intel Socket 478 processor TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specificatio...

Page 2 DISCLAIMER OF WARRANTIES: THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, EXPRES...

Page 3 1. Specification Processor Support Socket 478 Intel Pentium 4 processors up to 3.4GHz with 533/800MHz front Side Bus Socket 478 Intel Celeron and 3xx series processors up to 3.2GHz with 400/ 533MHz fr...

Page 4 Expansion Slots One AGP v3.0 compliant slot supporting 1.5v 8X AGP card Five PCI v2.2 compliant slots with Bus Master support One CNR slot Other Features Magic Health – a BIOS H/W monitoring utility f...

Page 5 2. Setting up the mainbaord Before assembling the mainboard into the PC case we recommend you to perform. 1. CPU Installation 2. DDR Memory Insertion After the mainboard is fitted into the case, you m...

Page 6 Step 3 Step 4 Step 5 Apply thermal compound Install the cooling fan Plug the cooling fan power to the top of the CPU assembly. Press the two into the mainboard’s CPU fan surface and install the clips ...

Page 7 3.3 VGA and PCI card installation To install a VGA card into the AGP slot or a PCI expansion card: 1. Remove the bracket (on the PC case) for the slot you intend to use. 2. Firmly press down the card ...

Page 8 3.4 Rear IO Port RJ-45 Parallel Port LAN Line-in/Rear out (Light blue) Mouse Line-out/Front out (Lime) PS/2 Mic-in/Center&Subwoofer (Pink) Keyboard COM1 USB2.0 ports 3.5 Internal Connectors Englis...

Page 9 Connectors Figure Discriptions CPU / Power / Chasis Fan Power Connectors JCPU_FAN JCPU_FAN: The CPU must be kept cool by JPWR_FAN Ground Sense using a heatsink with fan assembly. JSYS_FAN +12V JPWR_FA...

Page 10 Connectors Figure Discriptions SPDIF_IN VCC SPDIF: Sony/Philips Digital Inter Face connector SPDIF NC GND SPDIF_OUT CUSB3/CUSB4: Four USB2.0 header This mainboard includes 4 additional onboard CUSB3 U...

Page 11 Connectors Figure Discriptions JCMOS: Clear CMOS data Jumper JCMOS11 This resets the BIOS CMOS data back to the factory default values. Recommend to leave at Settings: Normal (default) postion. 1-2: N...

Page 12 5. Driver Installation Once the operating system has been installed, you need to install the drivers for the mainboard. Method 1 Auto Installation Method 2 Selective Installation Insert the bundled CD...

Page 13 6. Others Hyper-Threading To enable the Hyper-Threading Technology function on your computer system requires ALL of the following platform components: CPU: An Intel Pentium 4 Processor with HT Technol...

Page 14 7. Update BIOS Download the xxxxx.EXE file corresponding to your model from our website to an empty directory on your hard disk or floppy. Run the downloaded xxxxx.EXE file and it will self extract. C...
