This comprehensive manual guides users through installation and maintenance of your LGA 775 motherboard featuring the Intel G41/ICH7 Chipset. It is perfect for PC builders and advanced users looking to maximize their desktop system performance with support for Core 2 processors. The guide covers everything required, including hardware setup (CPU, memory, expansion cards), detailed connector configuration, BIOS updates, critical environmental safety tips, and complete troubleshooting steps for reliable system operation.

📄 Preview ‹ PAGE OF 19 ›

‹

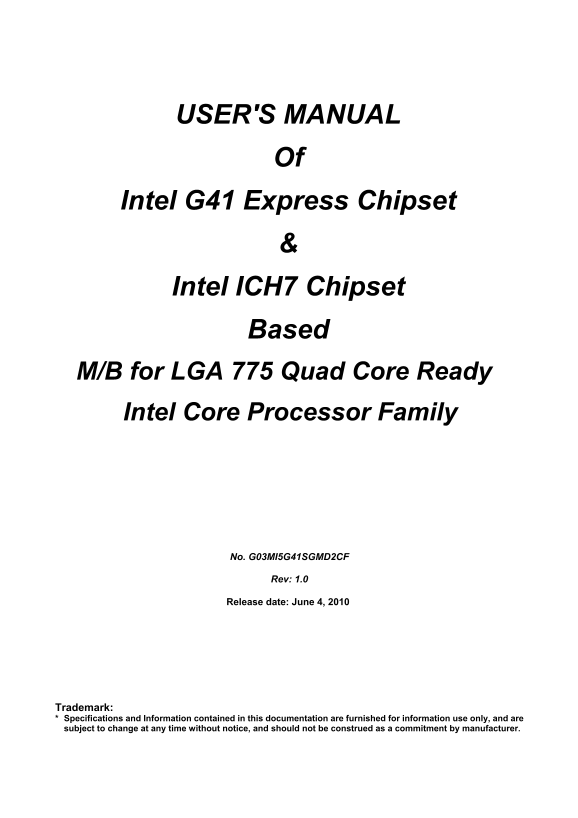

Intel G41 Express Chipset & Intel ICH7 Chipset Based Motherboard for LGA 775, Quad Core Ready Intel Core Processor Family USER'S MANUAL (1)(1) Owner's Manual & User Guide - Page 1

›

Page 1 Text Content

USER'S MANUAL Of Intel G41 Express Chipset

Intel ICH7 Chipset Based M/B for LGA 775 Quad Core Ready Intel Core Processor Family

No. G03MI5G41SGMD2CF

Rev: 1.0

Release date: June 4, 2010

Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Page Summary Contents For Intel G41 Express Chipset & Intel ICH7 Chipset Based Motherboard for LGA 775, Quad Core Ready Intel Core Processor Family USER'S MANUAL (1)(1) Owner's Manual & User Guide

Page 1 USER'S MANUAL Of Intel G41 Express Chipset Intel ICH7 Chipset Based M/B for LGA 775 Quad Core Ready Intel Core Processor Family No. G03MI5G41SGMD2CF Rev: 1.0 Release date: June 4, 2010 Trademark: * Sp...

Page 2 Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 40 centigrade is the suitable temperature. (The ...

Page 3 TABLE OF CONTENT CHAPTER 1 INTRODUCTION OF INTEL G41 MOTHERBOARD SERIES 1-1 FEATURES OF MOTHERBOARD .............................................................................1 1-1.1 SPECIAL FEATURE...

Page 4 Chapter 1 Introduction of Intel G41 Motherboard Series 1-1 Features of motherboard The Intel G41 chipset motherboard series are based on the latest Intel G41 Express Chipset and Intel ICH7 Chipset tec...

Page 5 to read the detailed descriptions of these value added product features, please get them in the coming section. 1-1.1 Special Features of Motherboard CPU Thermal Throttling Technology---(The CPU Overh...

Page 6 1-2 Specification Spec Description Design Micro ATX form factor 4 layers PCB size: 24.5*18cm Chipset Intel G41 Memory Controller Hub (MCH) Chipset Intel 82801GB I/O Controller Hub (ICH7) Chipset Suppo...

Page 7 1-3 Item Checklist Intel G41 Platform Processor Chipset based motherboard DVD for motherboard utilities Hard disk cable User’s Manual Back panel 1-4 Layout Diagram Diagram is for MI5-G41SGMD2-LF KB／MS...

Page 8 Diagram is for MI5-G41SGMD3-LF KB／MS Power ON Jumper (JP1) CPU Socket m PGA775 PS2 KB/Mouse Port ATX 12V Power Connector COM DDRIII DIMMx2 ATX Power VGA Connector CPU FAN USB Port SYSFAN1 USB Power ON...

Page 9 Chapter 2 Hardware Installation 2-1 Install LGA 775 Supported Intel Processor This motherboard provides a 775-pin surface mount, LGA775 Land Grid Array socket, referred to as the LGA775 socket support...

Page 10 2-2 Install Memory Model MI5-G41SGMD2-LF provides two 240-pin DDR2 DUAL INLINE MEMORY MODULES (DIMM) socket for DDR2 memory expansion to maximum memory volume of 8GB DDR2 SDRAM. Valid Memory Configura...

Page 11 2-3 Expansion Cards The G41 motherboard series offer one PCI-Express x16 graphics slot of 8Gbyte/sec data transfer rate at each relative direction which gets 7 times of bandwidth more than AGP 8X and ...

Page 12 Chapter 3 Connectors, Headers & Jumpers Setting 3-1 Connectors (1) Power Connector (24-pin block): ATXPWR ATX Power Supply connector: This is a new defined 24-pins ROW1 ROW2 connector that usually...

Page 13 +12V +12V GND GND Pin1 ATX12V (3) PS/2 Mouse & PS/2 Keyboard Connector: KB1 The connectors are for PS/2 keyboard and PS/2 Mouse. (4) USB Port connector: USB1, UL1 The connectors are 4-pin connecto...

Page 14 (8) Primary IDE Connector (40-pin block): IDE This connector connects to the next set of Master and Slave hard disks. Follow the same procedure described for the primary IDE connector. You may also co...

Page 15 3-2 Headers (1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO This header is connected to Front Panel Line-out, MIC connector with cable. AUDIO Pin 1 VC VC -D AT -D AT Line-Out, MIC Headers +D AT...

Page 16 (7) Power switch: PWR BTN This 2-pin connector connects to the case-mounted power switch to power ON/OFF the system. PWRLED Pin 1 JW FP SPEAK Pin 1 Pin 1 System Case Connections (8) FAN Power Headers:...

Page 17 (10) Parallel Port header (25-pin): PARALLEL (Optional) The On-board Parallel Port can be disabled through the BIOS SETUP. . Pin 1 PARALLEL Connector (11) SPDIF Out header: SPDIF Out The SPDIF output ...

Page 18 (2) USB Power-on Enabled/Disabled: JP2/JP3 JP2/JP3 JP2/JP3 1-2 Closed: USB Power On Disable (Default) 2-3 Closed: USB Power On Enabled USB Power On Setting (3) CMOS RAM Clear (3-pin): JBAT A battery m...

Page 19 Chapter 4 Useful Help 4-1 How to Update BIOS Step 1. Prepare a bootable disc. (You may make one by click START click RUN type SYS A: click OK) Step 2. Download upgrade tools and the latest BIOS files ...

Manual Details

Brand	Intel
Pages	19
File Size	844.36 KB
Published	May 31, 2026

90 views

Enter the captcha to get the download link:

Frequently Asked Questions

What operating temperature range should I maintain for this motherboard?

The suitable temperature range is from 0 to 40 degrees centigrade.

What precautions must I take regarding environmental changes?

Before moving from a cold environment to a warmer one, the computer must go through an adaptive phase to avoid condensation phenomenon and potential short circuits.

How do I update the BIOS on this motherboard?

Use a bootable disc created with upgrade tools and latest files downloaded from the official website. Boot up and run the appropriate .BAT file.

My system won't power on. What should I check?

Ensure that the power cable is securely connected, and verify that the fan inside the power supply is plugged in.
