Intel G31 Express Chipset & Intel ICH7 Chipset Based User's Guide & Manual

Summary

Upgrade your PC with this robust motherboard featuring the Intel G31 Chipset and LGA 775 socket, designed for high-performance desktop builds using Intel Core Processors. This comprehensive manual is essential reading for builders and advanced users, guiding you through hardware installation of CPUs, memory, and expansion cards. You will learn how to properly configure headers/jumpers, update the BIOS, and troubleshoot common system issues like boot failures or power problems, ensuring reliable operation for your powerful platform solution.

📄 Preview ‹ PAGE OF 17 ›

‹

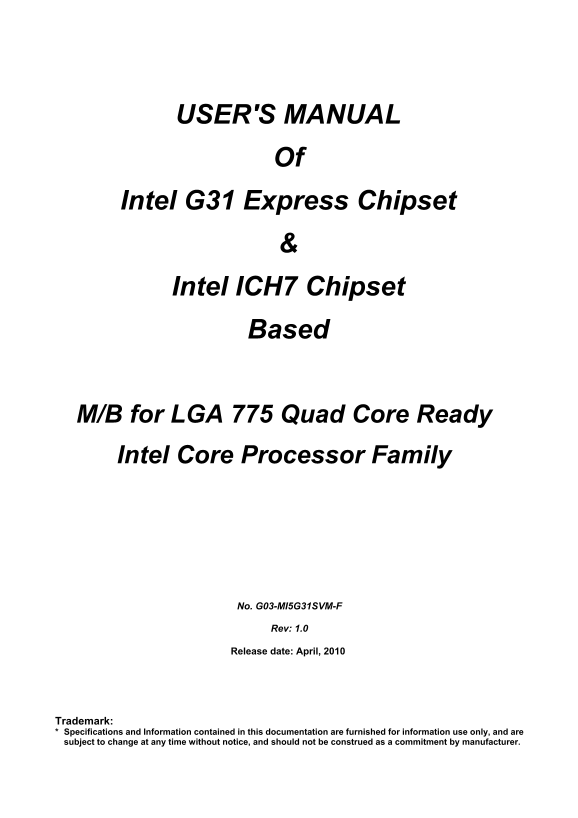

Intel G31 Express Chipset & Intel ICH7 Chipset Based User's Guide & Manual - Page 1

›

Page 1 Text Content

USER'S MANUAL Of Intel G31 Express Chipset

Intel ICH7 Chipset Based

M/B for LGA 775 Quad Core Ready Intel Core Processor Family

No. G03-MI5G31SVM-F

Rev: 1.0

Release date: April, 2010

Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Page Summary Contents For Intel G31 Express Chipset & Intel ICH7 Chipset Based User's Guide & Manual

Page 1 USER'S MANUAL Of Intel G31 Express Chipset Intel ICH7 Chipset Based M/B for LGA 775 Quad Core Ready Intel Core Processor Family No. G03-MI5G31SVM-F Rev: 1.0 Release date: April, 2010 Trademark: * Spec...

Page 2 Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 40 centigrade is the suitable temperature. (The ...

Page 3 TABLE OF CONTENT CHAPTER 1 INTRODUCTION OF INTEL G31 MOTHERBOARD SERIES 1-1 FEATURES OF MOTHERBOARD .............................................................................1 1-1.1 SPECIAL FEATURE...

Page 4 Chapter 1 Introduction of Intel G31 Motherboard Series 1-1 Features of motherboard The Intel G31 chipset motherboard series are based on the latest Intel G31 Express Chipset and Intel ICH7 Chipset tec...

Page 5 and meets the demands of the next generation computing. But if you insist to gain more system performance with variety possibilities of the components you choose, please be careful and make sure to re...

Page 6 1-2 Specification Spec Description Design Micro ATX Form Factor; PCB size: 22.5*17.1cm Chipset Intel G31 Chipset Intel ICH7 Chipset Support Intel LGA775 Pentium D, Pentium 4, Celeron D, Conroe CPU and...

Page 7 1-4 Layout Diagram Rear I / O for Intel G31 Line-IN RJ-45 LAN PS/2 Mouse VGA Connector Line-OUT Serial port PS/2 Keyboard MIC-IN USB Connectors PS2 KB/ Mouse Port CPU Socket LGA775 KB/MS Power ON Seri...

Page 8 Chapter 2 Hardware Installation 2-1 Install LGA 775 Supported Intel Processor This motherboard provides a 775-pin surface mount, LGA775 Land Grid Array socket, referred to as the LGA775 socket support...

Page 9 Recommend DIMM Module Combination 1. One DIMM Module ----Plug in DIMM1 2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function For Dual channel Limited! 1. Dual channel function only s...

Page 10 PCI-E x16 by 16-lane 32-bit PCI Slot Chapter 3 Connectors and Headers 3-1 Connectors (1) Power Connector (24-pin block): ATXPWR ATX Power Supply connector: This is a new defined 24-pins ROW1 ROW2 conn...

Page 11 Figure 1: 20-pin power plug Figure2: 24-pin power plug (2) ATX 12V Power Connector (4-pin block): ATX12V This is a new defined 4-pins connector that usually comes with ATX Power Supply. The ATX Power ...

Page 12 RJ-45 Connector Line-IN VGA Connector Line-OUT Serial port PS/2 Mouse PS/2 Keyboard MIC-IN USB Connectors (7) Primary IDE Connector (40-pin block): IDE This connector connects to the next set of Maste...

Page 13 (9) Serial COM Port: COM1 COM1 is the 9-pin connector. The On-board serial port can be disabled through BIOS setup. (10) VGA Connector (15-pin D-Sub) Connector: VGA VGA is the 15-pin D-Subminiature fe...

Page 14 method of rebooting in order to prolong the lift of the system’s power supply. See the figure below. (7) Power switch: PWR BTN This 2-pin connector connects to the case-mounted power switch to power O...

Page 15 HDMI_SPDIF_OUT HDMI_SPDIF Header 3-3 Jumper Setting (1) Keyboard/Mouse Power-on Enabled/Disabled: JP1 JP1 JP1 1-2 Closed KB/MSPower ON Disable (Default) 2-3 Closed KB/MS Power ON Enabled Keyboard/Mous...

Page 16 Note: When should clear CMOS 1. Troubleshooting 2. Forget password 3. After over clocking system boot fail JBAT 1-2 Open： Normal 1-2 Short： CMOS Clear CMOS Clear Setting

Page 17 Chapter 4 Useful Help 4-1 How to Update BIOS Step1. Prepare a boot floppy disc. (You may make one by click START click RUN type SYS A: click OK) Step2. Download upgrade tools and the latest BIOS files...
