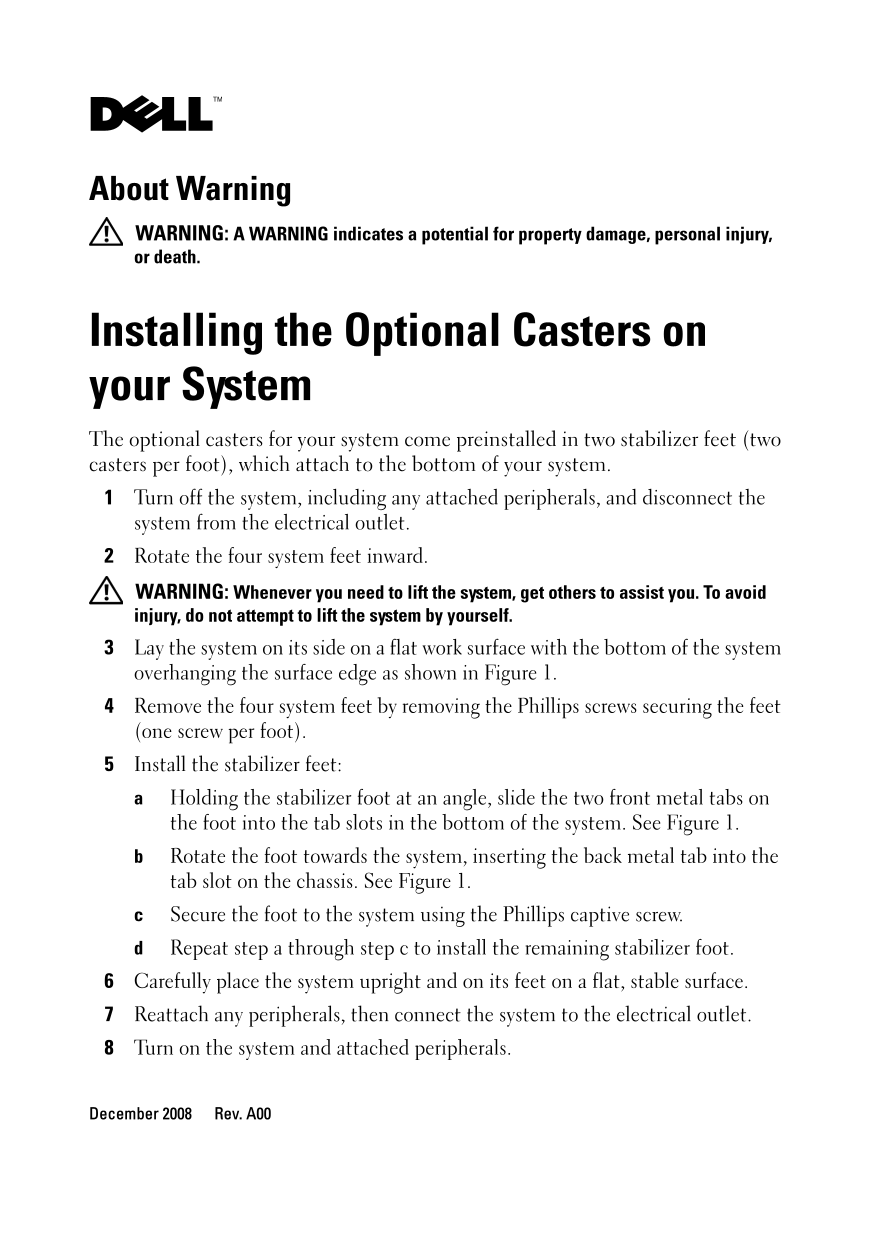

Page 1 Text Content
casters.fm Page 9 Wednesday, December 17, 2008 2:45 PM
FILE LOCATION: C:\Windchill Projects\Sneetch\TS\Casters\A00\EN\Source\casters.fm
Template Last Updated -8/26/2008
About Warning WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Installing the Optional Casters on your System The optional casters for your system come preinstalled in two stabilizer feet (two casters per foot), which attach to the bottom of your system. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet. Rotate the four system feet inward. WARNING: Whenever you need to lift the system, get others to assist you. To avoid injury, do not attempt to lift the system by yourself. Lay the system on its side on a flat work surface with the bottom of the system overhanging the surface edge as shown in Figure 1. Remove the four system feet by removing the Phillips screws securing the feet (one screw per foot). Install the stabilizer feet: Holding the stabilizer foot at an angle, slide the two front metal tabs on the foot into the tab slots in the bottom of the system. See Figure 1. Rotate the foot towards the system, inserting the back metal tab into the tab slot on the chassis. See Figure 1. Secure the foot to the system using the Phillips captive screw. Repeat step a through step c to install the remaining stabilizer foot. Carefully place the system upright and on its feet on a flat, stable surface. Reattach any peripherals, then connect the system to the electrical outlet. Turn on the system and attached peripherals.
December 2008 Rev. A00
RY LY
Page Summary Contents For Installing Optional Casters on Dell Systems - User Guide and Installation Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 171.61 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety warning should I be aware of when working with the system?
A WARNING indicates a potential for property damage, personal injury, or death. Whenever you need to lift the system, always get others to assist.
What is the first step before installing the optional casters?
Turn off the entire system, including peripherals, and disconnect it completely from the electrical outlet.
How are the stabilizer feet attached during installation?
Slide the two front metal tabs into the bottom tab slots, rotate the foot toward the system, and secure it using a Phillips captive screw.
What must I do after installing the casters?
Carefully place the system upright on a flat, stable surface. Then, reattach peripherals, connect power, and turn the system on.
