Installing Wheel on Dell System

Summary

This hardware installation guide provides instructions for attaching caster bracket assemblies to Dell server systems. It covers safety precautions, system preparation, foot removal, caster installation, and proper lifting techniques. Designed for trained service technicians and installation personnel, the guide enables safe server mobility enhancement for rack and tower systems.

📄 Preview PAGE OF 14

Page 1 Text Content

F6585am0.fm Page 1 Friday, July 9, 2004 11:08 AM .d ll.c | s t.d ll.c

About Cautions CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

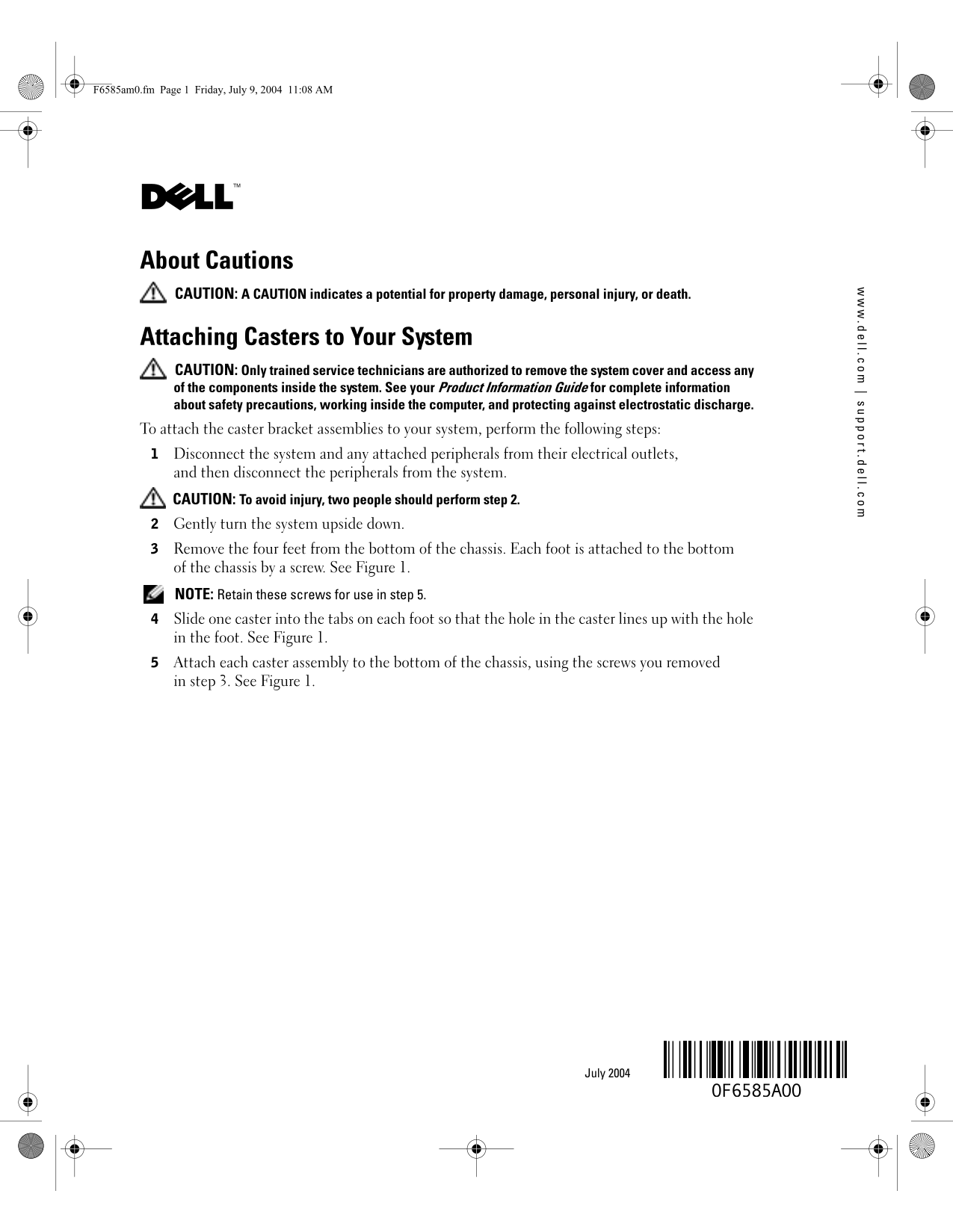

Attaching Casters to Your System CAUTION: Only trained service technicians are authorized to remove the system cover and access any of the components inside the system. See your Product Information Guide for complete information about safety precautions, working inside the computer, and protecting against electrostatic discharge. To attach the caster bracket assemblies to your system, perform the following steps: Disconnect the system and any attached peripherals from their electrical outlets, and then disconnect the peripherals from the system. CAUTION: To avoid injury, two people should perform step 2. Gently turn the system upside down. Remove the four feet from the bottom of the chassis. Each foot is attached to the bottom of the chassis by a screw. See Figure 1. NOTE: Retain these screws for use in step 5. Slide one caster into the tabs on each foot so that the hole in the caster lines up with the hole in the foot. See Figure 1. Attach each caster assembly to the bottom of the chassis, using the screws you removed in step 3. See Figure 1.
