Installing Rack Stabilizer Feet for Dell Systems Owner's Manual
Summary
This installation guide covers Dell rack stabilizer feet for server rack cabinets, providing safety warnings and step-by-step installation procedures. It details front and side stabilizer foot installation, required tools including 12mm wrenches, and weight distribution requirements for rack stability. The guide emphasizes that stabilizer feet must be installed before loading equipment to prevent rack tipping. Targeted at data center facility technicians installing Dell server racks.

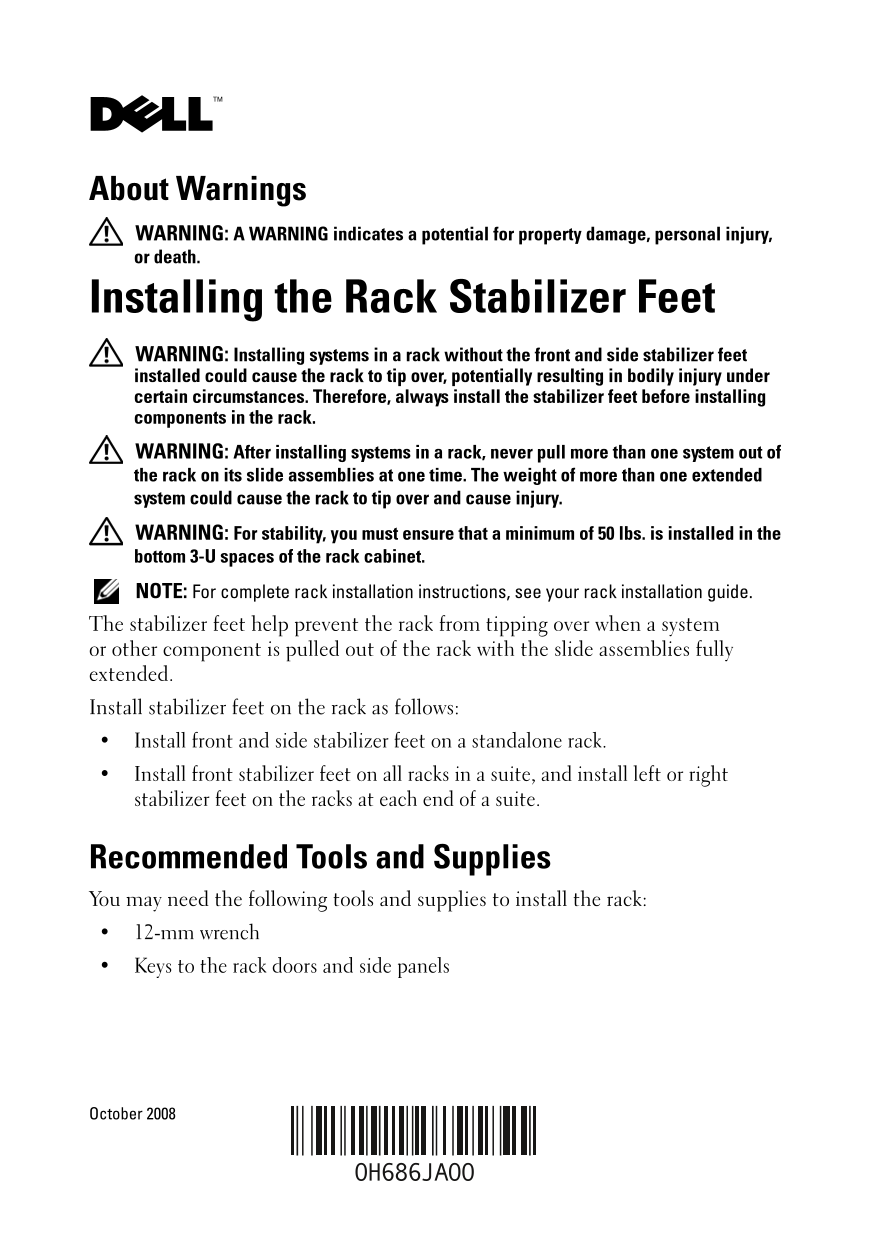

Page 1 Text Content
About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Installing the Rack Stabilizer Feet WARNING: Installing systems in a rack without the front and side stabilizer feet installed could cause the rack to tip over, potentially resulting in bodily injury under certain circumstances. Therefore, always install the stabilizer feet before installing components in the rack. WARNING: After installing systems in a rack, never pull more than one system out of the rack on its slide assemblies at one time. The weight of more than one extended system could cause the rack to tip over and cause injury. WARNING: For stability, you must ensure that a minimum of 50 lbs. is installed in the bottom 3-U spaces of the rack cabinet. NOTE: For complete rack installation instructions, see your rack installation guide. The stabilizer feet help prevent the rack from tipping over when a system or other component is pulled out of the rack with the slide assemblies fully extended. Install stabilizer feet on the rack as follows: Install front and side stabilizer feet on a standalone rack. Install front stabilizer feet on all racks in a suite, and install left or right stabilizer feet on the racks at each end of a suite.
Recommended Tools and Supplies You may need the following tools and supplies to install the rack: 12-mm wrench Keys to the rack doors and side panels
October 2008
Page Summary Contents For Installing Rack Stabilizer Feet for Dell Systems Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 20 |
| File Size | 898.37 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Why must stabilizer feet be installed before adding components?
Installing systems without these feet could cause the rack to tip over, creating a bodily injury risk.
What is the minimum weight required for rack stability?
A minimum of 50 lbs must be placed in the bottom 3-U spaces of the rack cabinet.
What tools are recommended for installing the stabilizers?
You will need a 12-mm wrench and keys to access the rack doors and side panels.
