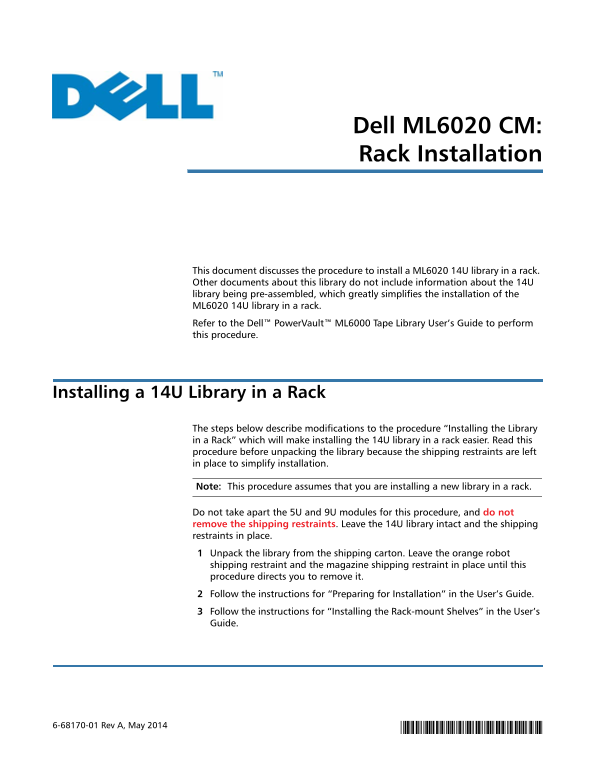

Dell ML6020 CM: Rack Installation
This document discusses the procedure to install a ML6020 14U library in a rack. Other documents about this library do not include information about the 14U library being pre-assembled, which greatly simplifies the installation of the ML6020 14U library in a rack. Refer to the Dell™ Power Vault™ ML6000 Tape Library User’s Guide to perform this procedure.
Installing a 14U Library in a Rack
The steps below describe modifications to the procedure “Installing the Library in a Rack” which will make installing the 14U library in a rack easier. Read this procedure before unpacking the library because the shipping restraints are left in place to simplify installation.
Note: This procedure assumes that you are installing a new library in a rack.
Do not take apart the 5U and 9U modules for this procedure, and do not remove the shipping restraints. Leave the 14U library intact and the shipping restraints in place. Unpack the library from the shipping carton. Leave the orange robot shipping restraint and the magazine shipping restraint in place until this procedure directs you to remove it. Follow the instructions for “Preparing for Installation” in the User’s Guide. Follow the instructions for “Installing the Rack-mount Shelves” in the User’s Guide.
6-68170-01 Rev A, May 2014
